How do I choose a solar power system that can meet my requirements?
1) Home use (5kw and 10kw)
In a family of about 3 bedrooms, more people choose 5KW and 10KW models.If you want to choose a high-quality system, we suggest to choose the IGBT high-end inverter, and use it more safely.
2) School and office (1.5kw-5kw) Angola, Senegal, Zimbabwe installation
3) Farm use (three-phase 10KW-20KW) Thailand and Australia installation
4) Hospital project (15kw) Somalia, Kenya installation
5) Government office building (80kw) Kenya Konza City installation
6) Factory project (100kw) Haiti installation
7) Airport project (60KW-200KW) Indonesia, Papua New Guinea installation
8) Large shopping mall (150KW) Iraq installation
9) Village power generation (300kw) Zambia installation
Based on 12 years of actual installation experience, we can definitely provide a solar power system that will satisfy you.
Who we are?
Tanfon is TOP10 solar power system project factory in china
What we do?
Expert of home system,industrial solar system since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases
How we do ?
Tanfon solar--German technology, Chinese price, Global service
After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.
Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation

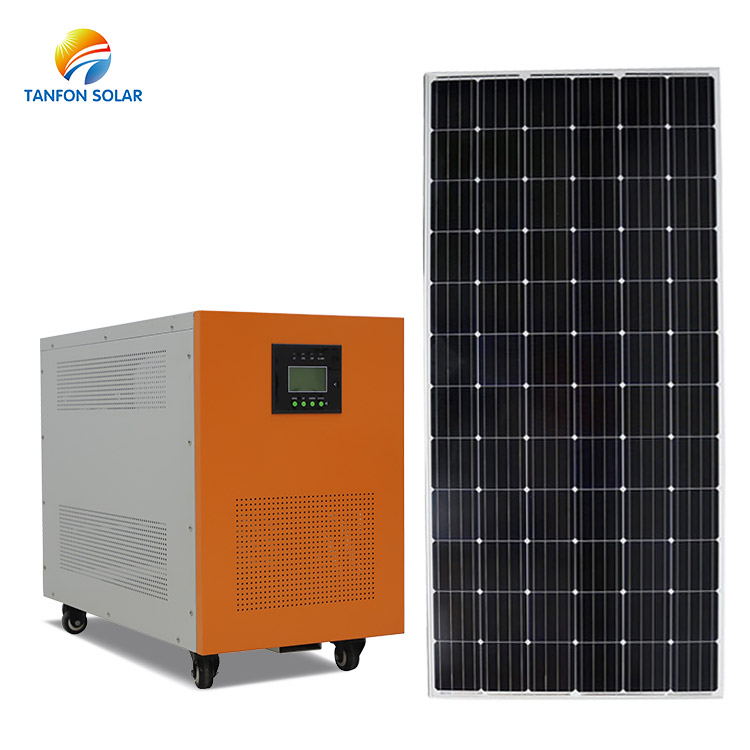

Solar Panel (Quantity: 12 pieces)
FS350W mono solar power system panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.25A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
Solar power system PV combiner (Quantity: 1 piece)
Model: H4T-96v Multiple PV strings inputs
Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Product Size: 360*345*145mm
IGBT Solar power system Inverter (Quantity: 1 piece)
Inverter power: TF5kw/96v
MPPT Controller model: 96v/60A, AC charger: 15-20A
Bypass function with AC charger
Double protection, easy after sales service
O/P: 110V, 220VAC
Solar Battery (Quantity: 8 pieces)
Full sealed Solar power system gel battery,
Service life: 6-8 years ,
Solar power system Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
solar power system Cables (Quantity: 1 set)
7pcs 32mm2*35CM battery cable
2pcs 50mm2*1M battery cable
4mm2 PV cable 100M
Terminals and MC4
If this off grid 5000 watt solar power system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you
|Solar Power system projects:|
|Why TANFON is your right Choice?|
Each set solar power system has tested by power-off test of 100 times per hour.
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
