2000watt Residential hybrid system use 2kva wind power generator

 2kw off grid solar wind hybrid system home wind turbine kit   Factory introduce: Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, sola

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Service Center

MOQ: 1 set,Accpet OEM &ODM

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

 2kw off grid solar wind hybrid system home wind turbine kit



Factory introduce:

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar wind hybrid system, solar and wind energy.
For wind system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.

Why Choose Tanfon?

Quality:

Service:

Efficiency:

TANFON WSH2KW hybrid power system: 500w solar + 1000w wind

Solar panel power: 1000W + Wind turbine kit: 1000W

Suitable for daily power consumption: 4.8-9KWH    Allowable Max Loads power: 2KW

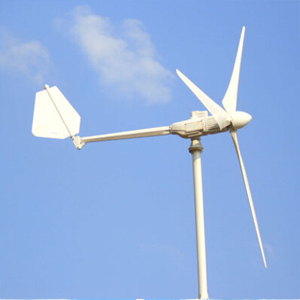

Home wind turbine kit (Qty: 1pc)

home wind turbine kit

Model FD-1000
Rated power 2KW
Starting wind speed 3m/s
Working wind spped 3-20m/s
Rated wind speed 12.5m/s
Security wind speed 40m/s
Rated DC voltage 48V
Rated speed 650r/m
Rotor diameter 2200mm
Protection Electromagnetic torque control and electricity brake
Type 3phases permanent magnetism synchronization generator
Blade material Extra-strong fiber glass
Packing material Plywood box and foam material
Generator weight(kg) 30KG

Free stand tower

Height: 5m tower   Weight: 65KG

Wind turbine generator pole, it helps fasten wind generator in safe altitude. Use steel material with rust prevention.

Easy to install

home wind turbine kit pole

Off grid solar wind hybrid system

Solar Panel power(Qty: 2pcs)

FS250W mono solar panel(poly optional)

Vmp: 30V    Voc: 36V      Imp: 8.67A

Size: 1640*992*40mm    25 years life time  (CE RoHS ISO)

Coated steel Glass: 3.2mm Tem pered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%

A Grade SUNTECH cells of high efficiency 20%

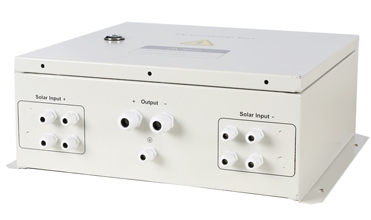

Solar power PV combiner (Qty: 1pc)

Model: H4T-48v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Off grid solar wind hybrid system 4 inputs PV combiner

Off grid solar wind hybrid system controller

Off grid solar wind hybrid system controller (QTY: 1pc)

Input 500W solar power + 1000W wind power

DC 48V input; MPPT intelligent control

Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection.

Off grid solar wind hybrid system Battery (QTY: 4pcs)

Capacity: 12V/150AH, full sealed wind power gel battery

Service life: 6-8 years  Size: 483*170*219mm

Connect way: 4pcs connect in series connect to inverter

200Ah gel battery for Off grid solar wind hybrid system

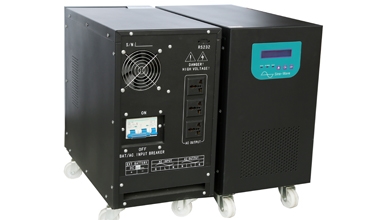

Off grid solar wind hybrid inverter

Off grid solar wind hybrid system inverter (QTY: 1pc)

Rate output Power: 2KW pure sine wave

DC: 48v; AC: 110v or 220v

With AC charger build-in Protection against overload, short circuit, discharger, etc.

Double protection, import MOS tube and optocoupler

Off grid solar wind hybrid system Cables (QTY: 1 set)

1) 4pcs 16mm2*35CM battery cable connect

    2pcs 16mm2*1M battery cable connect

2) 4mm2 PV cable 50M, 6mm2 wind cable 50M

3) terminals and MC4

Off grid solar wind hybrid system cables
solar panel mounting rack

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Home wind turbine kits

 wind turbine kits

Home Wind Turbine Kit Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

Solar Panel Power

solar panel

What's more?

Coated tempered glass replace previous tempered glass, power can improve 5 to 10 watts.

Coated glass can effectively reflect the infrared, Reduce the working temperature of the component, thus reducing the power loss of the component and reducing the influence of the high temperature on the service life of the component raw material. At the same time a large number of UV absorption, Reduce UV damage in EVA and backplane raw materials. reduce UV on the EVA, the backplane of the raw material damage.

Solar PV panel characteristics
  Module Type   FS250-24v
  Maximum power at STC(Pmax)    250W
  Optimum operating voltage(Vmp)   30V
  Optimum operating current(Imp)   8.33A
  Open-circuit voltage(Voc)   36V
  Short-circuit current(Isc)   9.68A
  Short-circuit current temperature coefficient   (0.065±0.015)%/℃
  Open-circuit voltage temperature coefficient     -(80±10)mV/℃
  Peak power temperature coefficient   -(0.5±0.05)%/℃
  NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)      47±2℃
  Operating temperature      -40℃ to 85℃
  Maximum system voltage   600V DC
  Power tolerance   ±3%
  STC   Irradiance 1000W/m2, Module temperature 25℃, AM=1.5



TANFON Off Grid Solar Wind Hybrid System Project

Tanfon  5kw off grid Solar Wind hybrid system installation in Philipplines (3kw home wind turbine kit and 2kw solar panel power system for home use)

Off grid solar wind hybrid system
Off grid solar wind hybrid system package

home wind turbine kit

TANFON Company

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar wind hybrid system, solar and wind energy.
For solar wind hybrid system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.

Off grid solar wind hybrid system company

FAQ

Q1: If I want to buy a Off grid solar wind hybrid system, what details I need pay attention to?

A: See if the wind speed can reach the starting speed of the home wind turbine kit; the total power loads you want to carry.

Q2: For home use, which one is better?

A: Normally we sell 3kw & 5kw off grid solar wind hybrid system for home use.

Q3: What kind of tower can i choose?

A: Home Wind turbine kit Guy cable tower & Stand Alone Tower optional

Q4: How many days for delivery?

A: The 1kw off grid solar wind hybrid system normally for 10days. quantity order need about 25days.

Q5: What kind of package?

A: Off grid Solar wind hybrid system products, Export Standard Packing: suitable for tough handing and transport

Q6: About the payment?

A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)

    30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C

Certification supports us

Off grid solar wind hybrid system certificate

We accept OEM and small trial orders of solar wind hybrid system, residential wind turbine, contacting with us now for more information. All inquiries will be replied with in 24 hours.

Quality is our culture, with us, your business in safe, your money in safe.
