TANFON advantages: 1. The most competitive price in the whole network 2. 12 years of installation experience, with global service centers Solar power generator advantages: 1. Small size, light weight, environmental protection, n
Place Of Origin: Guangdong,China
BrandName: TANFON SOLAR
MOQ: 10sets
industry leading technology
uninterruptible power supply
online service
TANFON advantages:
1. The most competitive price in the whole network
2. 12 years of installation experience, with global service centers

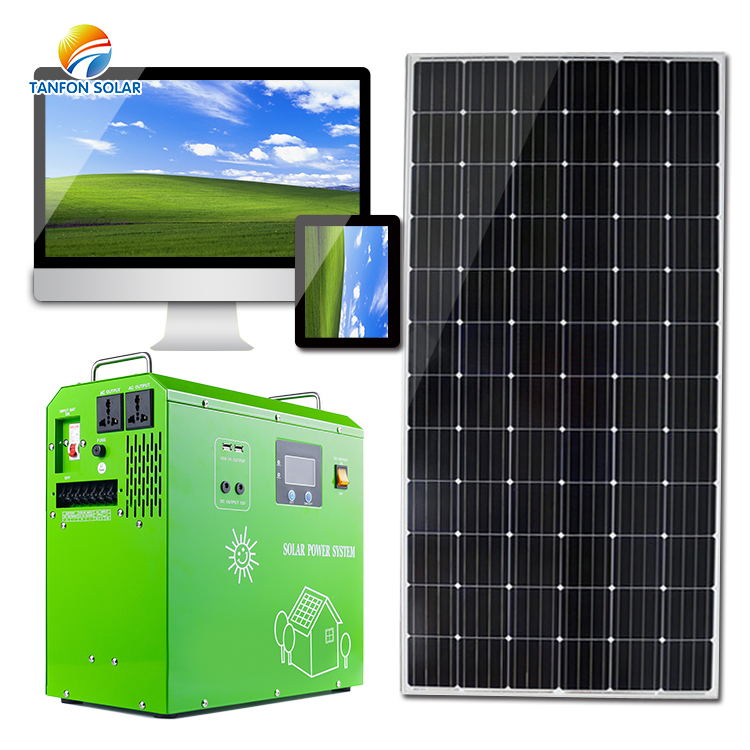

Solar power generator advantages:
1. Small size, light weight, environmental protection, no noise, maintenance-free, portable.
2. Gel battery and lithium battery optional
3. Universal socket, suitable for all countries
4. Easy to install, even an 80-years elder can install well.
5.Everything in 1 solar generator MPPT controller,pure sine wave inverter,battery All in one.portable plug and play
6.For camping/boating/RV/Home use
Features and function
1.for light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and the other house appliance
2.Rate power 500w-3kw,pure sine wave output
3.MPPT solar charge controller,15A grid charger,with Gel battery
4.The mains supply mode/energy-saving mode/battery mode can be set for flexible
5.Convenient and practical 5VDC-USB output port and 12VDC output port
6.Overcharge protechon and overdischarge protection for a longer battery life
7.Safe and reliable with intelligent exhaust fan control
8.Overall automatic protection and alarms induding AC output overload protection .
Model | SCL-1000W |
Battery Voltage | 24V |
Inverter | |
Rated power | 1500VA/1000W |
Input Voltage Range | 140-275V |
Input Frequency | 45-65HZ |
Output Voltage | 220VAC |
Output Frequency | 50/60HZ |
Output Wave | Sine Wave |
Speficifation Of Built-in Lifepo4 Battery | 24V50AH |
Communication | RS232 |
Working model | 01:City power priority 02:Energy Saving mode 03:Solar Power Priority |
Solar Input | |
Max.PV power | 720W |
Max.PV voltage | ≤50VDC |
Range of charging Voltage | 20-50VDC |
Rated charge current | 30A |
Voltage For Overcharge Protection | 28.4VDC |
Voltage For Overcharge Recovery | 28VDC |
Voltage For Floating Charge | 27.4VDC |
DC Output | |
Voltage For High Voltage Protection | 32VDC |
High Voltage Recovery Voltage | 30.2VDC |
Low Voltage Recovery Voltage | 25.2VDC |
Low Voltage Protection Voltage | 22VDC |
5V DC USB Output | 2pcs*2A |
12V DC Output Ports | 2pcs*2A |
PHYSICAL | |
Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan |
Display | Digital LCD |
Electricity Charging | YES |
Extermal Size:W*D*H(mm) | 475*455*245mm |
Package Size:W*D*H(mm) | 515*495*285mm |
G.W.(Gross Weight) | 28kg |
After sales service:
All inverters are free to send new spare boards within the warranty. For more services, please contact our team
