1000 watt solar power kit battery powered generator Solar power kit ( Solar power inverter combined PV controller & battery ) Solar power kit battery powered generator featu
Place Of Origin: Foshan, Guangdong Province, China
BrandName: TANFON SOLAR
MOQ: 1 set
industry leading technology
uninterruptible power supply
online service
| Solar power kit ( Solar power inverter combined PV controller & battery ) |
| Solar power kit battery powered generator features |
| 1. Solar power kit controller and inverter with AGM free maintenance battery together |
| 2. Completely controlled by CPU. |
| 3. Inverter use copper transformer, pure sine wave output. |
| 4. Have 5V, 12V DC output. |
| 5. Two LCD displays, clearly to know the status. |
| 6. Have bypass function and AC charger (UPS function) |
| 7. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection, etc. |
Capacity:
Portable DC solar power kit 4.5Ah to 55Ah
portable DC&AC solar power kit 100w to 5000w
inverter controller and battery all in one box max capacity can be designed 5000w.
| 1000W solar power kit inverter controller battery hybrid box | ||
| Model | SCB1000W | |
| Rated power(W) | 1000W | |
| Rated DC voltage(V) | 24V | |
| Line input | Input voltage(V) | 165-275V |
| Charge current(A) | 42A | |
| Inverter output | AC Output voltage(V) | 220VAC±5% |
| DC output voltage(V) | 5V&12V | |
| Output frequency | 50Hz/60Hz±1% | |
| Wave form | Pure Sine Wave, THD<4%(Full Load) | |
| Solar input | Maximum voltage(V) | 44V |
| Rated power(Wp) | 1000Wp | |
| Charge current(A) | 20A | |
| MPPT range(V) | 24V-50V | |
| Charging efficiency | 90%-95%, Peak on 97% | |
| Battery | Capacity(AH) | 55AH*2pcs or 55AH*4pcs |
| Over charge protective voltage(V) | 28.6V | |
| Over charge recover voltage(V) | 27.4V | |
| Over discharge alarm voltage(V) | 40V | |
| Over discharge recover voltage of battery(V) | 25V | |
| other | Voltage drop between solar module and battery(V) | ≤0.3V |
| Voltage drop between loads and battery(V) | ≤0.15V | |
| Start speed of cooling fan | Have | |
| Environment Humidity | 0-90% Maximum，non-condensable | |
| Protective Functions | Protection against anti-charge at night；Battery over charge/over discharge protection; Joint-reversed of solar modules | |
| Control method | MPPT | |
| Product Size :D*W*H(mm) | 423*260*453mm | |
| Package size | 520*370*520mm | |
| N.W./G.W.(kg) | 46/48mm | |

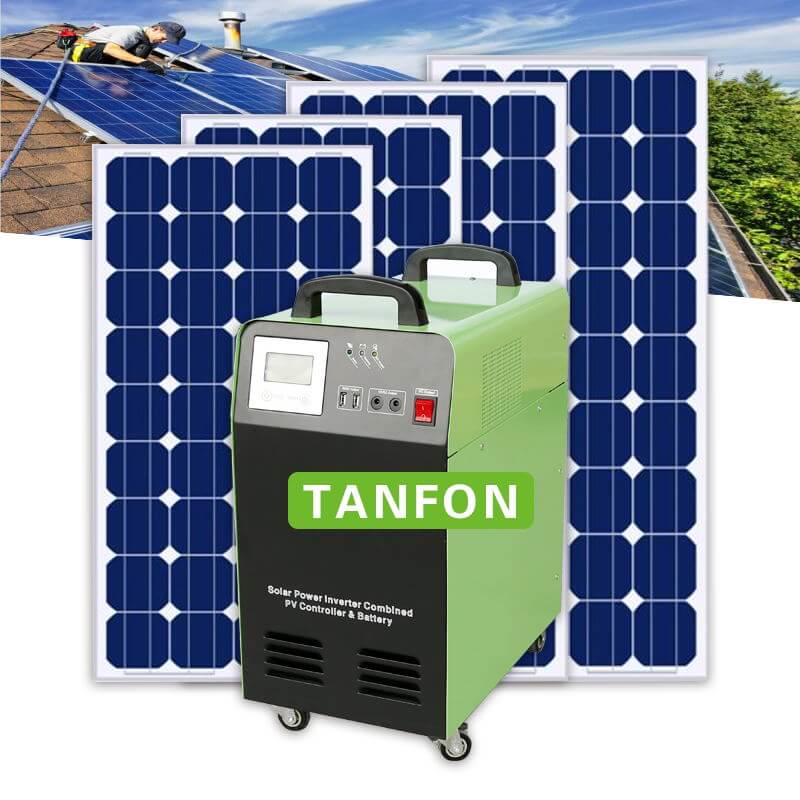

| All-in-one solar power kit system-ASP1000w | |
| System Basic Information |
solar panel rated output power: 500W Suitable for daily power consumption : >6KWH Allowable max loads power : 1000W |
 |
Solar Panel (Quantity: 2 pieces) FS250W mono solar panel (poly optional) Vmp: 34.4V Voc: 43.2V Imp: 7.27A Size: 1640*992*35mm Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%. 25 years life time (CE TUV) Ship free one for service |
|
Solar Panel Rack (Quantity: 1 set) Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel |
 |
 |

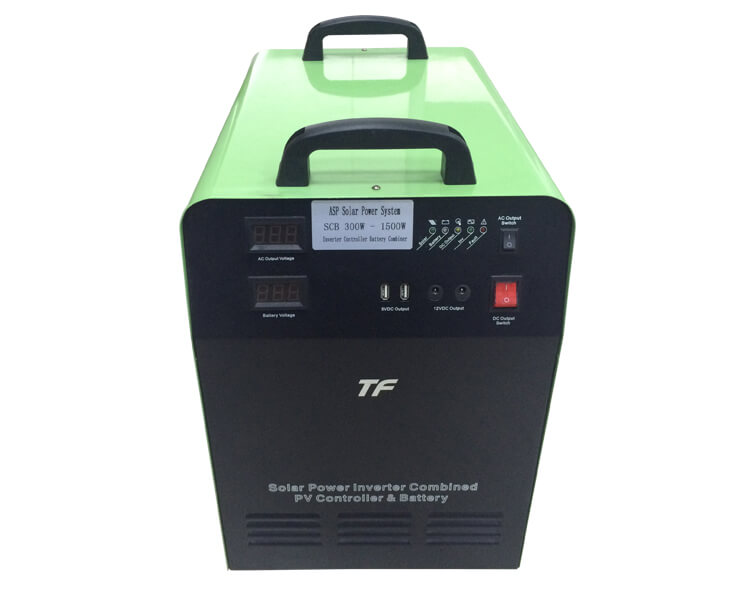

Solar power kit battery generator (QTY: 1pc) Model: SCB1000W/24V Inverter: 1KW/24V(pure sine wave) LCD display, With AC charger built in AC Output: 110v, 220v, 230v, 240v (optional) Output: 5V and 12V (led and mobile charge) MPPT controller: 30A/24v Over charge protective voltage: 28.6v Constant charge voltage: 27v Build-in Gel battery: 12V/55AH (2pcs) Max DC charge: 29v AGM free maintenance valve control Size:513*310*493mm |
|
Cables (Quantity: 1 set) 4mm2 PV cable 50M Terminals and MC4 |
 |
| Solar power kit application |
Home lighting, fans working, camping lighting, outdoor party lighting, ect.
Portable solar DC power system, portable solar DC&AC power system, inverter controller and battery all in one box
| Why Choose Tanfon? |
Quality:
Service:
Efficiency:
| Solar power kit Feedback |
Want to get more feedbacks from our customers using the solar power kit, please contact to us.
| Tanfon Factory Solar power kit battery powered generator producing pictures |
3000 sets solar power kit battery powered generator order producing
| Solar power kit Package |
Tanfon Inverter Factory in Foshan, welcome to visit our factory. (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)
| Solar power kit battery powered generator 40' container loading |
| Solar battery generator Certificate |
| Solar Power Kit FAQ |
|
Q1. Are you factory? A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan. |
|
Q2. How long is solar power kit 1000 watt solar generator products warranty? A2.YES, All products are at least 2 years warranty. |
|
Q3.What is the shipping way of solar power kit 1000 watt solar generator? A3. Ship by sea. |
|
Q4. What is the payment method? A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union / MoneyGram /Alibaba can also be used. |
|
Q5.Can we design packaing? A5.YES.We can customer's own packing |
|
Q6.Can we add our logo on products? A6.YES.you can add your logo on products. |
|
Q7.Can we customize product? A7.YES.OEM&ODM. |
|
Q8.what is TANFON solar power kit 1000 watt solar generator after sales service A9.during the warranty, ship free PCB by DHL or FEDEX. |
|
Q9.what is your trade Asusurance A10:100% product quality protection 100% product on time shipment protection 100% payment protection for your covered amount If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction! |
