Top 10 Solar Project Solution Factory In China
solar panel(QTY: 260 pieces), pure sine wave Inverter 100KW/360VDC input(QTY: 1 piece), PV combiner(QTY: 2 pieces), solar controller(QTY: 2 pieces), Solar Battery(QTY: 180 pieces)
Place Of Origin: Foshan, Guangdong Province, China
BrandName: TANFON SOLAR
MOQ: 1 set
Certificate: ISO, ETL, TUV, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
Solar Power System Three Phase Output Complete Kit Connection Diagram
| Product Description |
How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.
What's the difference between off grid and on grid solar power system?
Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.
On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.
| Product Details |
|
|
Solar Panel (Quantity: 260 pieces) FS380W mono solar panel(poly optional) Vmp: 38.39V Voc: 47.13V Imp: 9.75A Size: 1956*992*40mm Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS) |
|

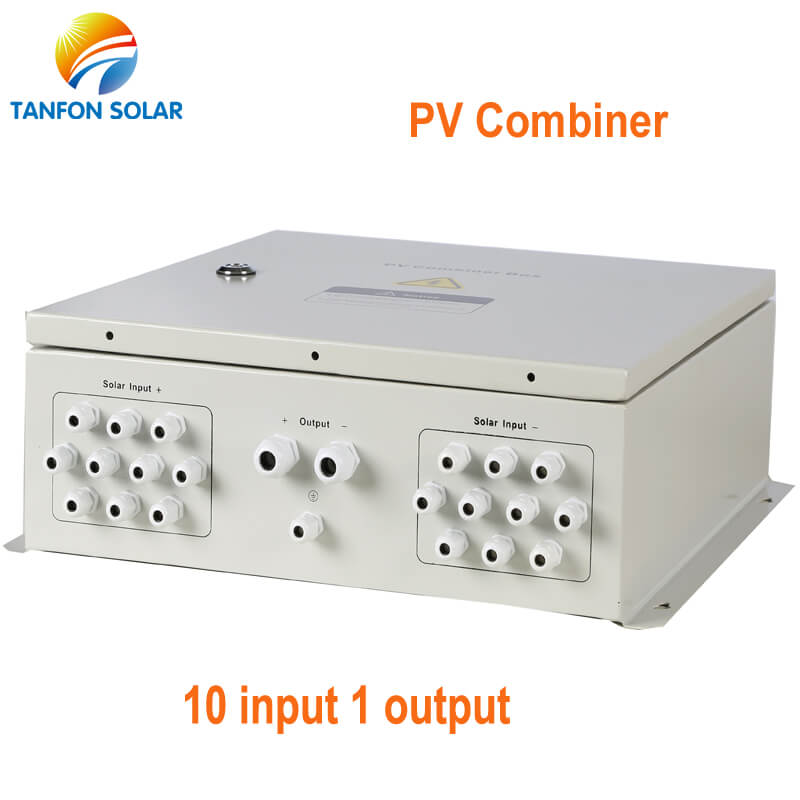

PV combiner (Quantity: 2 pieces) Model: H10T-360v Multiple PV strings inputs Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect Wide range of DC input voltage Reliable thunderstorm & surge protection |
|
|
|
Solar Controller (Quantity: 2 pieces) MPPT controller model: 360v/150A Charging efficiency: 90%-95%, Charging mode, intelligent control. Temperature compensation, Various protection functions |
|
Solar Battery (Quantity: 180 pieces) Capacity: 2V/1000AH Full sealed Solar power gel battery, Service life: 6-8 years , Size: 479*175*338mm |
|
|
|
Solar Inverter (Quantity: 1 piece) Power Inverter: 100kw DC input: 360v Output: 380v 220v 50Hz （3phase ） Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection |
|
Solar Panel Rack (Quantity: 1 set) Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel |
|
 |
Cables (Quantity: 1 set) 25mm2 battery cable 180pcs 4mm2 PV cable 800M battery terminals and MC4 System cable 25mm2 200M |
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.
| Solar Power System Projects |
check here to know more about 100kw Industrial power solution solar system
Why Choose Tanfon?
Quality:
Each set solar power system has tested by power-off test of 100 times per hour.
Service:
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Efficiency:
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
| Tanfon Factory Picture |
| Solar Products FAQ |
|
Q: What can be included for this system from TANFON? A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc. |
|
Q: Is the system solution always the same? Can I customize one? A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration. |
|
Q: Who arranges the shipping? A: We could help you arrange the shipment, we have good service forwarder in Guangzhou. |
|
Q: What is the lifetime of the solar power system? A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years. |
|
Q: What can Tanfon supply? A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service. |
|
Q:Will TANFON go to Global Exhibition? A:we hope tanfon team also can meet with you in your country!
|
