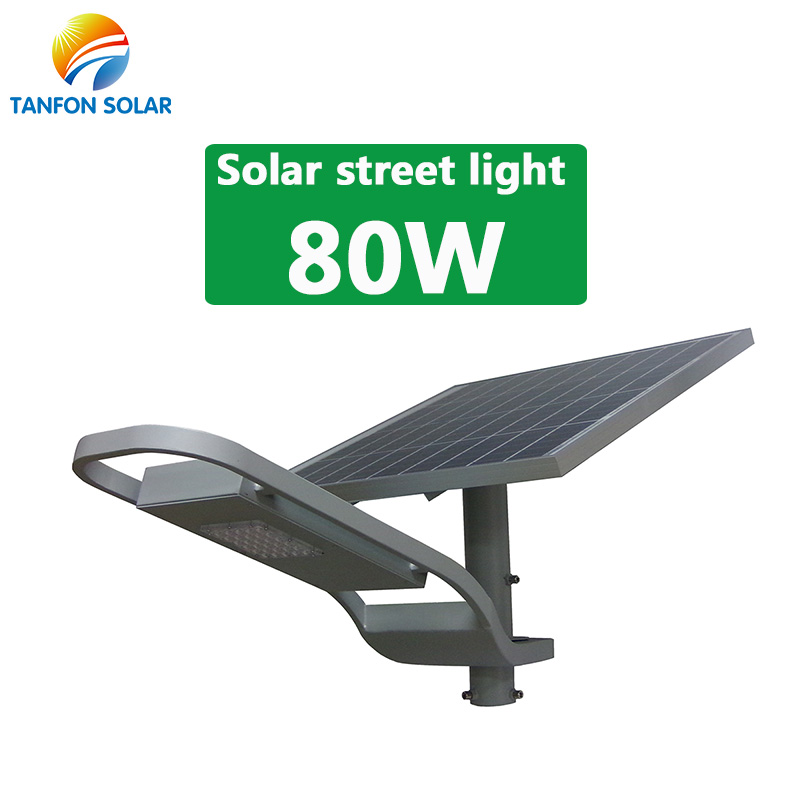

Solar panel

100W polycrystalline solar panel

Vmp:17.2V  Imp:5.8A  Voc:21.6V

Open current (A):6.5A   Cell Efficiency(%):18%

Size of module(mm):1200*540*30 Weight per piece(kg):13.5KG

Warranty:10years product warranty and 25years 80% of power

 LED Lamp

Power:80W LED   BridgeLux LED chip

Lumen (LM): 8000-9600LM Input voltage:DC24V

LED color temperature:3000k-7000k Dimension:425*305*80mm       Drive power efficiency:＞0.95  Long Life span: up to 60,000 hours

Storage temperature:﹣40℃~﹢60℃

Warranty:3years product warranty and 10years 80% of power

24V/72AH Lithium battery, 24V10A controller fix inside the battery box, anti-theft design.

Battery: Standard charge voltage:25.2V

Discharging cut off voltage:18V

Operating temperature: Charge 0~60°C Discharge -20~60°C

Max.charge current:0.5C     Max.discharge current:1C

Controller: Equalization voltage(10minutes):29.6V

Boost voltage(10minutes):28.8V Float voltage:27.2V

Normal voltage:12V/24V,automatic recognition

Pole

Total high:8 meters  Material: high quality galvanized steel

Top diameter:60mm    Bottom diameter:160mm

Wall thickness:3.5mm   Material:Q235

Weight:80kg    With single arm.

With power coating.  With solar panel bracket

With 300mmX300mmX16mm base plate.

Q:Are you factory or trading company?

A: We have 3000 sqm modern factory, with 4 production lines. We have 40 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.

Q.How long does the solar power can be stored of solar street lighting system?

A: Solar power of the integrated solar panel street lights can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. How does your light work?

A: Operating mode: Light control + Human Sensing control. Controller uses Motion sensor. people come full power, people leave 30% power.

Q: Do you supply pole?

A: Yes, we supply you complete solar street lighting system with pole. Well, you also can buy the pole in your local place.

Q: Can your solar street lighting system be installed by the sea?

A: Yes, of course. The whole hot-dip galvanized lamp pole is used for good anti-corrosion and windproof performance.

Q. What is the mounting height?

A: We suggest thesolar powered led street lights of 20W, 30W, 40W for 3-5m, the solar powered led street lights of 50W, 60W, 80W for 6-8m.
