solar street light system all in one design
solar street light system all in one design

solar street light lithium battery all in one design

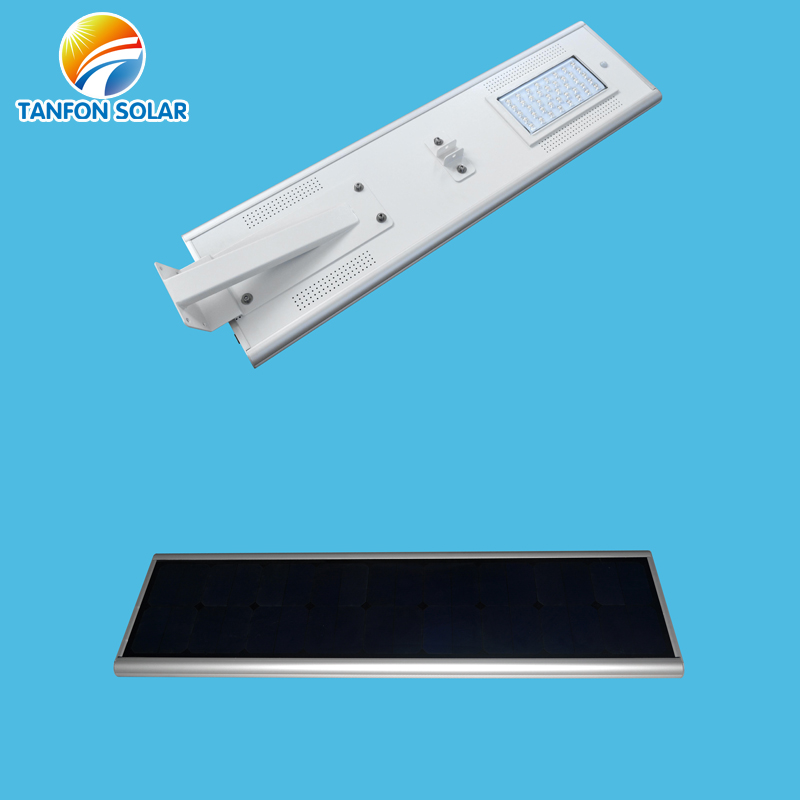

Tanfon 8W upto 100W solar street light system / Garden light solar power Integration design (panel+battery+LED lamp all in one box)

Place Of Origin: Foshan, Guangdong Province, China


MOQ: 1 set

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

solar street light lithium battery all in one design

 street light with solar panel and battery


* Solar powered street lights are a very good example on what can be done with solar energy.

* A growing number of solar street lighting projects are running in Africa, Asia and the Middle East.

* Some European and US cities are currently running pilot projects.

* The concept is straightforward and we shall see more countries migrating this way.

* well chosen, solar street lights are cost-effective, cost-saving and reliable.

Our company Advantages:
Expert of solar system ,solar street light since 2007.
Engineer Went to 32 countries install 10000+ successful solar projects
New Technology,Phone to control your all solar
Contact us now for a solar street light quote


Basic specification


TANFON A-SLS60W solar street/Garden Light system

Solar panel:

85W/18V Monocrystalline sillicon solar panel, waterproof resign package. Sillicon chip import from Germany. PV efficiency>19%
Solderability and tension ensured by quality printing paste

LED Lamp:

80W High Lumens
Lumen(LM): 6500-7000
Chip import from USA
LED Chip: High Brightness Bridgelux, high efficiency, low loss, luminous flux 110lm/w
PHILIPS and CREE for optional


44AH High efficiency Lithium Battery
Long life cycle, >2000 times deep cycle, 8 times of lead acid battery
No memory effect, highly efficient charge anytime. no reduction of capacity
low self-discharge rate <3% monthly

MPPT Controller:

Multicrest MPPT tech, adapts to the solar panel which is under shadow or partly damaged
Auto identify day/night
Very low dormancy loss: 0.06W

Colour Temperature


Discharge time

Over 36 hours, considering 3-5 rainy days

Working temperature

-30~+60 degrees

Waterproof rate


Mounting height

Suggest 8M, install distance: 25m to 30 m


 3 years



solar street light with battery backup


Tanfon 8W-100W solar street light system/Garden light is Integration design (panel+battery+LED lamp all in one box)



1) All in one intelligent design

2) Long lighting time up to 36-48 hours

3) Energy Saving LED garden/street lights

4) Different Motion sensor with timer

5) Pole optional, easy to install

6) Have photo sensor turn on at nite, turn off daytime, also can according customer design the working time


Tanfon Sercive

Bangladesn solar street light system project


installation from our clients


solar led street light 40w

tanfon project solar street light in  Philippines


solar led street light 60w



Our Factory

Address:One of the third floor, NO.3 Building, Lianfeng industrial zone, zhangcha, Chancheng District, Foshan city, Guang dong, China



Tanfon solar street light (all in one design ) have 3 years warranty, during the warranty, have any problem, our factory promise ship the free parts by DHL .


Customers visiting our factory

solar street light factory

Tanfon Solar LED street light SGS Inspection



Q. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q.How long does the solar power can be stored?

A:Solar power of the integrated solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.

Q: How to Choose the System Voltage 12V or 24V or for normal street Light ?

A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .

Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

Q. What is the advantage of the battery?

A: Our integrated solar street light adopts long life lithium battery for storing energy, charging temperature at day time is between: 0℃-60,when temperature goes lower than 0,the control system will stop automatically to protect the batteries, and it will revive to charge the batteries while temperature goes higher than 0.Discharging temperature at night is between:-20-60, any ambient beyond it will bring damage to the batteries.

Q. How to control the luminance of the solar street light?

A:Our solar street light adopts Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.

Q. What is the mounting height?

A: We suggest the solar street light of 20W, 30W, 40W for 3-5m, the solar street light of 50W, 60W, 80W for 6-8m.

Q. What is the distance?

A: For the distance, we suggest the solar street light of 20W, 30W, 40W for 10-15m, the solar street light of 50W, 60W, 80W for 20-25m.


Packaging & Shipping

 solar street light li-ion battery

Solar Street Light Container Loading to Ghana



solar street led light system CE and RoHS certificate

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
