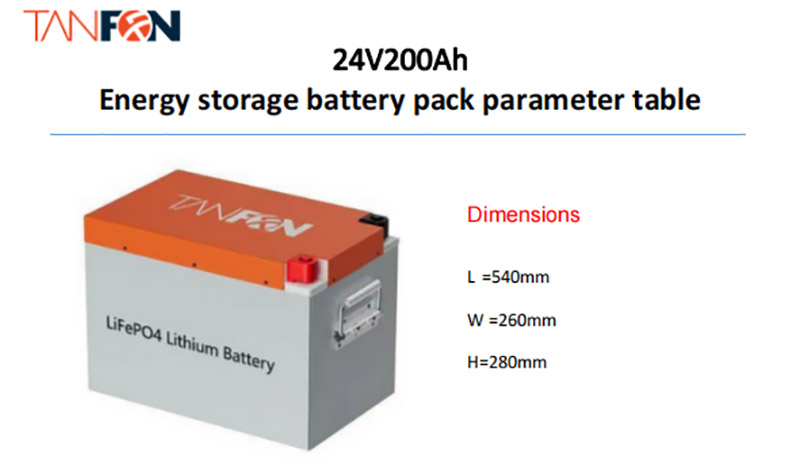

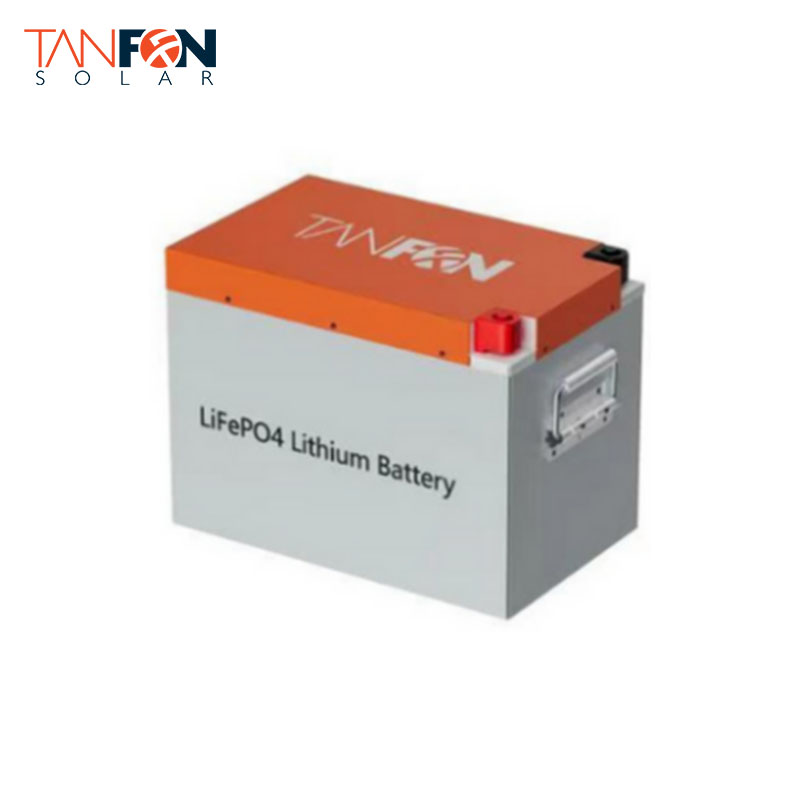

24V 200Ah Solar energy storage battery pack 24V 200Ah Solar energy storage battery pack Technical parameters of energy storage battery system 1.single cell Parameters Project Indicators Batte
Place Of Origin: Foshan, Guangdong Province, China
BrandName: Tanfon Solar
MOQ: 1 set,Accpet OEM &ODM
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
| Project | Indicators | ||
| Battery execution standard | GB/T36276-2018 | ||
| Model | 12229265-50000mAh(cell) | ||
| Typeofcore | LFP | ||
| Unitratedcapacity | 50Ah | ||
| Nominalcellvoltage | 3.2V | ||
| Singlecellweight | 1400g±5 | ||
| Self-discharge |
<15%(25±2C,28DAY) <12%(55±2C,7DAY) |
||
| Internalresistance | ≤8mΩ(50%SOC) | ||
| Singlecapacitydeviation(%) | <3% | ||
| Cyclelifeofmonomers | ≥1000(25C,0.5C/1C,2.2V-3.6V,80%DOD) |
| Project | Indicators | ||
| Batteryvoltagerange |
17.6V~29.2V (cell2.20~3.65V) |
||
| Ratedvoltage/Ratedcapacity | 25.6V/200AH/5.12wh | ||
| Deliverydetectioncapacity | >60% | ||
| Combinationmode | 8s4p | ||
|
Allowable temperature of battery pack |
Discharge：-20C~60C Charging：0C-50C |
||
| Capacitydeviation | <5% | ||
| Internalresistancedeviation | <3mΩ | ||
| Temperaturedifferenceofbatterypack | <15C | ||
| Self-discharge |
<8%(25±2C 30%~70%SOC28DAY) |
||
| Waterproofanddustproofgrade | IP65 | ||
| Batterycasesize | 540*260*280cm | ||
| Batterycasestatus | Ironbox | ||
| Totalbatterypack | 50kg±0.5kg | ||
