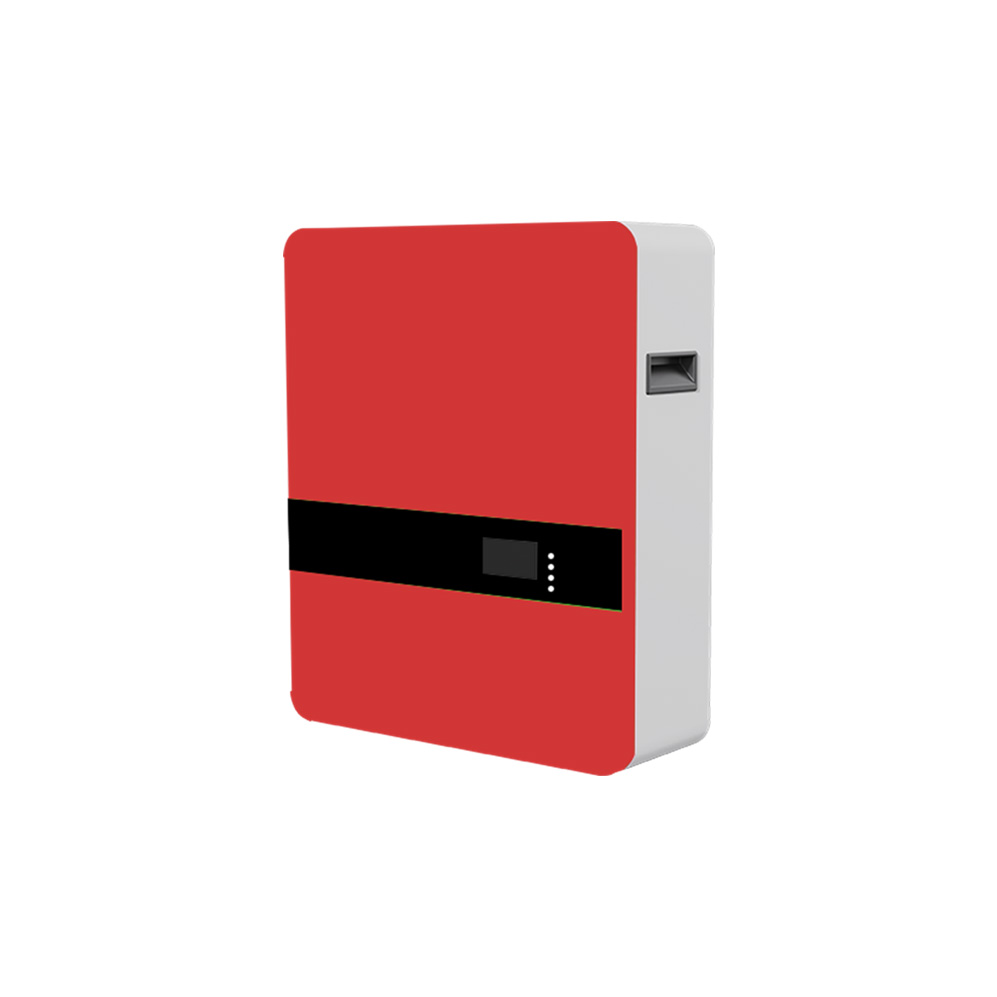

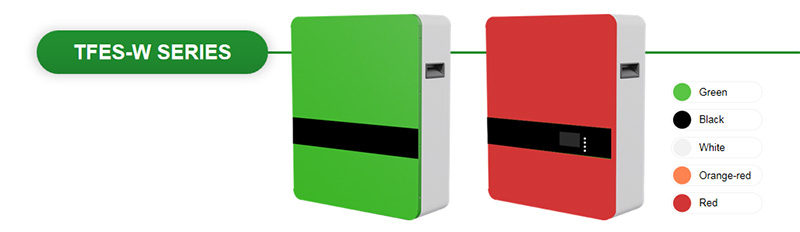

lithium battery TFES-W SERIES 24100

lithium battery TFES-W SERIES 24100

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

lithium battery TFES-W SERIES 24100

TANFON Lithium Battery Advantage:


Longer Cycle Life: Offers up to 15 times longer cycle life and 5 timeslonger float/calendar life than lead acid battery.
Lighter Weight: About 40% weight of a comparable lead acid battery, saveup to 60% in weight.
Quick Charge: Short charge time compared with lead acid battery.
Low Self-Discharge: Lower self-discharge compared with lead acid batterylonger storage time without recharging.
Superior Safety: Multi-protection methods built inside to protect the batteryfrom overcharge, over discharge and short circuit situatior
High Efficient: Higher round-trip energy efficiency of the average (92%)than lead acid battery 80% (discharge from 100% to 0% and back to 100%charged)



Model(TFES-W)

24100

Nominal Battery Energy

2.56kWh

Nominal Capacity

100AH

Nominal Voltage

24V

Charging Cut -off vol

29.2V

Discharging End-off vol

20V

Weight

28KG

Max.Power Charge/Discharge Current

100A

Rated Charge Current(A)

50A

Dimension

460*190*550mm

Charging Temp, Range

0~50℃

Discharging Temp, Range

-10~50℃

Calendar Life [1]

>2000Cycles

Protection Level

IP54
