TANFON Lithium Battery Advantages The process is divided into gears to ensure 100% discharge for 3500 cycles, and 80% discharge depth can be 6000 times; The data of electric core can be traced,the whole chain control and perfect aft
BrandName: TANFON
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
Product Specification:
Model/Parameters |
TFES240300 |
TFES240400 |
Basic |
||
Normal Voltage [V] |
256 |
|
Normal Capacity [Ah] |
300 |
400 |
PACK |
8S2P-10S |
8S4P-10S |
Operating Voltage [V] |
224~280 |
|
Rated energy [kWh] |
76.8 |
102.4 |
Battery Type |
LiFePO4(LFP) |
|
Ah Efficiency [%] |
99.5 |
|
Wh Efficiency [%] |
96 |
|
Standard Power [kW] |
40.0 |
50.0 |
Recommended Charging current [A] |
<150 |
<200 |
Maximum Discharging current [A] |
250 |
250 |
Dimension & Weight |
||
Dimension(L*W*H) [mm] |
(442*500*190)*10 +(442*500*178)*1 |
(442*800*154)*10 +(442*500*178)*1 |
Weight [Kg] |
650 |
950 |
Communication |
||
Battery to Inverter |
RS485/CAN |
|
Battery to Battery/BMS |
RS485 |
|
Capacity Indicator |
LCD(Optional) |
|
Switch ON/OFF |
Button & MCB |
|
Environment |
||
Operating Temperature [℃] |
-10 to 55 |
|
Relative Humidity [%] |
5 to 95 |
|
Altitude [m] |
Below 4000 |
|
Standard Comply |
||
Cycle Life [80% DOD, @0.5C, 25℃] |
> 6000 Cycles |
|
Warranty [Year] |
3 years |

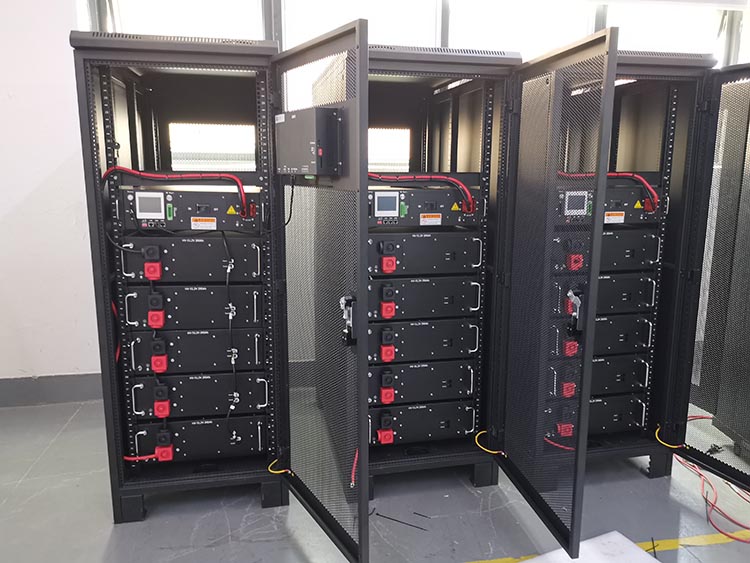

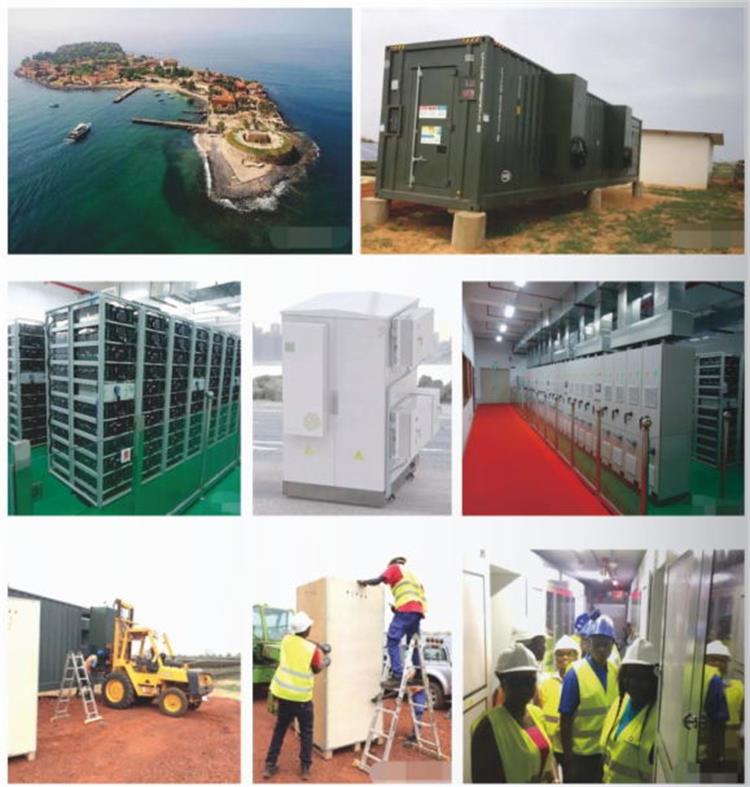

Lithium battery case:
certification:
