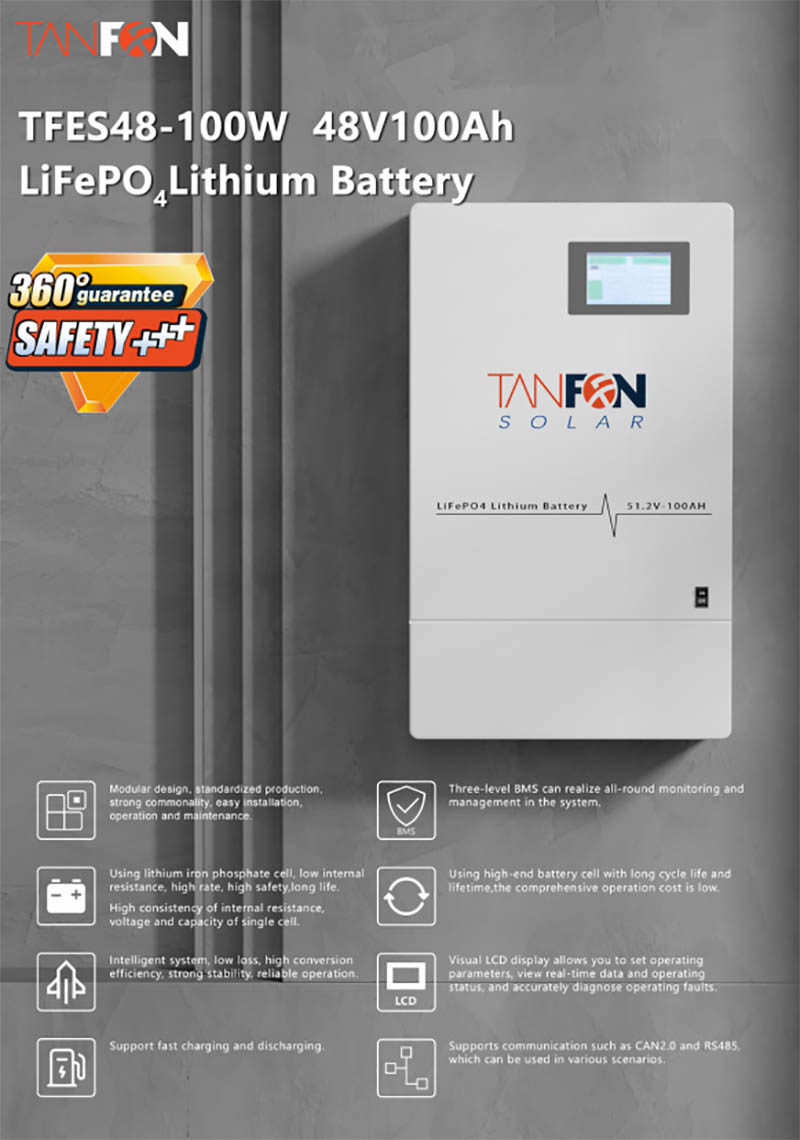

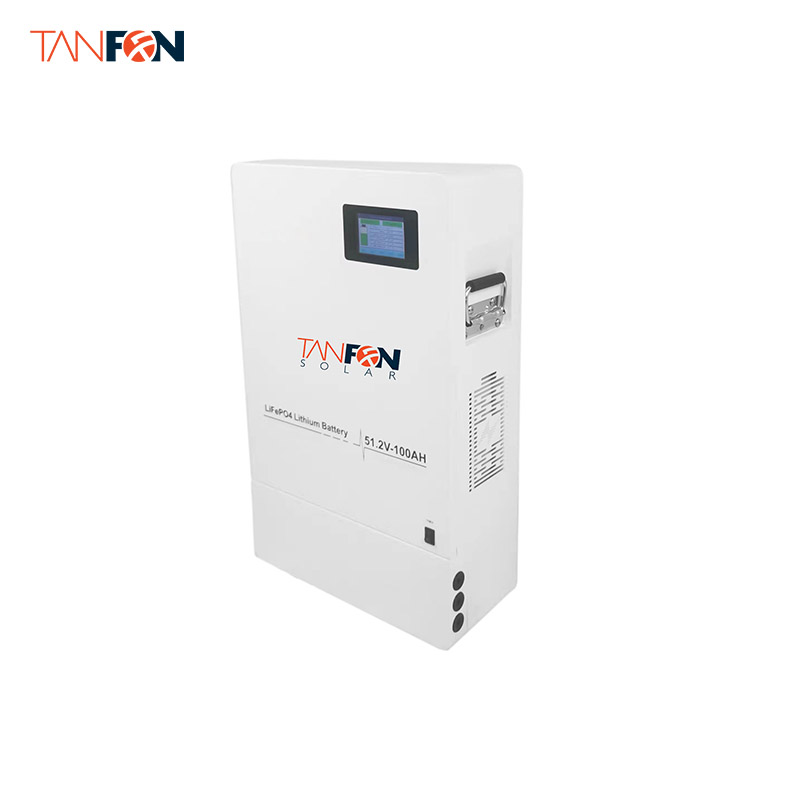

TFES48-100W 48V 100Ah LiFePO₄ Lithium Battery

Modular design, standardized production, strong commonality, easy installation, operation and maintenance.
Intelligent system, low loss, high conversion efficiency, strong stability, reliable operation.
Support fast charging and discharging.
Three-level BMS can realize all-round monitoring and management in the system.
Using high-end battery cell with long cycle life and lifetime,the comprehensive operation cost is low.
Visual LCD display allows you to set operating parameters, view real-time data and operating status, and accurately diagnose operating faults.
Supports communication such as CAN2.0 and RS485, which can be used in various scenarios.

Specification
Nominal voltage		48V
Nominal capacity		l00Ah
Dimensions	Length	600±2mm (23.62inch)
	Width	370±2mm(14.57inch)
	Height	19Q±2mm (7.48inch)
	Total height	190±2mm (7.48inch)
Approx, weight		41kg(90.391bs)±2.5kg

Characteristic
Electrical Parameters (25°C)	Rated Voltage		51.2V
	Rated Capacity (Cs)		100Ah@25°C
	Energy		5l20Wh
	Months Self Discharge		<3%
	Charge Efficiency		99.5%@0.2C
	Discharge Efficiency		96-99%@ 1C
Terminal Diameter			M8
Internal resistance (Fully charged, 25°C)			<80mQ
Cycle life			>3000 cycles @ 0.2C 100%D.O.D
Capacity affected by temperature		40°C	101%
		25°C	100%
		0°C	90%
		-10°C	75%
Nominal operaling temperature			25°C± 3°C (77°F± 5°F)
Operating temperature range		Discharge	-20°C〜60°C (-4°F ~ 140°F)
		Charge	0°C~ 45°C(32°F~113°F)
		Storage	0°C 〜40°C (32°F~104°F)
Water Dusl Resistance			IP50
Charge Voltage			58.4V
Standard Charge Mode (25°C±2°C, <75%RH)			0.2CA Constant Current to 58.4V, then Constant Witage 58.4V until the current drops to 0.02CA, before use. rest 30 minutes
Charge Current			20A
Maximum Charge Current			50A
Charge Cut ofFVbltage			58.4V
Continuous Discharge Current			100 A
Maximum Pulse Current			150A(<100ms)
Discharge Cut Off Voltage			44.8V
Communicate Protocol (optional)			RS485/CAN
SOC (optional)			LED/Screen/PC Software
Application connection			1 string 1 parallel
Mechanical		Cells	16 Strings
		Container	Metal

Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times longer float/calendar life than lead acid battery.
Lighter Weight: About 40% weight of a comparable lead acid battery, save up to 60% in weight.
Quick Charge: Short charge lime compared with lead acid battery.
Low Self-Discharge: Lower sei Mischarge compared with lead acid battery, longer storage time without recharging.
Superior Safety: Multi-protection methods built inside to protect the battery from overcharge, over discharge and short circuit situation.
High Efficient: Higher round-trip energy efficiency of the average (92%) than lead acid battery 80% (discharge from 100% to 0% and back to 100% charged).

Outer dimensions (mm)

TFES 48V 100Ah Lithium Battery
