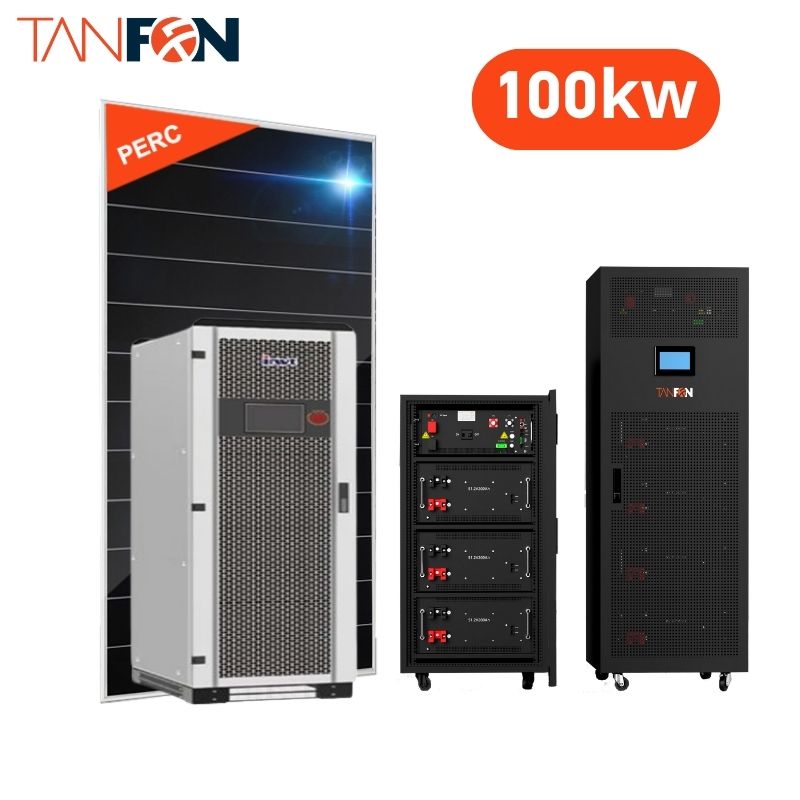

100KW on off grid solar power system

100KW on off grid solar power system

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

Megawatt solar energy storage system


This scheme is applicable to the distribution system composed of photovoltaic, energy storage, power load and power grid(generator).
The application of the system in the power grid mainly includes the following scenarios:
Peak shaving and valley filling: by charging and storing energy at valley time and discharging energy at peak time, the electricity cost of customers can be reduced and the electricity charge at the power consumption end can be saved for customers.
Demand response: when the short-term power consumption is greater than the transformer capacity, the energy storage system will discharge rapidly to meet the load power demand
Dynamic capacity increase: energy storage equipment is used to replace the capacity of transformer in peak period to help customers reduce and reduce the expansion cycle and cost of transformer investment.

Off grid standby power supply: when the power supply of the power grid is interrupted, provide uninterrupted short-term power supply for important loads to reduce the economic losses caused by sudden power failure of loads.
The solar generation is given priority to the user's load to achieve the maximum economic operation, and the excess energy is stored in the daytime;
When the photovoltaic power generation does not meet the load use, the load is powered by photovoltaic + energy storage; If the photovoltaic + energy storage does not fully meet the use of the load,it will be introduced by the mains to provide reliable power supply for the load; When the solar is redundant and the energy storage battery is full, and the photovoltaic surplus power is sale to grid.


100KW on off grid solar power system

FS550W PERC Shingled solar panel(USA TR Technology panel)
Vmp:39.47V        Voc:48.077V  Imp:13.942A       Isc:14.672
210*210 cells     Efficiency:20.54%
weight:26KG   Size:2239*1042*35mm each 15pcs in series
Strong anti-cracking advantage
 25 years product warranty


MAX PV input:110KW   MPPT range:250-850V

Rate current:144A   Output power:110KVA

Otuput voltage :400V , 3L+N+PE

Battery voltage:384V   European Efficiency:97.5%

Size:1200 x 2050 x 800 mm  Weight:1120KG

Communication:Standard: RS485 / CAN / DRM

 Optional: WiFi


The latest through-wall welding technology,  more suitable for motor loads.  Warranty:3 years

Service life:6-8 years Size:522*240*219mm

Connect way:  each 32pcs battery in series

Model number: TFES384-200W Voltage: 384v

Capacity: 200AH

Nominal capacity: 80KWh

Max discharge current:200A

Cycle life: 6000

Material: LiFePO4 Application: solar power

With display to monitor

With high voltage system cabinet


700KW 700KVA Off Grid Solar Power System With Battery Storage

Slope Rooftop /Flat rooftop/ground

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

(other type of rack can be customized as per client’s requirement )

1)4pcs 25mm2*2M battery cable

25mm 25M power cable

2)4mm2 PV cable 100M*4pcs

3)terminals and MC4+2P 100A Power switch box

4) one set MC4 tool
