On and off grid solar system 5 kw with battery storage Tanfon factory supply: off grid solar system, on grid solar system, on and off grid hybrid solar system, off grid solar system without battery. We provide complete
Place Of Origin: Foshan, Guangdong Province, China
BrandName: Tanfon Service Center
MOQ: 1 set,Accpet OEM &ODM
Certificate: ISO, ETL, TUV, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
Tanfon factory supply: off grid solar system, on grid solar system, on and off grid hybrid solar system, off grid solar system without battery.
We provide complete set solar power system that include all parts for customers, installation tool can be choose. Customers can easy install the system according to our detailed connect diagram and user’s manual.
On and off grid solar system working way:
TANFON on&off grid solar power system- OFP-5KW
Solar panel rated output power: 5325W
Allowable max loads power : 5KW/6KVA
FS355W mono solar panel(poly optional)
Vmp: 38.39V Voc: 47.13V Imp: 9.25A
Size : 1956*992*40mm
25 years life time (CE TUV)
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance:25 years 80 % 20 year 85% 10 years 90%
Connect: 5pcs panels in series as a string, each string connect to PV combiner
Inverter power: BF5KW/96V
Max input voltage: 280VDC
Max input current: 33A
Less standby power consumption
Soft or variable frequency start option
Working way: solar power to inverter take the load first,excess power sale to grid
output: 220V or 380V

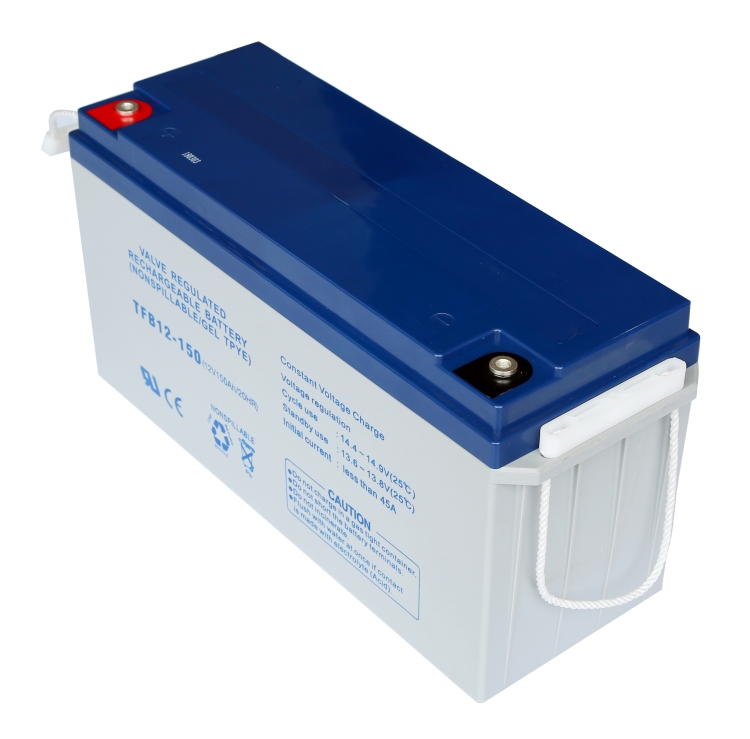

Capacity: 12V/150AH full sealed
Solar power Gel battery
Service life: 5-6 years
Connect way: 8pcs in series as a string
Slope Rooftop or Flat rooftop including complete fittings
wind load: 55m/s, snow load: 1.5kn/m2
structure: Anodized Aluminum + stainless steel, Angle adjustable
(other type of rack can be customized as per client's requirement )
4mm2 cable, (one red and one black)
International standard, with specification suitable for solar system
1- when plenty of solar, solar provide power to load and charge battery, excess solar is fed in to the grid.
2- when solar is not enough, solar and city power provide power to load and charge battery.
3- When AC fails, solar and battery provide power to load.
4- when no solar, city power provide power, if city power fails, battery provide power.
Why Choose Tanfon?

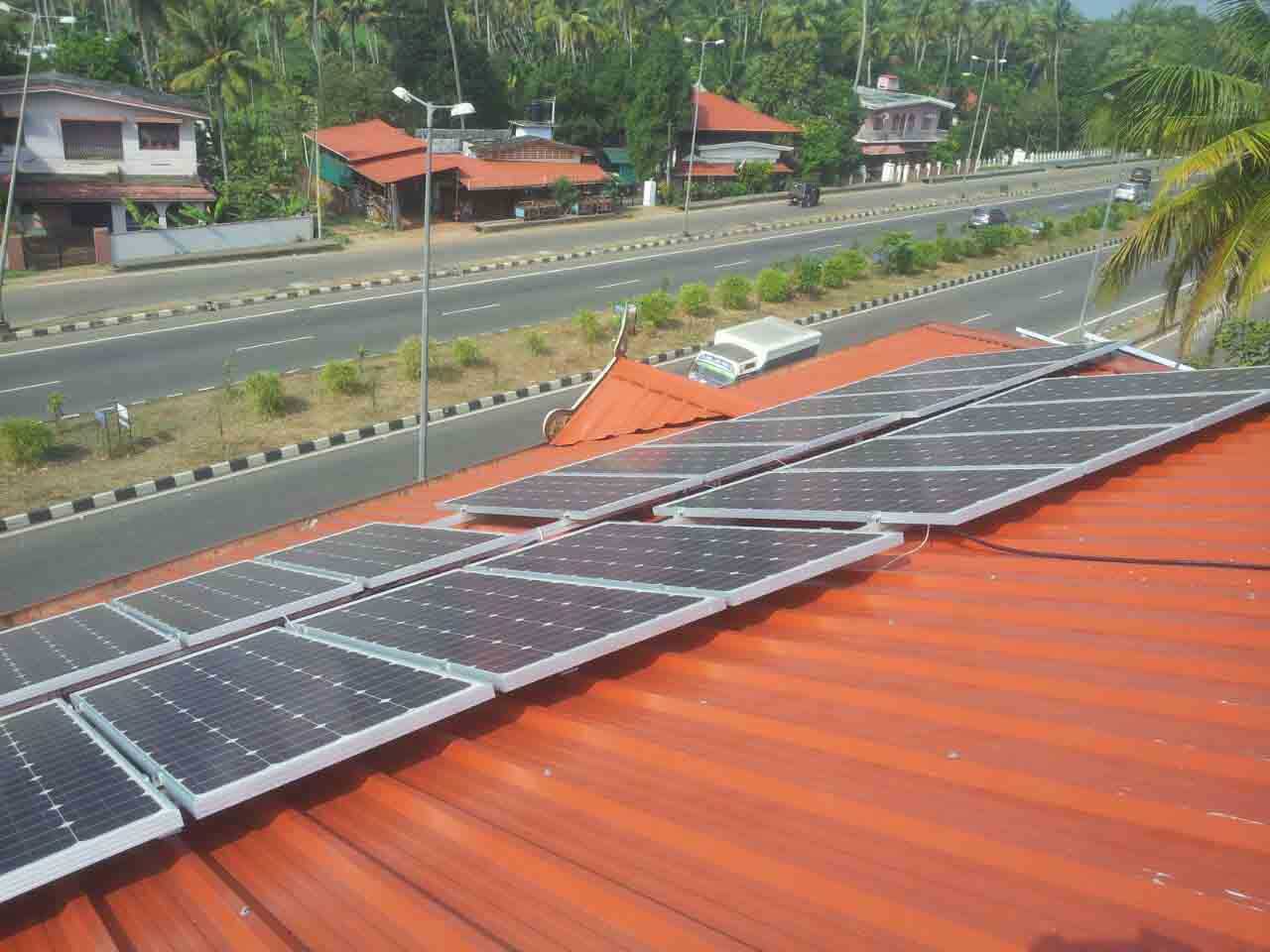

Solar system project update
Solar system high efficiency working feedback.
Tanfon home solar system certificates
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
Q: What can be included for this system from TANFON?
A:This system includes: Solar panels, PV array combiner, Off grid Solar inverter, Solar panel mounting rack, PV cables.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are available also.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters can be about 20 years
Q:what is TANFON solar system after sales service?
A: during the warranty ,Solar panel--ship free new one ;battery—ship the new one ,
Inverter/controller---ship free PCB by DHL or Fedex.
Q:what is your trade Assurance?
A:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
