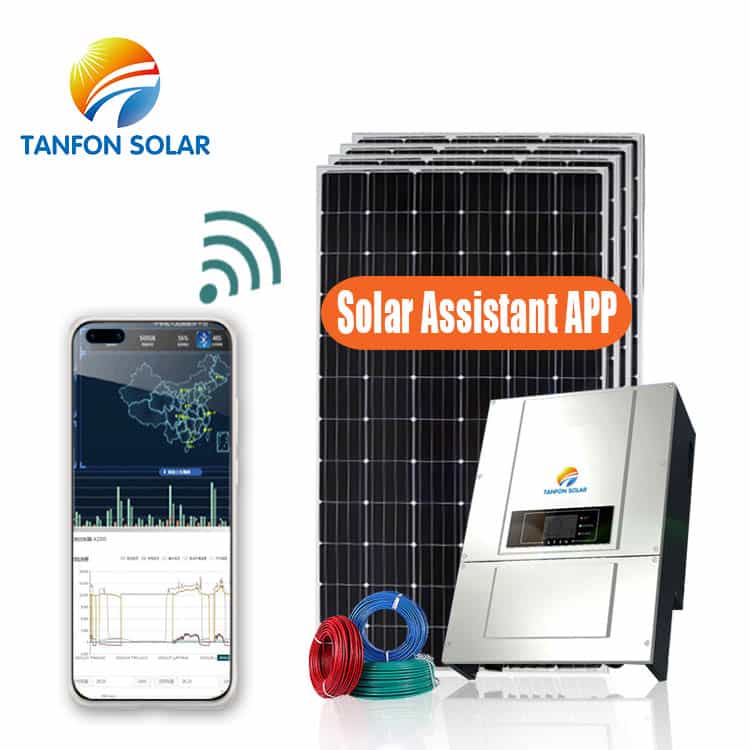

500kW off grid 3 phase Solar power Generation Solar Power System Grid-tie Complete Kit Connection Diagram Product Description How the on grid solar system working: The grid-connected so
Place Of Origin: Foshan, Guangdong Province, China
BrandName: Tanfon Service Center
industry leading technology
uninterruptible power supply
Solar Power System Grid-tie Complete Kit Connection Diagram
How the on grid solar system working:
The grid-connected solar photovoltaic power generation system is composed of photovoltaic grid array grid-tie inverters. Without the storage of the battery, the on grid inverter directly inputs the power into the public grid. The on grid solar power generation system saves the energy storage and release process of the battery compared with the off- grid solar photovoltaic power generation system, which reduces the energy consumption, saves space and reduces the configuration cost.
What's the difference between off grid and on grid solar power system?
Off-grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.
On-grid solar power system connects to the power grid, can sell excess electricity to the public grid. In general, it includes solar panels, grid-tie inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.
FS250W mono solar panel(poly optional)
Vmp: 30V Voc: 36V Imp: 8.33A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)
Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel
Solar Inverter (Quantity: 1 piece)
Power capacity: HBF500KW
MPPT voltage: 160V-960V
Rate voltage: 600V
Number of MPP inputs: 2 Number of DC inputs: 2
Allowed Voltage Range Of Grid: 380-415V
Communication interface: RS485
Cables (Quantity: 1 set)
4mm2 PV cable *100M
10mm2 inverter cable *50M
(4mm2 PV cable each string connect to PV combiner)
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.
|Solar Power System Projects|
1.2MW grid tie solar power system station
2MW on-grid solar power system station
Why Choose Tanfon?
Each set solar power system has tested by power-off test of 100 times per hour.
Pre- sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
|Tanfon Factory Picture|
|Solar Products FAQ|
Q: What can be included for this system from TANFON?
A:This system includes: solar panels, PV array combiner, Solar inverter, solar panel rack, cables.,etc.
Q: What is 3000w solar panel installed angle?
A: Your country latitude and longitude +10 degrees
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: How many days need to install 3KW solar panel system?
A: We supply install video and drawing Engineer can be on-site installation service. As our experience, 1-2 days can finihsed install.
Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 20 years, batteries 6~8 years.
Q: What can Tanfon supply?
A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one- stop service.
