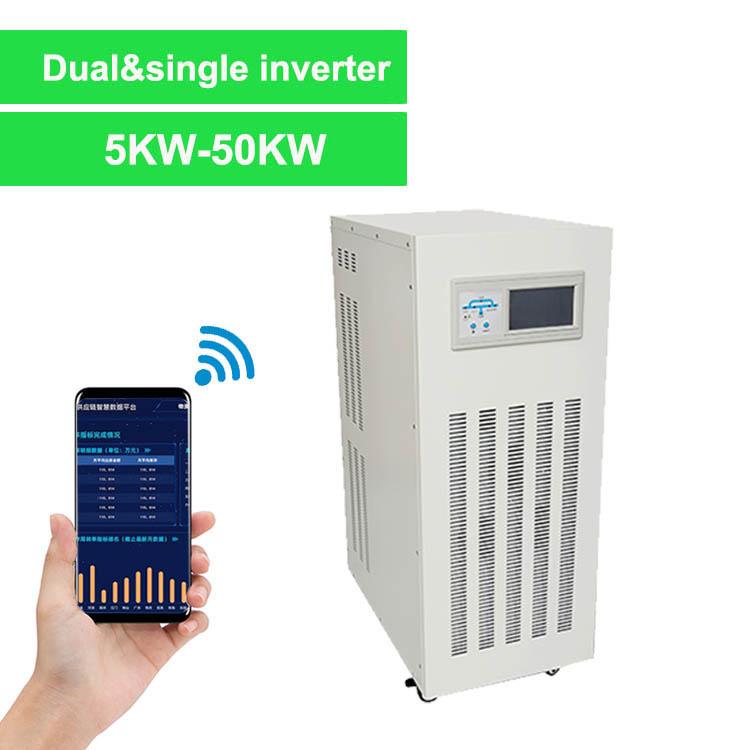

110V/220V Dual output Solar Inverter 1kw-30kw_Solar Inverter_TANFON solar power system, solar panel inverter, solar home system factory

T series off grid 10kw solar inverter feature:

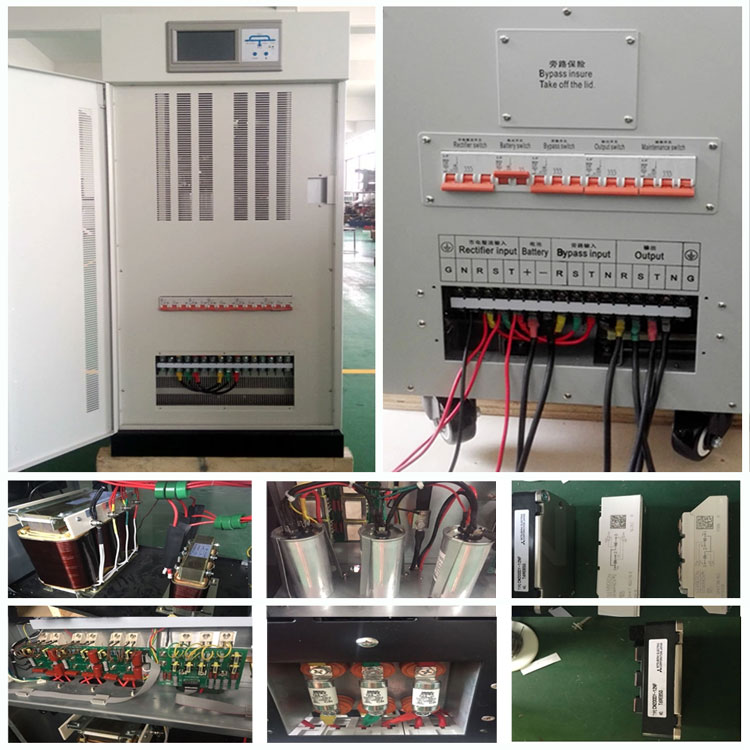

1. With AC reactor (Protect against city power current shock)

2. Double protection. (Two fuses, including the city power security and battery power security)

3. Thyristor charging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)

5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)

7. IGBT brand: Mitsubishi (import from Japan), Thyristor charging brand: Simon Kang Brand(import from German)

8. single to 3 phase converter with transformer,IGBT materials, Isolation, output reactance,easy take hostipal's surgical equipment

Product Details

Technical Data

T series off grid 10kw solar inverter

Model		T10K	T20K
Power		10KW	20KW
Input	Phase	Dual output
	Voltage Range	110V/220V
	Frequency Range	45-65HzV
	Rectifier	Dual output 6 pulses, 12 pulses is optional
Output	Phase	Dual output 4 wire and ground
	Wave form	Pure sine wave
	Crest Factor	3:01
	Rated Voltage	110V/220V optional ±1% for static load, 5% forfluctuant load
	Phase Voltage setting	200-244VAC, pls confirm when order
	Transient Response	±5%,10ms
	Frequency	50/60 Hz ±0.05%
	Total-harmonic distortion	< 3% linear load, <5%(nonlinear load)
	short circuit current	Short current for 0.1s(200% current)
	Overload Capacity	Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal
Bypass	Type	Static state +manual maintenance bypass
	Input Phase	4wire and ground
	Input Voltage Range	15% - 25% (the front control panel selectable)
	Transfer Time	Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency	Whole unit	>85%
	Inverter	93
Remote Signaling		Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts
Environment Temperature		0-40 degree Celsius
Relative Humidity		Less than 95% (without condensing)
Noise		<60dB
Degree of protection		IP20
Dimension(mm)		7304561165	7855801200
Package Size(mm)		8446151410	9607301410
Net Weight(kg)		108	125
Gross Weight(kg)		125	145
