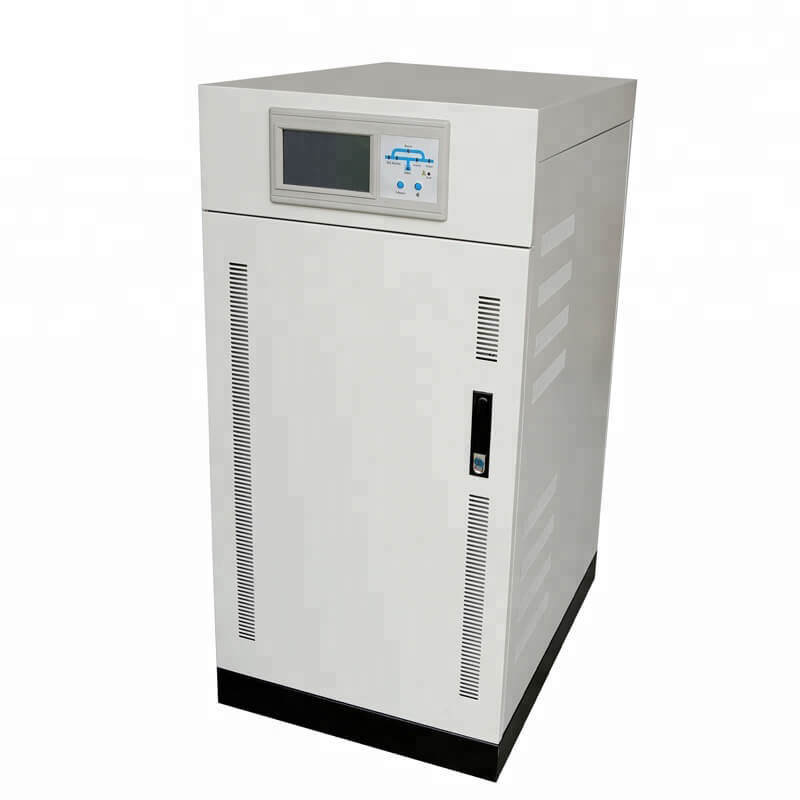

Three Phase 5kw 5kva Inverter For Off Grid Solar System

Three Phase Solar 5kw 5kva Inverter For Off Grid Solar System     Tanfon three phase inverter with IGBT material functions: 1.With AC reactor  (Protect against city power current shock) 2.Double protection.(Two

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar Manufacturer

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

Three Phase Solar 5kw 5kva Inverter For Off Grid Solar System





Tanfon three phase inverter with IGBT material functions:

1.With AC reactor  (Protect against city power current shock)

2.Double protection.(Two fuses, including the city power security and battery power security)

3.Thyristorcharging.(The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4.IGBT converter.(High 95% transfer efficiency and strong anti-loading shock capacity)

5.AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

  1. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock ,stable function)
  2. The Chinese/English language operation interface for choice.
  3. Touching display

9. IGBT brand: Mitsubishi (import from Japan)

Thyristor charging brand :Simon Kang Brand(import from German)

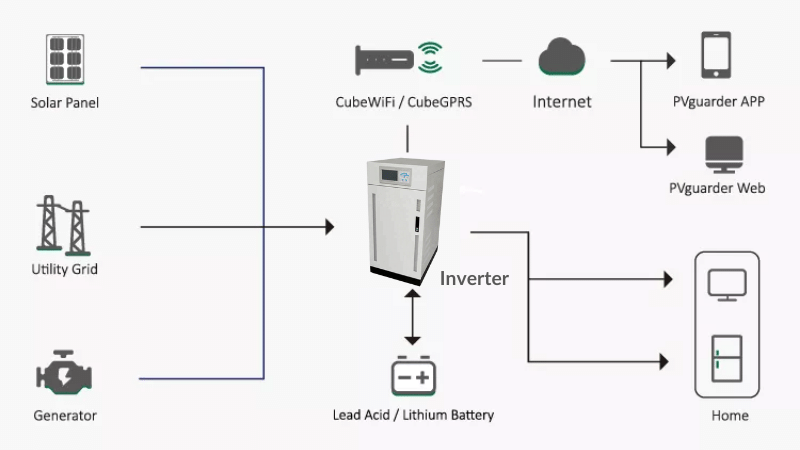

  1. All inverter with IOT,get life-long maintenance
  2. There are fixed live streams a week , you are welcome to communicate online



Three Phase 5kw 5kva Inverter For Off Grid Solar System





Power

3 Phase solar 5KW inverter

Power Factor

0.8

Input

Phase

3 phase 4 wire and ground

Voltage Range

380V± 20%(3 phase), phase voltage 220V

Frequency Range

45 – 65Hz

Rectifier

3 phase 6 pulses, 12 pulses is optional

Output

Phase

3 phase 4 wire and ground

Wave form

Pure sine wave

Crest Factor

3: 01

Rated voltage

380/400/415V optional+ -1% for static load, 5% forfluctuant load

Phase voltage setting

200 - 244VAC, pls confirm when order

Transient response

+/-5%, 10ms

Frequency

50 / 60 Hz + / - 0.05%

Total-harmonic    distortion

< 3% linear load, < 5%( nonlinear load)

Short circuit current

Short current for 0.1s (200% current)

Overload capacity

1.When with utility power:

Inverter Loads up from 100% to 150%, it will keep alarming, and automatically switch to the mains bypass loads in 2-3 minutes. When the load power back normally, the machine will work normally.



2.if without mains power,

Inverter Loads up from 100% to 150%, it will keep alarming, and alarm for about 2-3 minutes. When the load power back normally, the machine will work normally

Battery

Battery

Maintenance free lead-acid cell

DC Voltage

48v or 96V(1-10kw,MOS)

Max Charge Current

6-30A adjustable

BypassType

Static state + manual maintenance bypass

Input Phase

3 phase 4 wire and ground

Input voltage range

15% - 25% (the front control panel selectable)

Transfer time

Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms

Efficiency



Whole unit

> 85%

Inverter

91

Remote signaling

Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional parts

Communication interface

RS232 ( SNMP, modem optional )

Running temperature

0-40 degree Celsius

Relative Humidity

Less than 95% (without condensing)

Noise at 1 M

less than 60 dB

Degree of protection

IP20

Applicable Standards

EN50091-1-EMC EN50091-2liv. A

Product size(mm)

700*364*969

product weight(Kg)

175

Package size(mm)

830*490*1010

Package weight(Kg)

210



Three Phase 5kw 5kva Inverter For Off Grid Solar System



Three Phase 5kw 5kva Inverter For Off Grid Solar System



Three Phase 5kw 5kva Inverter For Off Grid Solar System

T series three phase inverter for Haiti 100KW off grid solar system project

Certificate

We have ISO9001, CE, RoHS etc.

Three Phase 5kw 5kva Inverter For Off Grid Solar System

Inverter Packing

Three Phase 5kw 5kva Inverter For Off Grid Solar System

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
