High Frequency Off Grid Solar Inverter
High Frequency Off Grid Solar Inverter

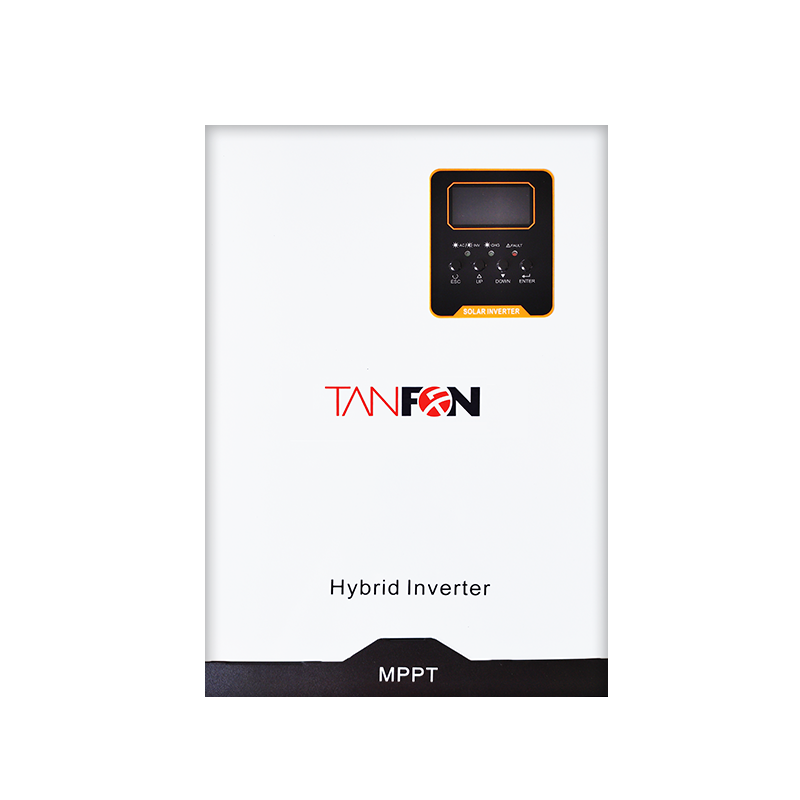

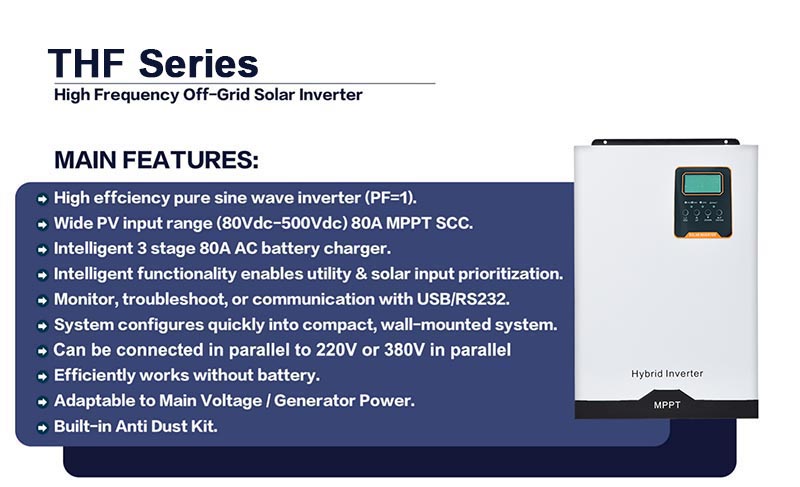

THF Series High Frequency Off-Grid Solar Inverter

Victor THF Series Series High Frequency Off-Grid Solar Inverter   INTRODUCTION: The THF Series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business, and it also delivers a val

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

Victor THF Plus Series High Frequency Off-Grid Solar Inverter



INTRODUCTION:

The THF Series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business, and it also delivers a value added,easy to install system that provides efficient power globally for every need. Combined with a 80A MPPT Solar Charge Controller ,80A AC charge Controller and Pure Sinewave Inverter. Efficiently works without battery.

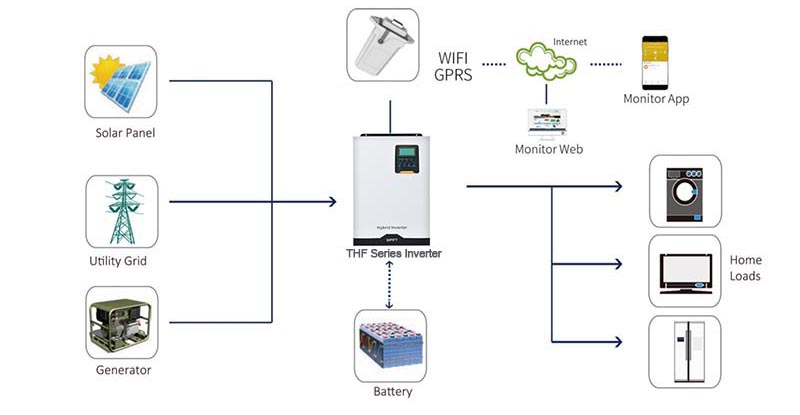

High Frequency Solar System
SPECIFICATION
Victor THF Series 3200
Rated Power 3200W
System DC voltage 230 VAC
Monitoring Option Wifi or Gprs
Inverter Output
Inverter Output 230VAC土5%
Surge Power 6400VA
Peak Efficiency 94%
Tansfer Time

10 ms (For Personal Computers) ;

20 ms (For Home Appliances)

Waveform Pure Sine Wave
Solar Charger&AC Charger
Max. PV Array Open Circuit Voltage 500 VDC
Max. PV Array Power 5000W
Operating Voltage MPPT Range 120~ 450VDC
Battery Overcharge Protection 33 VDC
Max. Solar Charge Current 100A
Max. AC Charge Current 100A
Max. Charge Current 100A
Physical
Dimension 100 x 300 x 440mm
Net Weight 7.8KG
Communication Interface USB/RS232
Environment
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C-55°C
Storage -15°C-60°C
