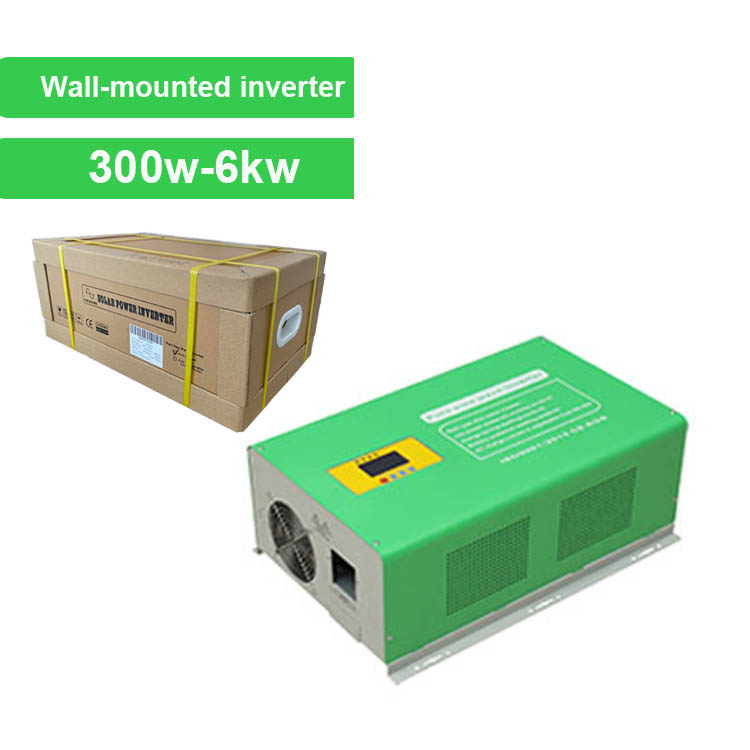

Wall mounted Pure Sine Wave Solar Inverter 300w-6kw

5000 watt off grid solar power inverter details 5000 watt off grid solar power inverter technical data Model NW5KW Rated Power 5KW Peak Power

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON

MOQ: 1 set,Accpet OEM &ODM

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

5000 watt off grid solar power inverter

5000 watt off grid solar power inverter details

5000 watt off grid solar power inverter details5000 watt off grid solar power inverter details

5000 watt off grid solar power inverter technical data

Model

NW5KW

Rated Power

5KW

Peak Power

15KW

Nominal battery voltage

48VDC

Comnunication

RS-232/USB/SNMP(additional option)

Input

DC input range

10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V)

AC Mains input range

140-275VAC (220/230/240VAC) ±4%

AC input frequency

50Hz: 45-65Hz / 60Hz: 55-65Hz±0.5Hz (50Hz/60Hz automatic recognition)

Output

Output voltage

(DC battery mode)220/230/240VAC±2% / (AC mains mode)220/230/240VAC ±10%

Output frequency

(DC battery mode) 60/50Hz±1%/(AC mains mode) automatic tracing from AC input

Working mode

AC mains priority/Energy saving/DC battery priority

Environment

-20~+75℃

Product size (mm)

630*280*200mm

 Weight (kg)

31KG





Certificate

We have ISO9001, CE, RoHS etc.

Tanfon Certificate



Why Choose TANFON Products?
1.Sample service:Applicable to quality test,function test etc

2.Repair service:Two year warranty

3.Perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .

4.ODM service:Powerful R&D department can provide professional technical support

5.OEM services:More than 100 pieces ,you can decide the trademark and package

6:Quality utmost:Each inverter has tested by power-off test of 100 times per hour.
