TANFON advantages: 1. The most competitive price in the whole network 2. 12 years of installation experience, with global service centers Product advantages: 1. Small size, light weight, environmental protection, no noise, maint
Place Of Origin: Guangdong,China
BrandName: TANFON SOLAR
MOQ: 10pcs
industry leading technology
uninterruptible power supply
online service
TANFON advantages:
1. The most competitive price in the whole network
2. 12 years of installation experience, with global service centers
Product advantages:
1. Small size, light weight, environmental protection, no noise, maintenance-free, portable.
2. Gel battery and lithium battery optional
3. Universal socket, suitable for all countries
4. Easy to install, even an 80-years elder can install well.
Features and function

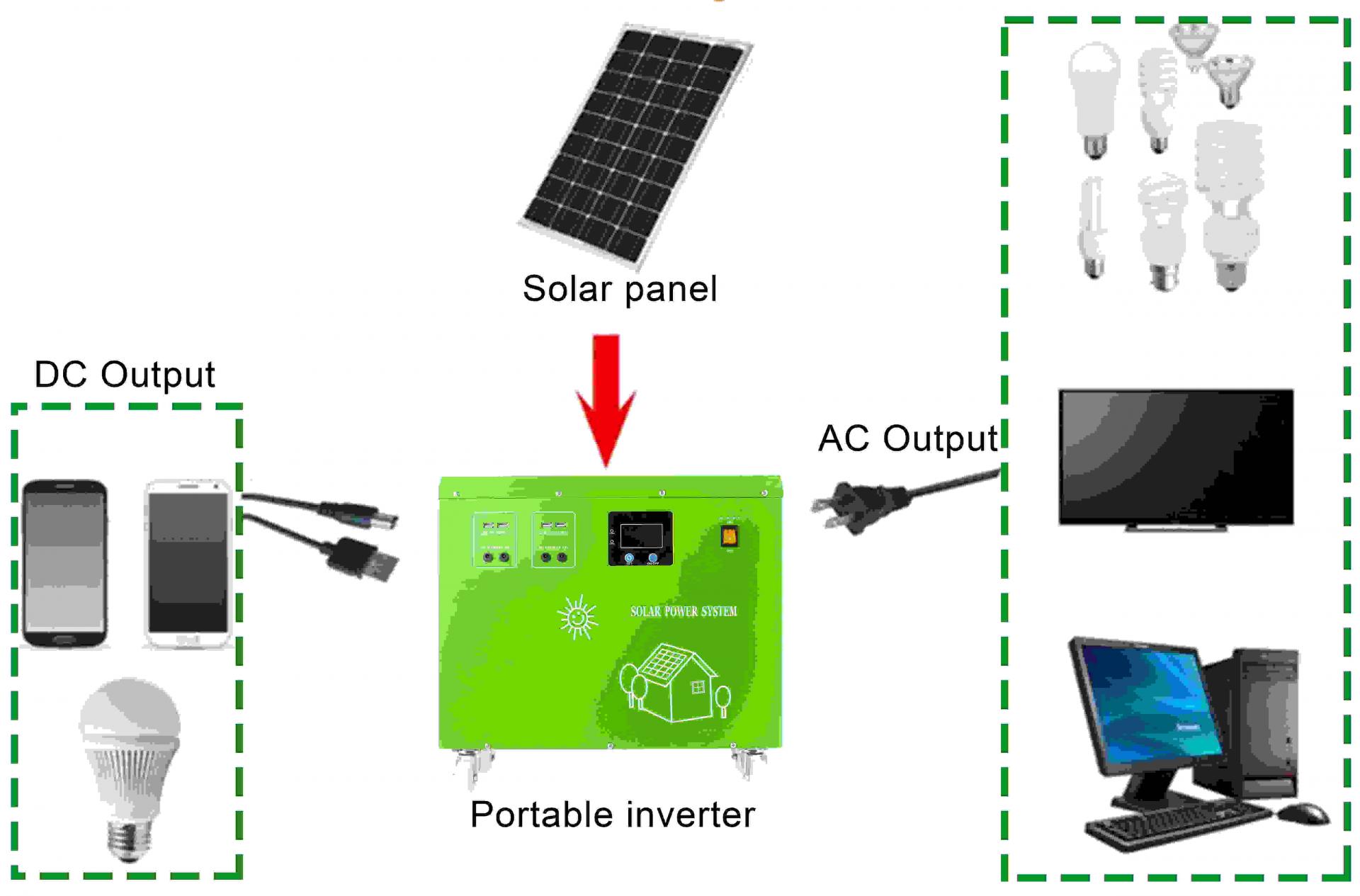

1.for light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and the other house appliance
2.Rate power 500w-3kw,pure sine wave output
3.MPPT solar charge controller,15A grid charger,with Gel battery
4.The mains supply mode/energy-saving mode/battery mode can be set for flexible
5.Convenient and practical 5VDC-USB output port and 12VDC output port
6.Overcharge protechon and overdischarge protection for a longer battery life
7.Safe and reliable with intelligent exhaust fan control
8.Overall automatic protection and alarms induding AC output overload protection .
Model | SCL-500W |
Battery Voltage | 12V |
Inverter | |
Rated power | 800VA/500W |
Input Voltage Range | 140-275V |
Input Frequency | 45-65HZ |
Output Voltage | 220VAC |
Output Frequency | 50/60HZ |
Output Wave | Sine Wave |
Speficifation Of Built-in Lifepo4 Battery | 12V50AH |
Communication | RS232 |
Working model | 01:City power priority 02:Energy Saving mode 03:Solar Power Priority |
Solar Input | |
Max.PV power | 360W |
Max.PV voltage | ≤25VDC |
Range of charging Voltage | 10-25VDC |
Rated charge current | 30A |
Voltage For Overcharge Protection | 14.2VDC |
Voltage For Overcharge Recovery | 14VDC |
Voltage For Floating Charge | 13.7VDC |
DC Output | |
Voltage For High Voltage Protection | 16VDC |
High Voltage Recovery Voltage | 15.2VDC |
Low Voltage Recovery Voltage | 12.6VDC |
Low Voltage Protection Voltage | 11VDC |
5V DC USB Output | 2pcs*2A |
12V DC Output Ports | 2pcs*2A |
PHYSICAL | |
Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan |
Display | Digital LCD |
Electricity Charging | YES |
Extermal Size:W*D*H(mm) | 475*455*245mm |
Package Size:W*D*H(mm) | 515*495*285mm |
G.W.(Gross Weight) | 19kg |
After sales service:
All inverters are free to send new spare boards within the warranty. For more services, please contact our team
