Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service. For the products, Each set solar power system has power on&off test 100 times per hour.Each
MOQ: 1 set,Accpet OEM &ODM
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.
For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification
For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project，solar goverment project etc)
we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.
For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local
|15KW Solar Panel For Home Product Details|

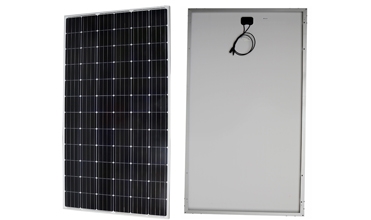

Solar Panel (Quantity: 48 pieces)
FS350W mono solar panel(poly optional)
Vmp: 38.89V Voc: 47.13V Imp: 9.25A
Coated steel Glass: 3.2mm Tempered
Terminal block: IP65 with MC4 connector
Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS)

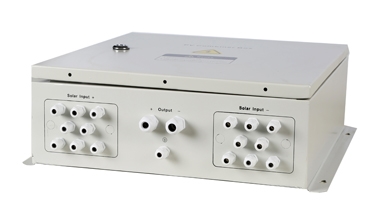

PV combiner (Quantity: 1 piece)
Model: H6T-192v Multiple PV strings inputs
Simplify wiring between PV array and controller,
protections to controller, Prevent hot spot effect
Wide range of DC input voltage
Reliable thunderstorm & surge protection
Product Size: 400*425*145mm

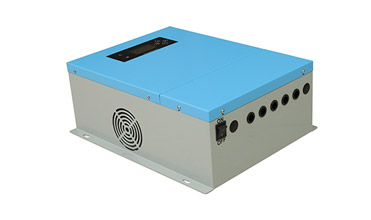

Solar Controller (Quantity: 1 piece)
MPPT controller model:192V/80A
Charging efficiency; 90%-95%,
charging mode, intelligent control,
various protection functions

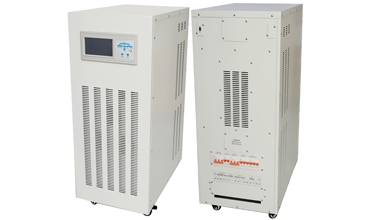

Solar Inverter (Quantity: 1 piece)
Pure sine wave inverter: 15kw(full power)
DC input:192v AC charger 15-20A
100% Germany brand IGBT materials
Double protection, easy after sales service
O/P: 110V, 220VAC
Product Size: 590*470*730mm

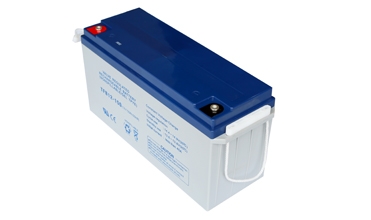

Solar Battery (Quantity: 32 pieces)
Full sealed Solar power gel battery,
Service life: 6-8 years ,

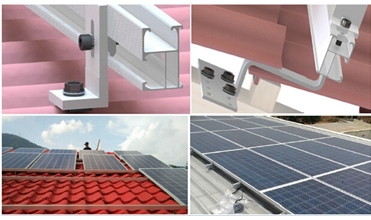

Solar Panel Rack (Quantity: 1 set)
Slope Roof or Flat roof or Ground (option)
including complete fittings
wind load: 55m/s, snow load:1.5kn/m2
structure: Anodized Aluminum + stainless steel

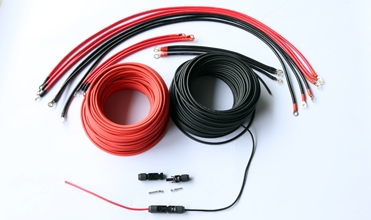

Cables (Quantity: 1 set)
32pcs 32mm2*35CM battery cable
4pcs 50mm2*1M battery cable
4mm2 PV cable 200M
Terminals and MC4
If this off grid 15000 watt off grid solar system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

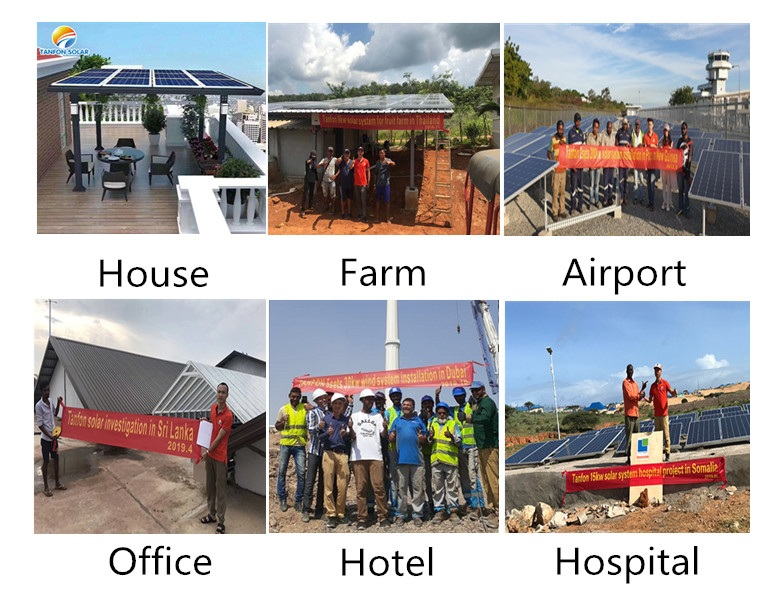

|off grid solar system projects:|
|Why TANFON is your right Choice?|
Each set solar power system has tested by power-off test of 100 times per hour.
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
15KW Solar System With Battery Customer Real Feedback:
