15KW Solar Panel For Home 15KVA Solar Energy System In Lebanon



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

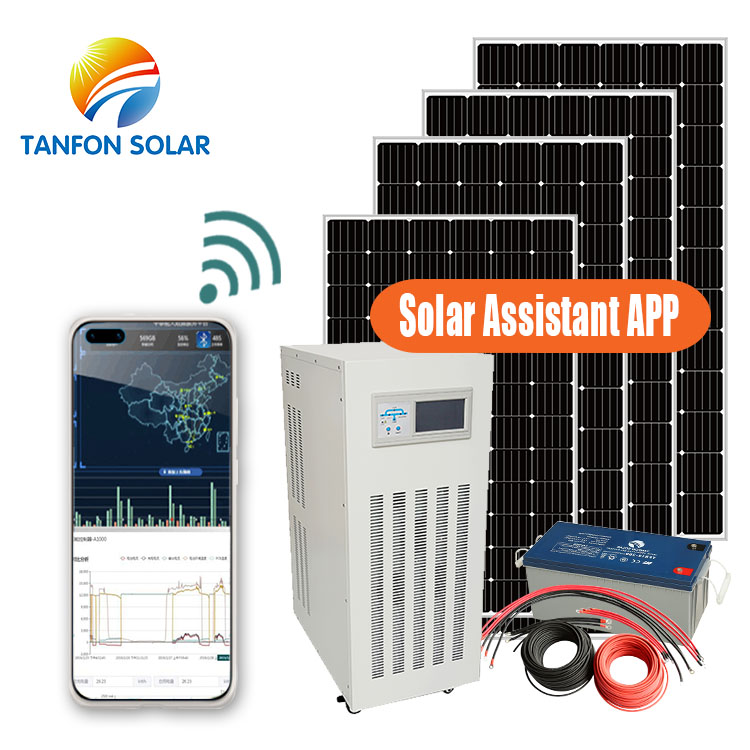

15KW Solar System With Battery



15KW Solar Panel For Home Product Details



15KW Solar System With Battery

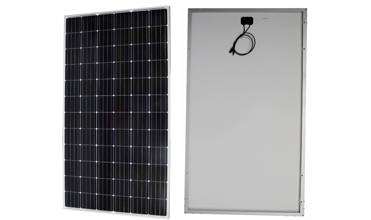

Solar Panel (Quantity: 48 pieces)

FS350W mono solar panel(poly optional)

Vmp: 38.89V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

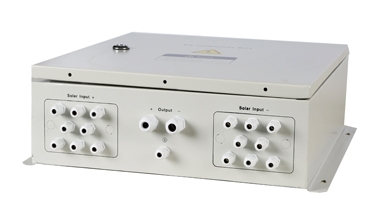

PV combiner (Quantity: 1 piece)

Model: H6T-192v Multiple PV strings inputs

Simplify wiring between PV array and controller,

protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 400*425*145mm

15KW Solar System With Battery

15KW Solar System With Battery

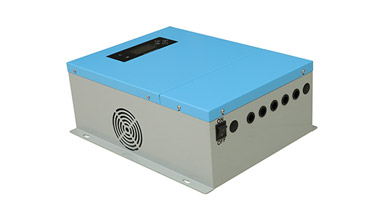

Solar Controller (Quantity: 1 piece)

MPPT controller model:192V/80A

Charging efficiency; 90%-95%,

charging mode, intelligent control,

various protection functions

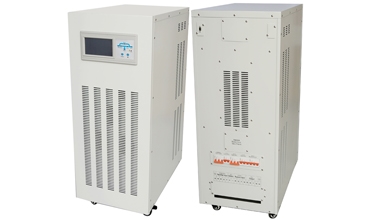

Solar Inverter (Quantity: 1 piece)

Pure sine wave inverter: 15kw(full power)

DC input:192v       AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P: 110V, 220VAC

Product Size: 590*470*730mm

15KW Solar System With Battery

15KW Solar System With Battery

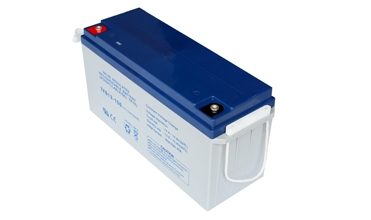

Solar Battery (Quantity: 32 pieces)

Capacity: 12V/150AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 483*170*219mm

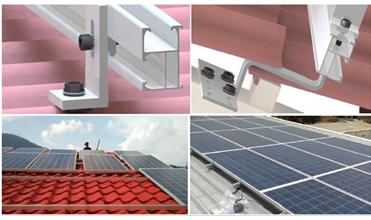

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

15KW Solar System With Battery

15KW Solar System With Battery

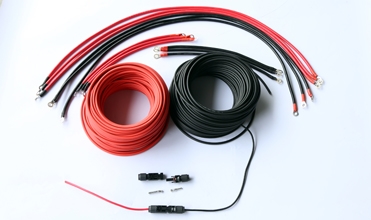

 Cables (Quantity: 1 set)

32pcs 32mm2*35CM battery cable

4pcs 50mm2*1M battery cable

4mm2 PV cable 200M

Terminals and MC4



Get 15kw Stand Alone Solar System Price In Lebanon Now



If this off grid 15000 watt off grid solar system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you



15KW Solar System With Battery

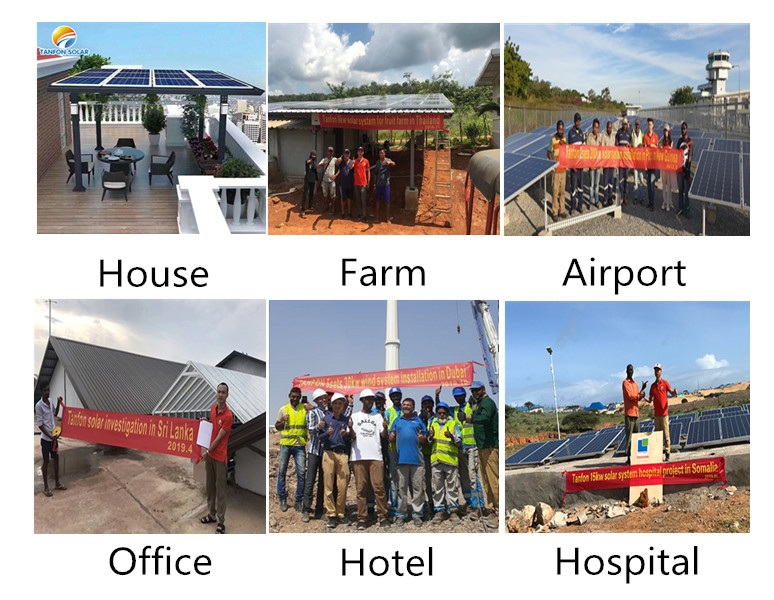

off grid solar system projects:
