How do I choose a solar system that can meet my requirements?
1) Home use (5kw and 10kw)
In a family of about 3 bedrooms, more people choose 5KW and 10KW models.If you want to choose a high-quality system, we suggest to choose the IGBT high-end inverter, and use it more safely.
2) School and office (1.5kw-5kw) Angola, Senegal, Zimbabwe installation
3) Farm use (three-phase 10KW-20KW) Thailand and Australia installation
4) Hospital project (15kw) Somalia, Kenya installation
5) Government office building (80kw) Kenya Konza City installation
6) Factory project (100kw) Haiti installation
7) Airport project (60KW-200KW) Indonesia, Papua New Guinea installation
8) Large shopping mall (150KW) Iraq installation
9) Village power generation (300kw) Zambia installation
If you want to know more cases, please go to Tanfon's official website or contact us. Based on 12 years of actual installation experience, we can definitely provide a solar power system that will satisfy you.
| Product Description |
How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.
What's the difference between off grid and on grid solar power system?
Off-grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

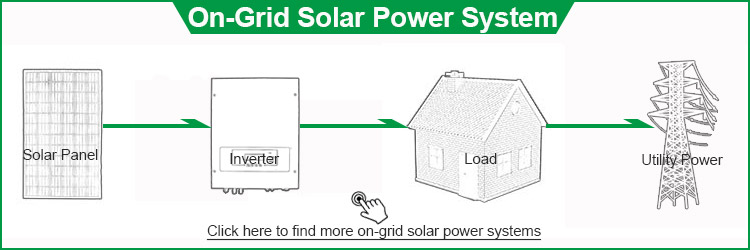

On-grid solar power system connects to the power grid, can sell excess electricity to the public grid. In general, it includes solar panels, grid-tie inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.
| Product Details |
What is included in my 4500kw solar power kits?
Our kits provide all the components you need from start to finish.
|
|
Solar Panel (Quantity: 78 pieces) FS380W mono solar panel(poly optional) Vmp: 38.39V Voc: 47.13V Imp: 9.75A Size: 1956*992*40mm Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS) |
|
PV combiner (Quantity: 1 piece) Model: H6T-384v Multiple PV strings inputs Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect Wide range of DC input voltage Reliable thunderstorm & surge protection Product Size: 400*425*145mm |
|
 |
Solar Controller (Quantity: 1 piece) MPPT controller model: 360V/100A Charging efficiency; 90%-95%, charging mode, intelligent control, various protection functions |
|
Solar Inverter (Quantity: 1 piece) Pure sine wave inverter: (full power single phase) DC input: 360v AC charger 15-20A 100% Germany brand IGBT materials Double protection, easy after sales service O/P: 220V 380V 415V 50/60HZ Product Size: 785*580*1197mm |
|
|
|
Solar Battery (Quantity: 60 pieces) Capacity: 12V/200AH Full sealed Solar power gel battery, Service life: 6-8 years , Size: 522*240*219mm |
|
Solar Panel Rack (Quantity: 1 set) Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel |
|
|
|
Cables (Quantity: 1 set) 62pcs 32mm2*35CM battery cable 4pcs 50mm2*1M battery cable 4mm2 PV cable 200M Terminals and MC4 |
Is this 30kw solar system single phase output off grid?
Yes, this is 30kw biggest single phase output system, we also supply three phase 30kw system, more details please contact to us discuss.
What loads can be take by the off grid 30kw solar system?
Household appliances: Lights, fans, refrigerators, washing machines, air-conditioners, water pump, microwaves, etc.
| 30000W Solar System Home Appliances Load Reference | |||
| Load Name | Load Rated Power | QTY | Total Rated Power |
| Lights | 11W | 60 | 660W |
| Fan | 80W | 40 | 3200W |
| Computer | 150W | 2 | 300W |
| Refrigerator(240L) | 180W | 2 | 360W |
| Printer | 250W | 2 | 500W |
| Fax machine | 150W | 1 | 150W |
| Washing machine | 300W | 2 | 600W |
| Electric stove | 1000W | 2 | 2000W |
| Microwave | 1500W | 2 | 3000W |
| Rice cooker | 1000W | 2 | 2000W |
| Electric cooker | 300W | 1 | 300W |
| Air conditioner(1HP) | 750W | 8 | 6000W |
| Air conditioner(3HP) | 2250W | 2 | 4500W |
| Satellite TV receiver/VCD | 50W | 4 | 200W |
| Color TV(32 inch) | 150W | 4 | 600W |
| Water Pump | 200W | 2 | 400W |
| Total | 24470W | ||
|
This example is just for reference. But your load can be less than 30kw |
|||
|
Remark: Refrigerator, air conditioner & water pump is inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first |
|||
If this 30kw solar system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you
how to install 30kw solar system?
| Solar Power System Projects |
check here can see more this 30kw single phase solar system case
| Tanfon Solar Products Feedback from Customers |
Why Choose Tanfon?
Quality:
Each set solar power system has tested by power-off test of 100 times per hour.
Service:
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Efficiency:
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
| Tanfon Factory Picture |
| Solar Products FAQ |
|
Q: What 30kw home solar system can carry? A: TV, COOKING matchine, air conditioners, fans, computers, lights, etc. |
|
Q: Is the system solution always the same? Can I customize one? A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 12kw system may be with different configuration. |
|
Q: Who arranges the shipping? A: We could help you arrange the shipment, we have good service forwarder in Guangzhou. |
|
Q: What is the lifetime of the solar power system? A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years. |
|
Q: What is the package? A: solar panel and battery pallet packing PV combiner and hybrid inverter wooden box Bracket and cable carton box packing |
|
Q: What can Tanfon supply? A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service. |
