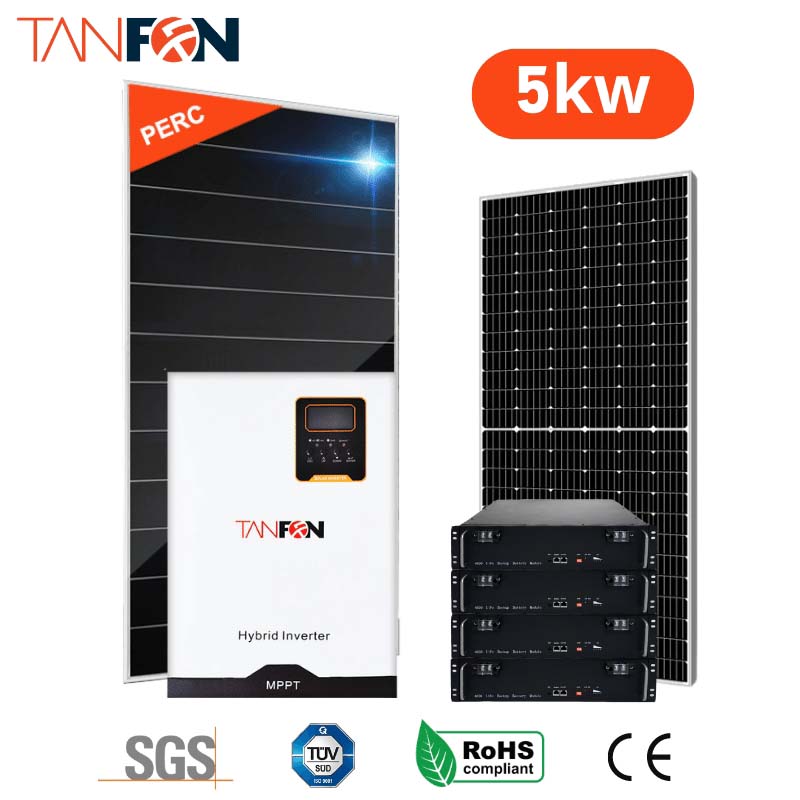

5KW 5KVA Solar Power System

TANFON Solar Manufacturer since 2007, German technical solar products, Home solar system, Industrial & Commercial Solar System, 50000+ successful cases, Serving 160 countries, Professional Solar Solutions

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar Manufacturer

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

TANFON Solar Manufacturer since 2007, Professional technical team, German technical solar products, Home solar system, Industrial & Commercial Solar System, Serving 160 countries. Get Quote Now.

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service



Global Certification

Each component is certified, components work perfectly together for maximum efficiency, Before leaving the factory, our testers will conduct burn-in test, The goal is to get the product to the customer and functioning properly. Solar panel up to 25 years warranty.

Suitable For Many Modes

Off grid solar system, grid tie solar system, hybrid solar system are suitable for house, commercial, industrial use, and provide professional installation advice.

Solar System With IoT

With the powerful TANFON IoT, you can check the working status of the system on your mobile phone and computer at any time, and you can receive maintenance reminders and extend the warranty in time.


SP-5KW Daily power generation: <25.2KWH
Battery Storage:9.6KWH

01 Solar panel
Maximum 600W solar panel optional
Shingled solar panel, USA Technology, higher efficiency, longer life
Vmp:38.39V Voc:47.13V Imp 9.25A
25 years life time (CE TUV)
Coated steel Glass:3.2mm Tem pered
Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

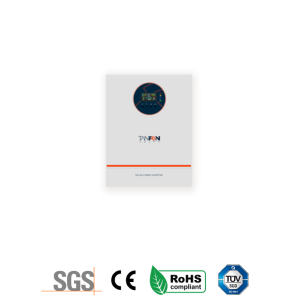

02 Solar inverter

Integrated solar inverter controller
Rated Power: 5500W
System DC voltage Monitoring Option Inverter Output: 230 VAC Wifi or Gprs
AC Voltage: 230VAC ± 5%
Surge Power: 10400VA
Peak Efficiency: 94%
TansferTime: 10 ms (For Personal Computers): 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
Max. PV Array Open Circuit Voltage: 500 VDC
Max. PV Array Power: 6000W
Operating Voltage MPPT Range: 120-450 VDC
Battery Overcharge Protection: 63 VDC
Max. Solar Charge Current: 100 A
Max. AC Charge Current: 100A
Max. Charge Current: 100A

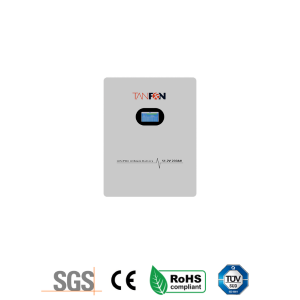

03 Solar battery

Solar battery
The latest through-wall welding technology, more suitable for motor
Service life:6-8 years Size:522*240*219mm

04 Bracket
Slope Rooftop/ Flat rooftop/ground
wind load:55m/s,snow load:1.5kn/m2
structure:Anodized Aluminum+stainless steel, Angle adjustable
(other type of rack can be customized as per client’s requirement)

05 Accessories
Installation Tools
Most Complete Configuration

Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances.
Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect

Solar panel install space:25, Accessories installation space:3-5, (Gel battery system: Total volume:2.5CBM / weight:643KG) (LiFePO4 system: Total Volume:2.3cbm/weight:422kg)


There are too many solar systems with different configurations in the market. Some companies design the configuration at random in order to make it good prices. Our company is based on 15 years installation and maintenance experience, in the case of protecting the solar power system life to make the configuration that meets the requirements of most customers. Contact us customize system.
