7KVA 7KW Off Grid Solar Power System With Battery Storage
7KVA 7KW Off Grid Solar Power System With Battery Storage

7KVA 7KW Off Grid Solar Power System With Battery Storage

The Latest Price Of 7KW 7KVA Solar Power System From The Factory Cost, High Quality Solar And Competitive Price, Three Phase Off Grid Solar Energy System

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON

MOQ: 1 set,Accpet OEM &ODM

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

7KVA 7KW Off Grid Solar Power System With Battery Storage





7KVA 7KW Off Grid Solar Power System With Battery Storage

How do I choose a solar system that can meet my requirements?

1) Home use (5kw and 10kw)

In a family of about 3 bedrooms, more people choose 5KW and 10KW models.If you want to choose a high-quality system, we suggest to choose the IGBT high-end inverter, and use it more safely.

2) School and office (1.5kw-5kw)  Angola, Senegal, Zimbabwe installation

3) Farm use (three-phase 10KW-20KW)  Thailand and Australia installation

4) Hospital project (15kw) Somalia, Kenya installation

5) Government office building (80kw) Kenya Konza City installation

6) Factory project (100kw) Haiti installation

7) Airport project (60KW-200KW) Indonesia, Papua New Guinea installation

8) Large shopping mall (150KW) Iraq installation

9) Village power generation (300kw)  Zambia installation

If you want to know more cases, please go to Tanfon's official website or contact us. Based on 12 years of actual installation experience, we can definitely provide a solar power system that will satisfy you.



Product Description

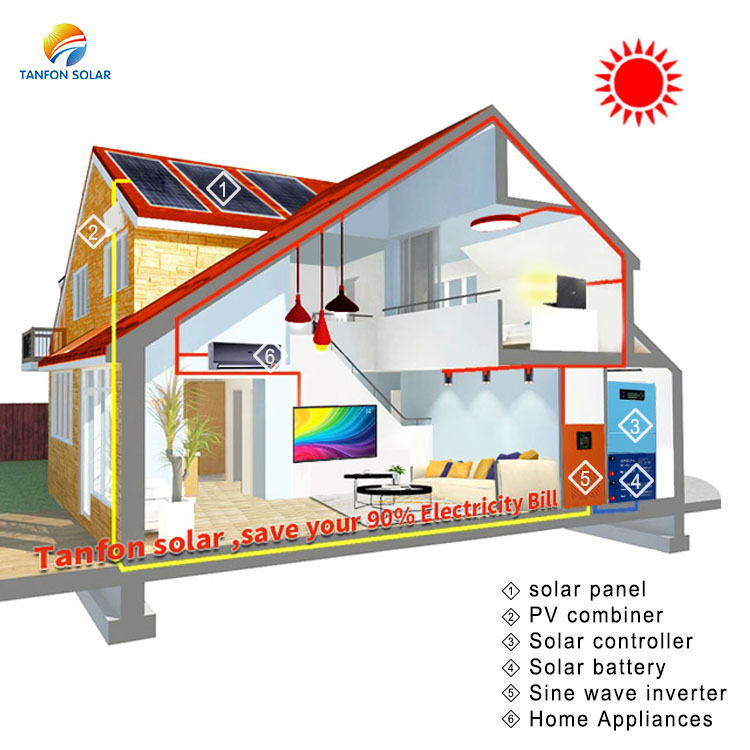

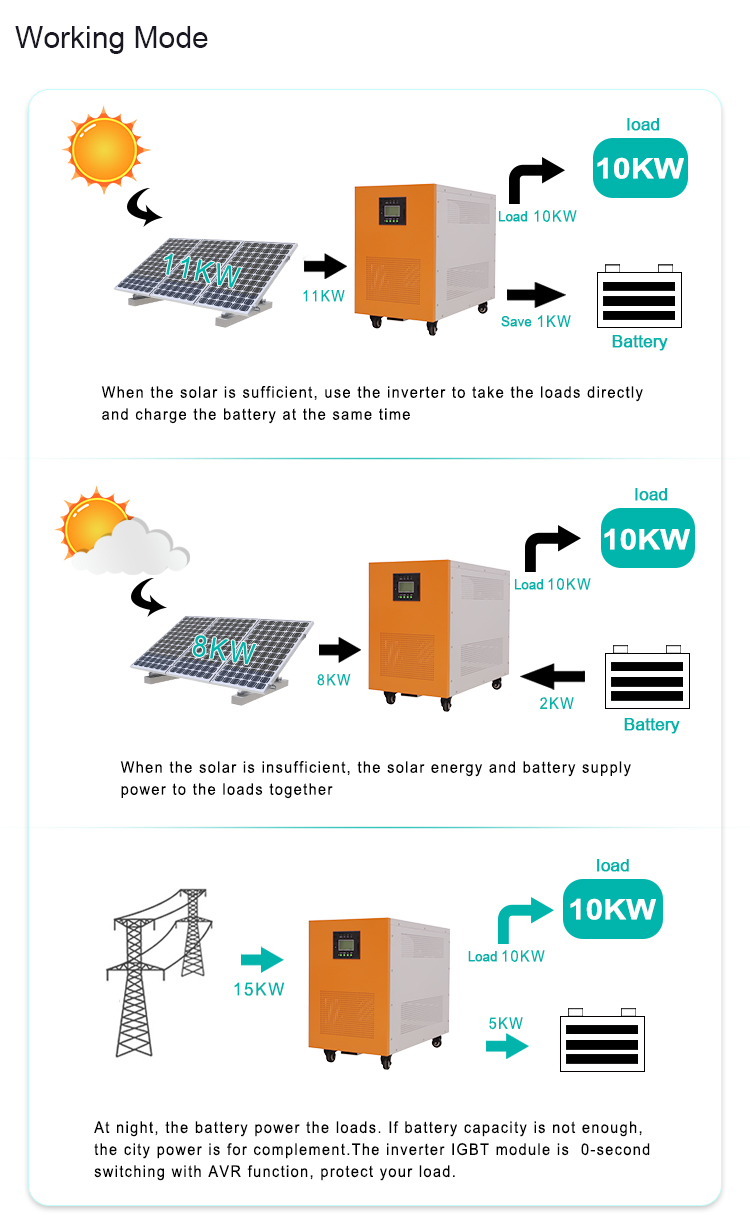

How the off grid solar generator system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.

What's the difference between off grid and on grid solar power system?

Off-grid solar power generator system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On-grid solar power system connects to the power grid, can sell excess electricity to the public grid. In general, it includes solar panels, grid-tie inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

7KVA 7KW Off Grid Solar Power System With Battery Storage

Product Details



TANFON off grid solar power system SP-7KW

7KVA 7KW Off Grid Solar Power System With Battery Storage

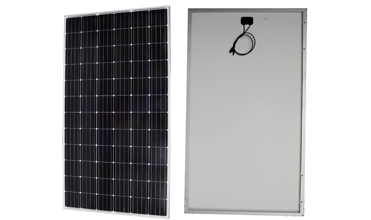

Solar Panel (Quantity: 18 pieces)

Maximum 600W solar panel optional

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

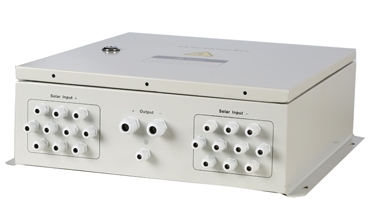

PV combiner (Quantity: 1 piece)

Model: H4T-96v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 360*345*145mm

7KVA 7KW Off Grid Solar Power System With Battery Storage

7KVA 7KW Off Grid Solar Power System With Battery Storage

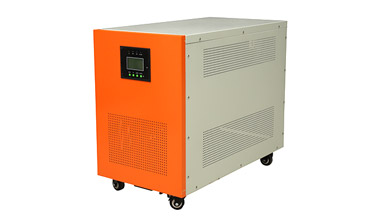

IGBT Solar Inverter (Quantity: 1 piece)

Inverter power: TF7kw/96v

MPPT Controller model: 96v/60A, AC charger: 15-20A

Bypass function with AC charger

Double protection, easy after sales service

O/P: 110V, 220VAC

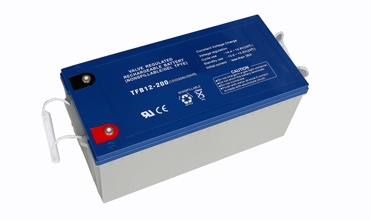

Solar Battery (Quantity: 10 pieces)

Capacity: 12V/200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size:522*240*219mm

7KVA 7KW Off Grid Solar Power System With Battery Storage

7KVA 7KW Off Grid Solar Power System With Battery Storage

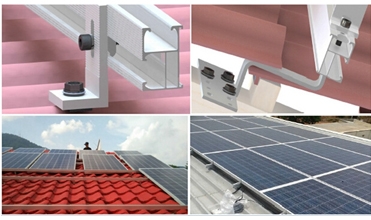

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

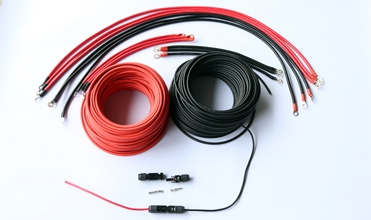

Cables (Quantity: 1 set)

7pcs 32mm2*35CM battery cable

2pcs 50mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

7KVA 7KW Off Grid Solar Power System With Battery Storage



What loads can be take by the off grid 6kw solar system?

Household appliances: Lights, fans, refrigerator, washing machine, air-conditioner, water pump, microwave, etc.

Off grid 7000 watts solar generator load reference
Load Name Load Rated Power QTY Total Rated Power
Lights 11W 8 88W
Fan 80W 2 160W
Computer 150W 2 300W
Refrigerator 120W 1 120W
Printer 250W 3 250W
Fax machine 150W 1 150W
Washing machine 300W 2 600W
Microwave 1000W 1 1000W
Electric cooker 300W 1 300W
Air conditioner(2HP) 1500W 2 1500W
Satellite TV receiver/VCD 25W 1 25W
Color TV 100W 2 200W
Water Pump 200W 1 200W
Total 6893W

This example is just for reference. But your load can be less than 7kw

Remark: Refrigerator, air conditioner &water pump is inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first

If this off grid 5000 watt solar generator configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

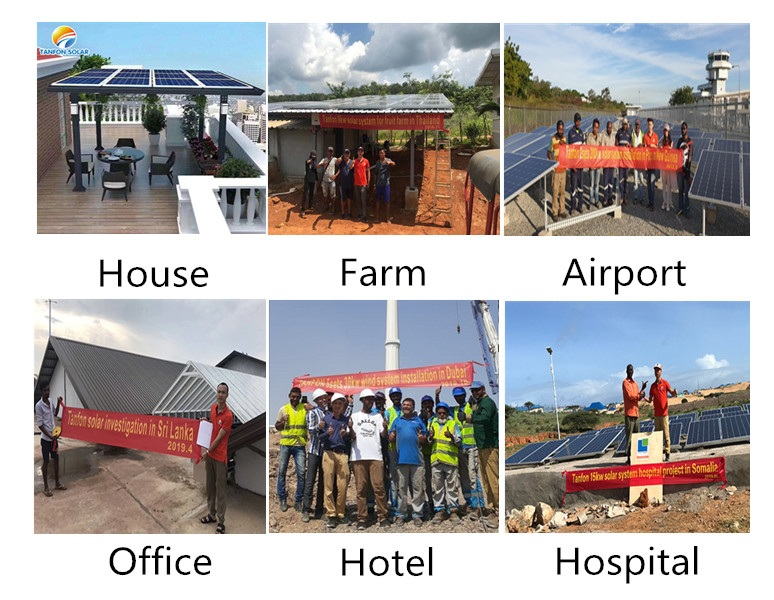

Solar Power generator System Application



7KVA 7KW Off Grid Solar Power System With Battery Storage

Why TANFON is your right Choice?

7KVA 7KW Off Grid Solar Power System With Battery Storage

Quality:

Service:

Efficiency:

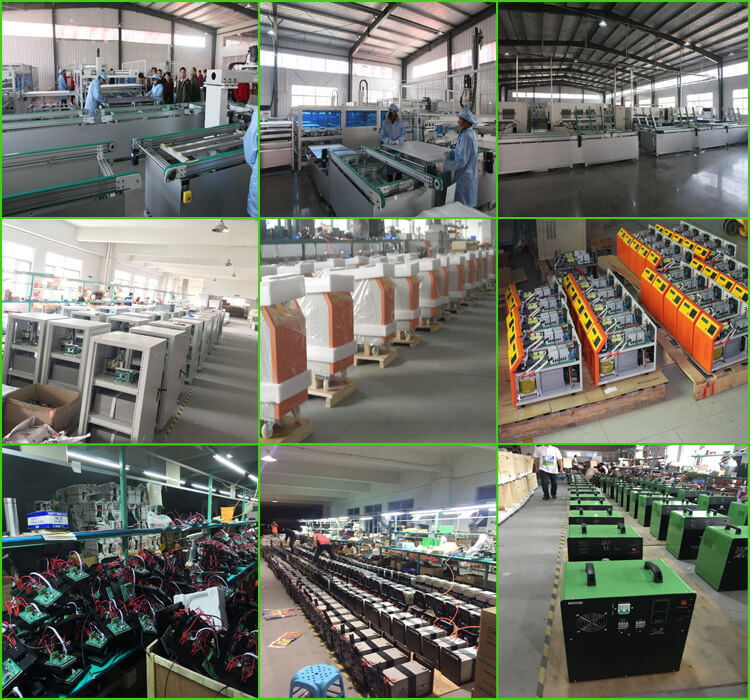

Tanfon Factory Picture





3 phase solar system

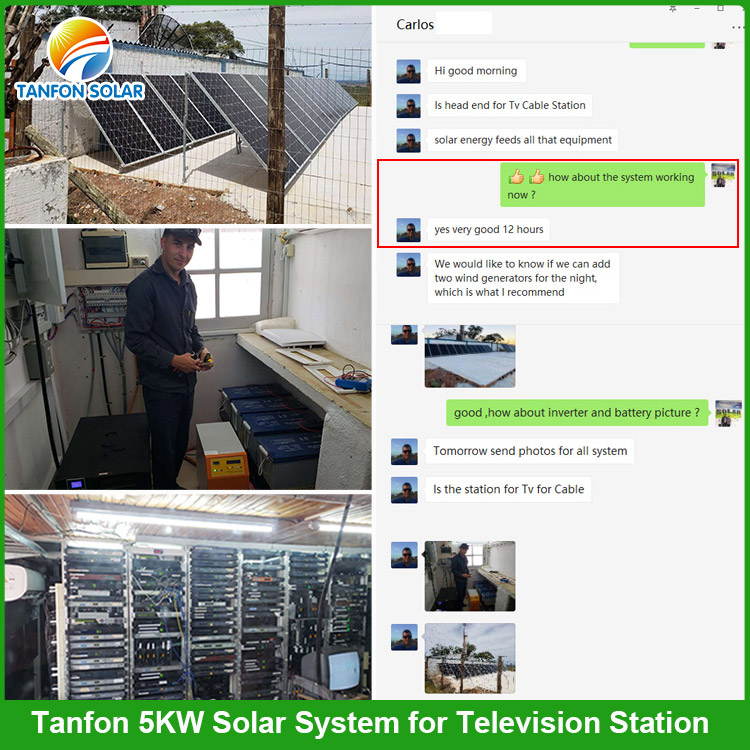

5000w solar generator system project case and feedback

5kw off grid solar system

check here to see this 5kw solar generator system more information

100kw solar system packaging
