Who we are?

Tanfon is TOP10 solar solar Rooftop PV system project factory in china solar electricity for home

What we do?

Expert of  solar Rooftop PV system,industrial solar power generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases

How we do ?

Tanfon solar--German technology, Chinese price, Global service  solar power price

1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.

2).Our Chinese factory is mainly responsible for the supply chain management and production

3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

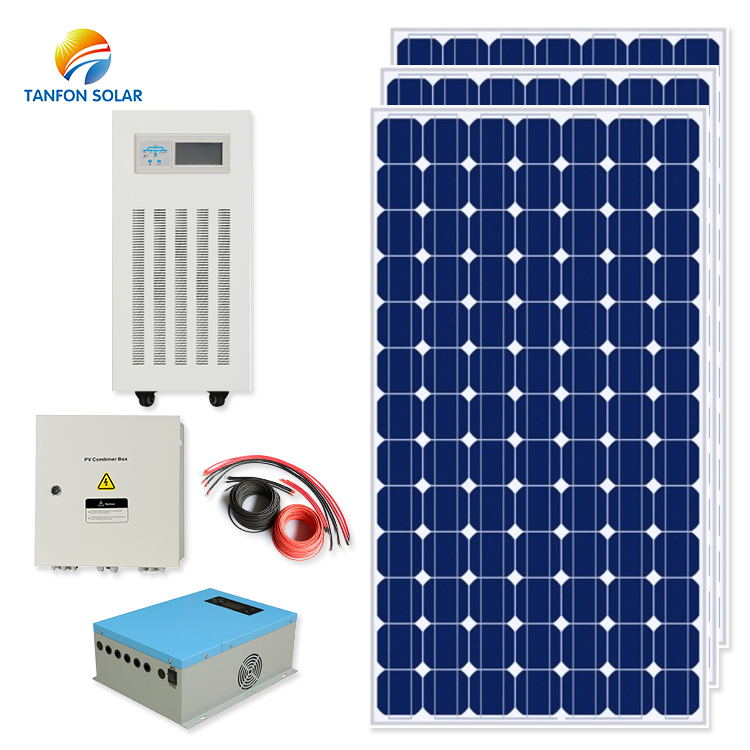

	solar Rooftop PV system Solar Panel (Quantity: 56 pieces) FS355W mono solar panel(poly optional) Vmp: 38.89V       Voc: 47.13V       Imp: 9.25A     Size: 1956*992*40mm Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)
solar Rooftop PV system  combiner (Quantity: 1 piece) Model: H8T-192v Multiple PV strings inputs Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect Wide range of DC input voltage Reliable thunderstorm & surge protection Product Size: 400*425*145mm
	Solar Controller (Quantity: 1 piece) MPPT controller model:192V/80A  Charging efficiency; 90%-95%, charging mode, intelligent control, various protection functions
Solar Inverter (Quantity: 1 piece) Pure sine wave inverter: 20kw(full power) DC input:192v       AC charger 15-20A 100% Germany brand IGBT materials Double protection, easy after sales service O/P: 110V, 220VAC Product Size: 590*470*730mm
	solar Rooftop PV system Battery (Quantity: 32 pieces) Capacity: 12V/200AH   Full sealed Solar power gel battery, Service life: 6-8 years , Size: 522*240*219mm
solar Rooftop PV system Rack (Quantity: 1 set) Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel
	solar Rooftop PV system Cables (Quantity: 1 set) 32pcs 32mm2*35CM battery cable 4pcs 50mm2*1M battery cable 4mm2 PV cable 200M Terminals and MC4

solar Rooftop PV system Easy installation:

If this off grid 20000 watt solar Rooftop PV system configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

Quality:

• Each set solar power system has tested by power-off test of 100 times per hour.

Service:

• Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

• Selling: Three days per time of follow-up services, video inspection.

• After sales: Engineer can be on-site installation service.

Efficiency:

• Project design solution will send to you quickly within 1 hour

• The fastest will be shipped in 7 days

• The engineer will arrive at the installation site within 10 days after the goods arrived at port.

solar Rooftop PV system Customer Real Feedback:

Send Inquiry now!
