10kw solar power system
10kw solar power system

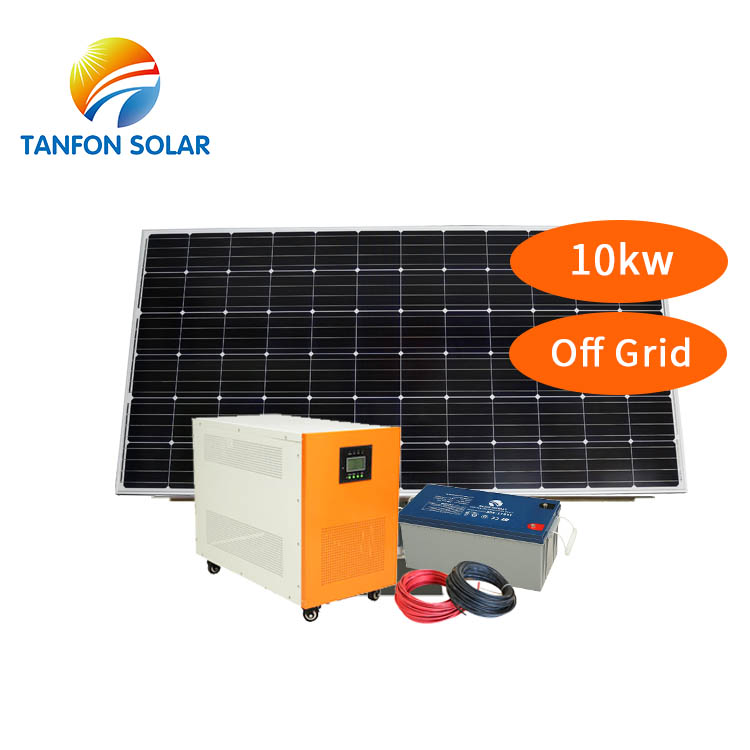

Solar Generator Solar Energy Systems 10kva Solar Station With Solar Panel Suppor

Who we are? Tanfon is TOP10 solar generator project factory in china What we do? Expert of  home system,industrial solar power system generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project

BrandName: TANFON

MOQ: 1 set,Accpet OEM &ODM

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

Who we are?

Tanfon is TOP10 solar generator project factory in china

solar generator

What we do?

Expert of  home system,industrial solar power system generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases



How we do ?

Tanfon solar--German technology, Chinese price, Global service

1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.

2).Our Chinese factory is mainly responsible for the supply chain management and production

3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation

Solar generator Product Details



Solar Generator Solar Energy Systems 10kva Solar Station With Solar Panel Suppor

solar generator

Solar Panel (Quantity: 20pieces)

if you want 500W solar panel design ,contact us

FS350W mono solar generator panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

Solar generator PV combiner (Quantity: 1 piece)

Model: H6T-96v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 360*345*145mm

solar generator

solar generator

IGBT Solar generator Inverter (Quantity: 1 piece)

Inverter power: TF10kw/96v

MPPT Controller model: 96v/100A, AC charger: 15-20A

Bypass function with AC charger

Double protection, easy after sales service

O/P: 110V, 220VAC

Solar generator Battery (Quantity: 16pieces)

Capacity: 12V/200AH

Full sealed Solar power system gel battery,

Service life: 6-8 years ,

Size:522*240*219mm

solar generator

solar generator rack

Solar generator Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar generator Cables (Quantity: 1 set)

14pcs 16mm2*35CM battery cable

4pcs 16mm2*1M battery cable

4mm2 PV cable 100M

Terminals and MC4

solar generator



Easy installation:

solar generator

If this off grid 10000 watt solar generator configuration do not suit for you house used, please send inquiry to us to discuss more, we will make the suitable design system for you

solar generator

solar generator

Solar generator projects:



solar generator

Why TANFON is your right Choice?

Quality:

Service:

Efficiency:



Solar generator Customer Real Feedback:

Send Inquiry now!
