solar power plant 30kva Solar Power System For Electricity Trinidad and Tobago

What Tanfon solar power plant advantage: 24 hours storage design Customzed service Easy installation One stop service Save 90% Electricity Bill Who we are? Tanfon is TOP10 solar power plant project factory in china What we do? E

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Service Center

MOQ: 1 set,Accpet OEM &ODM

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

What Tanfon solar power plant advantage:

24 hours storage design
Customzed service
Easy installation
One stop service
Save 90% Electricity Bill

Who we are?

Tanfon is TOP10 solar power plant project factory in china

solar power plant

What we do?

Expert of  solar power plant,industrial solar power generator since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases



How we do ?

Tanfon solar--German technology, Chinese price, Global service

1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.

2).Our Chinese factory is mainly responsible for the supply chain management and production

3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

solar power plant

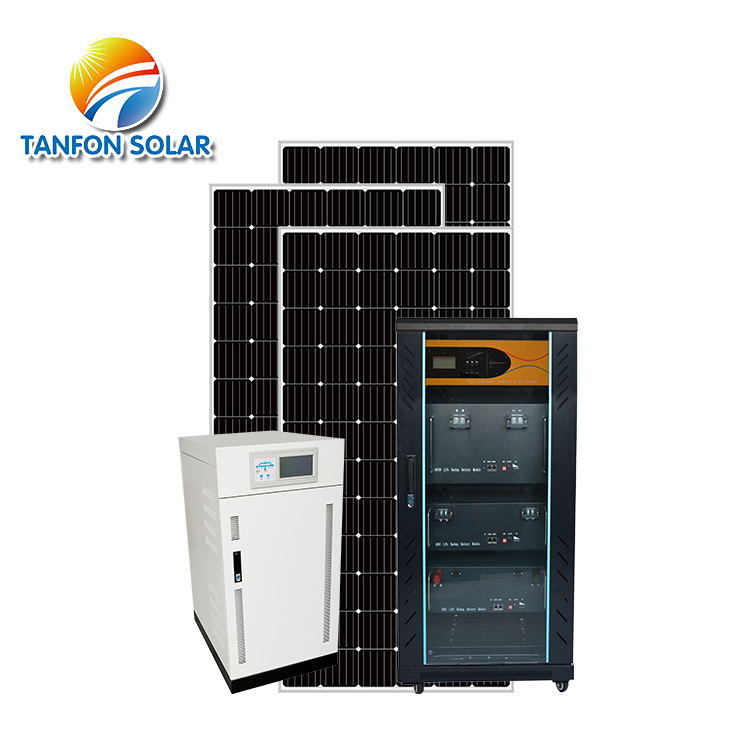

solar power plant Product Details



solar power plant

Solar poer plant Panel (Quantity: 78 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.75A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 1 piece)

Model: H6T-384v Multiple PV strings inputs

Simplify wiring between PV array and controller,

protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

Product Size: 400*425*145mm

solar power plant

solar power plant

Solar power plant Controller (Quantity: 1 piece)

MPPT controller model: 360V/100A

Charging efficiency; 90%-95%,

charging mode, intelligent control,

various protection functions

Solar power plant Inverter (Quantity: 1 piece)

Pure sine wave inverter:

30kw(full power single phase)

DC input: 360v       AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P: 220V 380V 415V 50/60HZ

Product Size: 785*580*1197mm

solar power plant inverter

solar power plant

Solar power plant Battery (Quantity: 60 pieces)

Capacity: 12V/200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 522*240*219mm

Solar power plant Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar power plant

solar power plant

solar power plant Cables (Quantity: 1 set)

62pcs 32mm2*35CM battery cable

4pcs 50mm2*1M battery cable

4mm2 PV cable 200M

Terminals and MC4

solar power plant Easy installation:

If this off grid 30000 watt solar power plant configuration do not suit for you request, please send inquiry to us to discuss more, we will make the suitable design system for you



solar power plant

solar power plant system projects:



solar power plant

Why TANFON is your right Choice?

Quality:

Service:

Efficiency:



solar power plant Customer Real Feedback:

Send Inquiry now!
