Who we are?
Tanfon is TOP10 solar power system project factory in china
What we do?
Expert of home system,industrial solar power system since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases
How we do ?
Tanfon solar powered generator--German technology, Chinese price, Global service
1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.
2).Our Chinese factory is mainly responsible for the supply chain management and production
3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

what is telecom solar power system?

Usually the telecom station will be worked by city power or diesel generators. But now, more and more projects will add the solar system hybrid it.

System Specification

TANFON Telecom Base Transceiver Station BTS- SPT5000W
	FS350W mono solar panel(poly optional) Vmp: 38.39V Voc: 47.13V Imp: 9.25A Size: 195699240mm 25 years life time (CE TUV) Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% Connect way: each 4 pcs in series Quantity: 18 pieces

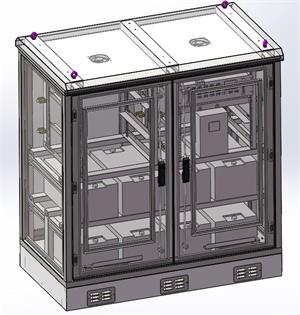

outdoor door Cabinet Can put 8pcs battery and MPPT controller Inverter 5000w IP55 include dc fan 48v Galvanized steel Wooden pallet

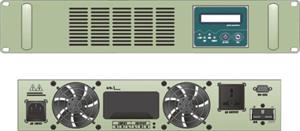

	Telecommunication Inverter power: 5000w/48V(sine wave) DC 48V voltage Output:240vAC(optional) Product size:452484176mm

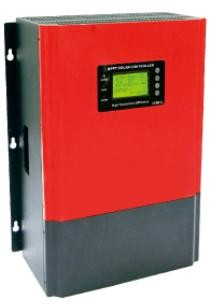

MPPT Controller 100A Max pv input DC150V Low /Over voltage protection，short circuit Protection Product size 27018085mm
Capacity:12V/250AH full sealed Solar power gel battery, Service life:6-8 years , Size:521272219mm Connect way:4pcs connect in series 2 string in parallel to solar inverter
	Slope Rooftop or Flat rooftop Wind load: 55m/s, Snow load: 1.5kn/m2 Structure: Anodized Aluminum + stainless steel, Angle adjustable (other type of rack can be customized as per client's requirement Quantity: 1 set

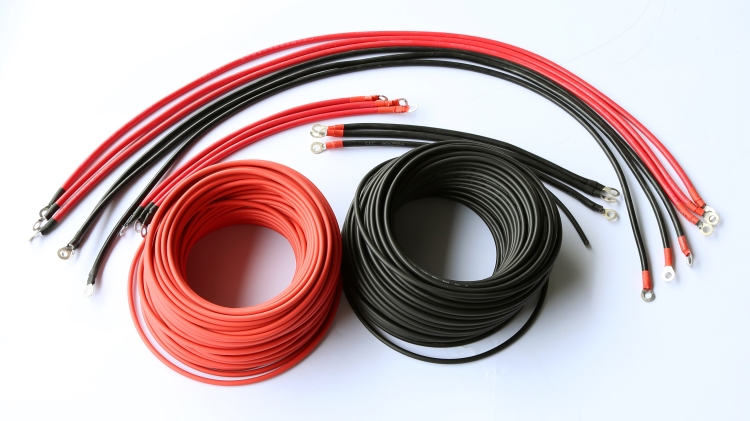

7pcs 16mm²35CM battery cable 2pcs 16mm²1M battery cable 4mm² PV cable 50M Terminals and MC4 Quantity: 1 set

Remark:the system design can base on your request!

produce:

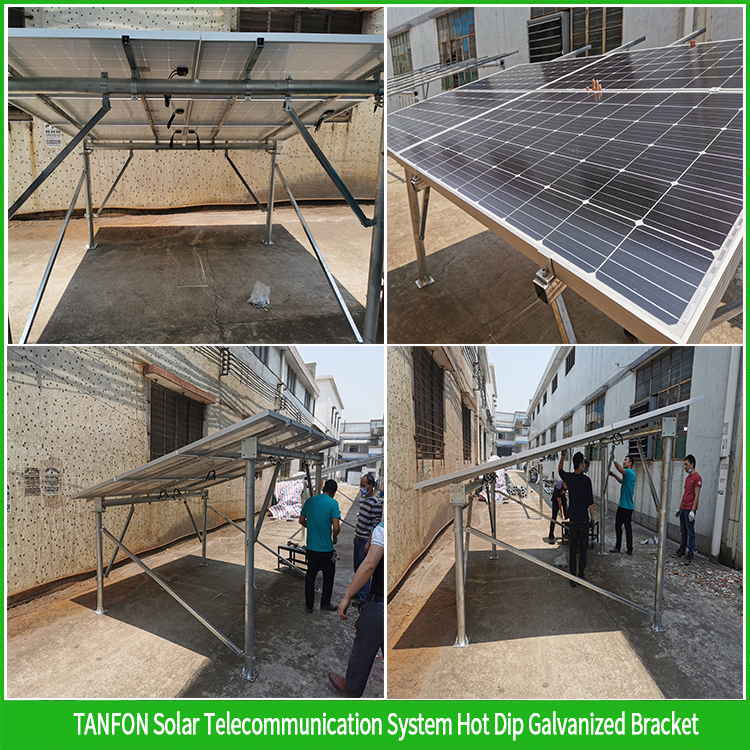

bracket produce:

Telecom power system case

solar case

TANFON Telecom Base Transceiver Station BTS- SPT5000W
	FS350W mono solar panel(poly optional) Vmp: 38.39V Voc: 47.13V Imp: 9.25A Size: 195699240mm 25 years life time (CE TUV) Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% Connect way: each 4 pcs in series Quantity: 18 pieces
outdoor door Cabinet Can put 8pcs battery and MPPT controller Inverter 5000w IP55 include dc fan 48v Galvanized steel Wooden pallet
	Telecommunication Inverter power: 5000w/48V(sine wave) DC 48V voltage Output:240vAC(optional) Product size:452484176mm
MPPT Controller 100A Max pv input DC150V Low /Over voltage protection，short circuit Protection Product size 27018085mm
Capacity:12V/250AH full sealed Solar power gel battery, Service life:6-8 years , Size:521272219mm Connect way:4pcs connect in series 2 string in parallel to solar inverter
	Slope Rooftop or Flat rooftop Wind load: 55m/s, Snow load: 1.5kn/m2 Structure: Anodized Aluminum + stainless steel, Angle adjustable (other type of rack can be customized as per client's requirement Quantity: 1 set
7pcs 16mm²35CM battery cable 2pcs 16mm²1M battery cable 4mm² PV cable 50M Terminals and MC4 Quantity: 1 set

solar power solution for indoor outdoor Telecom Base Transceiver Station BTS
