0.5MW 1MW 2MW 10MW 5MW ESS Container Energy Storage System
0.5MW 1MW 2MW 10MW 5MW ESS Container Energy Storage System

0.5MW 1MW 2MW 10MW 5MW ESS Container Energy Storage System Off On Grid Solar

The Latest Price Of 0.5MW 1MW 2MW 10MW 5MW ESS Container Energy Storage System Off On Grid With Solar Power Battery, Cost High Quality Solar And Competitive Price, Three Phase Off Grid Solar Power System

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

0.5MW 1MW 2MW 10MW 5MW ESS Container Energy Storage System Off On Grid With Solar Power Battery

2MW solar energy storage system

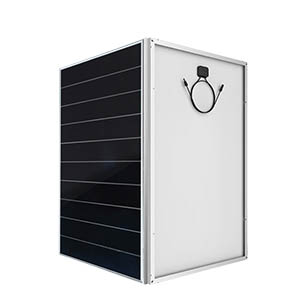

Solar paneL Parameter

Maximum power at STC (Pmax)

550W

Optimum operating voltage(Vmp)

39.42V

Optimum operating current(lmp)

13.942A

Open-circuit voltage(Voc)

48.077V

Short-circuit current(lsc)

14.672A

Module Efficiency(%)

21.66

NOCT(Air 20°C;Sun 0.8kW/m wind 1m/s)

47±2℃

Operatingtemperature

-40℃ to 85℃

Maximum system voltage

1500V DC





Battery configuration

Item

Parameter

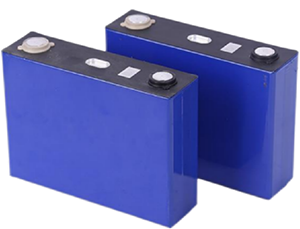

Battery cell (LiFePO4)

3.2V/280AH

Composition

8 PCS in series

Rated voltage

25.6V

Rated capacity

280AH

Rated energy

7.168kWh

Working voltage range

22.4V~29.2V

Maximum continuous charging current

200A

Maximum continuous discharging current

200A

Maximum peak charging current

400A

Discharging ambient temperature

-20℃~55℃

Charging ambient temperature

0℃~45℃

Size

210*755*230mm

Weight

55KG

Comunication protocol

CAN

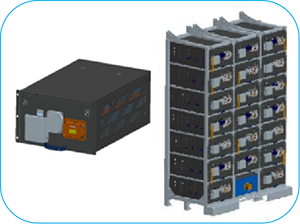

Battery pack configuration

Item

Parameter

Composition

28 pcs in series

Rated voltage

716.8V

Rated capacity

280Ah

Rated energy

200.704kWh

Working voltage range

627.2V~784V

Maximum continuous charging current

200A

Maximum continuous discharging current

200A

Maximum peak charging current

400A

Size

1000*765*2110mm

Weight

1700KG

Protection level of battery cabinet

IP54

BMS structure

Grade 2

System DOD

90%DOD

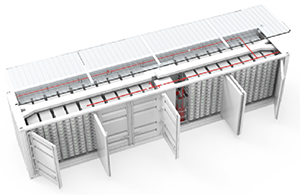

Container lithium battery configuration

Item

Parameter

Composition

28 series and 8 parallel

Rated voltage

716.8V

Rated capacity

2240Ah

Rated energy

1605.63kWh

Working voltage range

627.2V~784V

Maximum continuous charging current

800A

Maximum continuous discharging current

800A

Maximum peak charging current

1600A

Size

10000*2350*3000mm

Weight

21000KG
