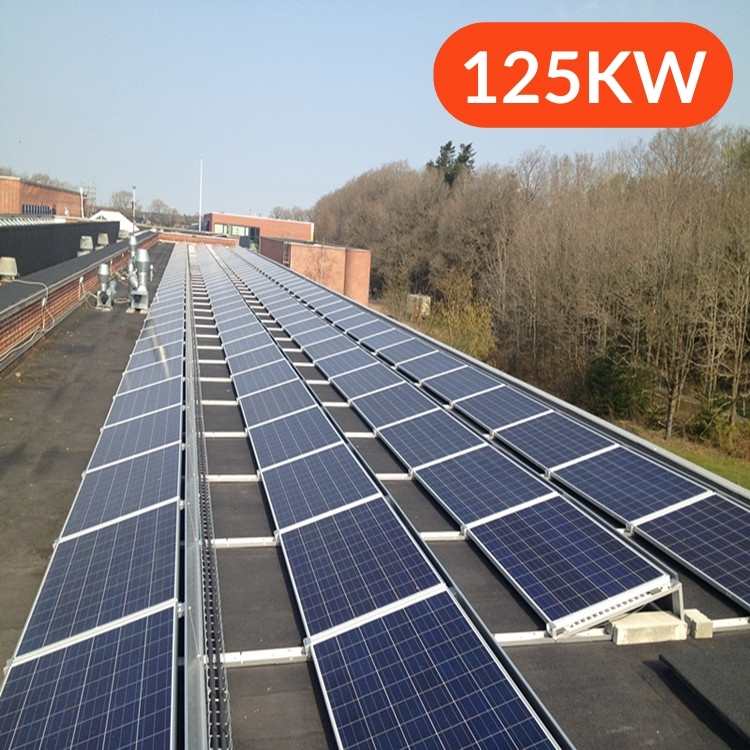

125KW 125KVA Solar Panel System With Battery

(150KW solar system feedback video)

Tanfon Solar Manufacturer since 2007, serving 160 countries, solar panel, solar inverter, solar battery. Home Solar System, Industrial &Commercial Solar System.

Tanfon Supply: Home solar system, Industrial solar system, Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project，solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Malaysia,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Malaysia,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local.

125KVA Off Grid Solar Power System

	Solar Panel (Quantity: 390 pieces) FS600W mono solar panel(poly optional) Vmp: 38.39V  Voc: 47.13V  Imp: 9.75A     Size: 1956*992*40mm Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)
PV combiner (Quantity: 3 pieces) Model: H10T-360v Multiple PV strings inputs Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect Wide range of DC input voltage Reliable thunderstorm & surge protection
	Solar Controller (Quantity: 3 pieces) MPPT controller model: 360v/150A Charging efficiency: 90%-95%, Charging mode, intelligent control. Temperature compensation, Various protection functions
Solar Battery (Quantity: 180 pieces) Capacity: 2V/1200AH   Full sealed Solar power gel battery, Service life: 6-8 years , Size: 479*175*338mm
	Solar Inverter (Quantity: 1 piece) Power Inverter: 125kw     DC input: 360v Output: 380v 220v 50Hz （3phase ） Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection
Solar Panel Rack (Quantity: 1 set) Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel
	Cables (Quantity: 1 set) 25mm2 battery cable 180pcs 6mm2 PV cable 800M battery terminals and MC4 System cable 25mm2 200M

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

Get 125KW Solar System Price Now

About Tanfon Solar Manufacturer

Learn more Tanfon feedback cases

(click to know more details about this project)

Quality:

• Each set solar power system has tested by power-off test of 100 times per hour.

Service:

• Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

• Selling: Three days per time of follow-up services, video inspection.

• After sales: Engineer can be on-site installation service.

Efficiency:

• Project design solution will send to you quickly within 1 hour

• The fastest will be shipped in 7 days

• The engineer will arrive at the installation site within 10 days after the goods arrived at port.
