600kw Off Grid/On Grid For Farm Agriculture Layout Configuration Use

600kw solar system for farm agriculture layout configuration use

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

600kw Off Grid/On Grid For Farm Agriculture Layout Configuration Use





500KW 500KVA Off Grid Solar Power System With Battery Storage

600kw Off Grid/On Grid For Farm Agriculture Layout Configuration Use



Product Description



 How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery. This is very suit for home use.

What's the difference between off grid and on grid solar power system?

Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.



Product Details



600KW 600KVA Off Grid Solar Power System With Battery Storage

500KW 500KVA Off Grid Solar Power System With Battery Storage

Solar Panel (Quantity: 750 pieces)

Maximum 600W solar panel optional

Vmp: 38.39V       Voc: 47.13V       Imp: 9.75A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 4 pieces)

Model: H10T-360v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

500KW 500KVA Off Grid Solar Power System With Battery Storage

500KW 500KVA Off Grid Solar Power System With Battery Storage

Solar Controller (Quantity: 3 pieces)

MPPT controller model: 360v/150A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 350 pieces)

Capacity: 2V/1000AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 479*175*338mm

500KW 500KVA Off Grid Solar Power System With Battery Storage

500KW 500KVA Off Grid Solar Power System With Battery Storage

Solar Inverter (Quantity: 1 piece)

Power Inverter: 600kw     DC input: 360v

Output: 380v 220v 50Hz (3phase )

Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

500KW 500KVA Off Grid Solar Power System With Battery Storage

500KW 500KVA Off Grid Solar Power System With Battery Storage

Cables (Quantity: 1 set)

25mm2 battery cable 180pcs

4mm2 PV cable 800M

battery terminals and MC4

System cable 25mm2 200M

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

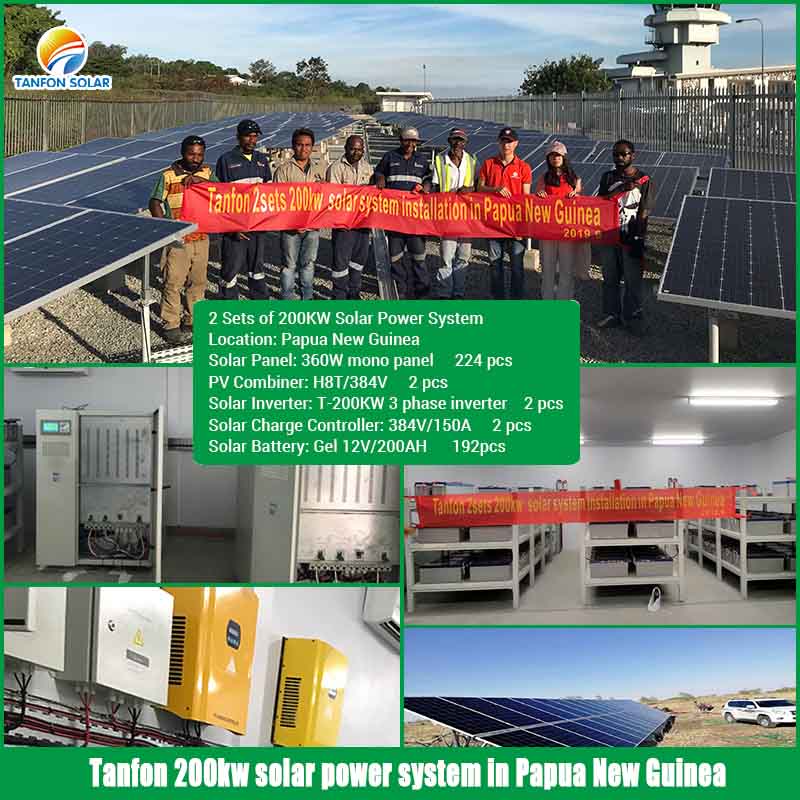

Solar Power System Projects
