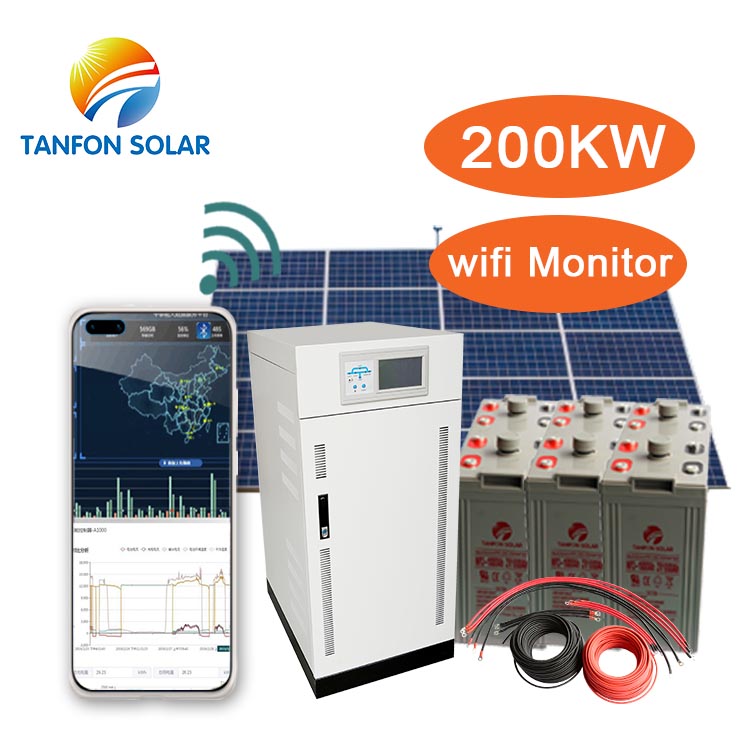

The Maximal Power 200KVA Ground Mount Commercial Solar System

Solar Energy Storage System supplier, solar panel, pure sine wave Inverter, PV combiner, solar controller, Solar Battery

BrandName: TANFON

MOQ: 1 set,Accpet OEM &ODM

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

Solar Energy Storage System supplier, solar panel, pure sine wave Inverter, PV combiner, solar controller, Solar Battery

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

The Maximal Power 200KVA Ground Mount Commercial Solar System



200KW solar energy installation

Product Description





How the off grid solar system working?
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery.

What's the difference between off grid and on grid solar power system?

Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.



Solar Energy Ssytem Product Details



The Maximal Power 200KVA Ground Mount Commercial Solar System

solar panel mono 300w

Solar Panel (Quantity: 520 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.75A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 4 pieces)

Model: H10T-360v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

how to connect  solar panel

solar energy panel

Solar Controller (Quantity: 4 pieces)

MPPT controller model: 360v/150A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 180 pieces)

Capacity: 2V/1500AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 479*175*338mm

solar panel system

30kw inverter 3 phase 380V output

Solar Inverter (Quantity: 1 piece)

Power Inverter: 200kw     DC input: 360v

Output: 380v 220v 50Hz (3phase )

Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

25mm2 battery cable 180pcs

6mm2 PV cable 800M

battery terminals and MC4

System cable 25mm2 200M

200kw solar connect way

If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.

Solar electricity installation projects



portable solar system solar generator system solar installation system

Events Room solar panel system for night market elertricity supply

Medical aid station solar system

Sales kiosk solar installation system

Container house installation solar system Apartment solar system Poultry farm solar system

Container house installation solar system

Apartment solar system

Poultry farm solar system

Rural community electricity supply solar power system Hotel used solar power system Solar Panel Power system for farm
Rural community electricity supply 20KW solar power system

Hotel used solar power system

Solar Panel Power system for farm

Solar power system for water treatment equipment Military base power supply solar system project solar power system for small motel

Solar power system for water treatment equipment

Military base power supply solar system project

solar power system for small motel with 6-8 bungalows in small islan

200kw electricity solar Equipment

Tanfon Airport Projects200kw solar plant system(click to know more details about this project)





2 megawatt power solar system



Why Choose Tanfon?

Quality:

Service:

Efficiency:



solar energy system design



Solar power system feedback





solar power feedback

Tanfon Factory Picture



3 phase solar system

100kw solar system packaging



Solar Products FAQ



Q: What can be included for this system from TANFON?

A:This system includes: Solar panels, PV array combiner, Solar inverter, Solar controller, Gel free maintenance battery, Solar panel rack, cables.,etc.

Q: Is the system solution always the same? Can I customize one?

A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 200kw system may be with different configuration.

Q: What is the 200KW solar system complete set package?

A: solar panel and battery pallet packing

PV combiner and hybrid inverter wooden box

Bracket and cable carton box packing

Q: What is the lifetime of the solar power system?

A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q: What can Tanfon supply?

A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service.
