Top 10 Solar Project Solution Factory In China
off Grid Solar Hybrid System 110V 220V 380V MPPT Pure Sine Wave Inverter
Place Of Origin: Foshan, Guangdong Province, China
BrandName: Tanfon Solar
MOQ: 1 set,Accpet OEM &ODM
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
Solar Power System Three Phase Output Complete Kit Connection Diagram
| Product Description |
How the off grid solar system working:
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power, at the same time charging battery.
What's the difference between off grid and on grid solar power system?
Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.
On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

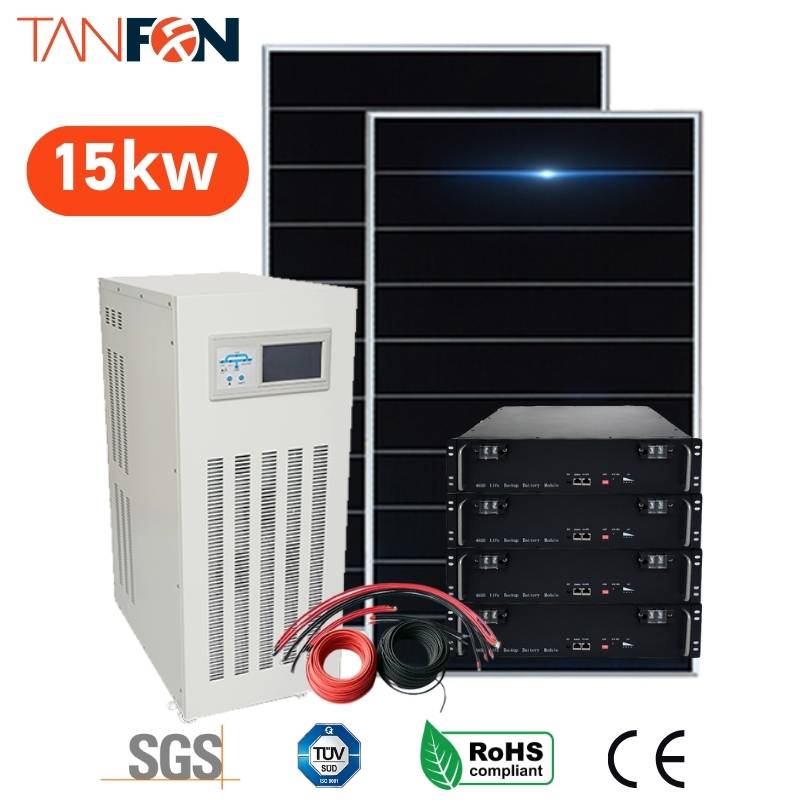

| Solar Energy System Product Details |
|
|
Solar Panel (Quantity: 156 pieces) Maximum 600W solar panel optional Vmp: 38.39V Voc: 47.13V Imp: 9.25A Size: 1956*992*40mm Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS) |
|
PV combiner (Quantity: 2 pieces) Model: H8T-360v Multiple PV strings inputs Simplify wiring between PV array and controller, protections to controller, Prevent hot spot effect Wide range of DC input voltage Reliable thunderstorm & surge protection |
|
|
|
Solar Controller (Quantity: 2 pieces) MPPT controller model: 360v/100A Charging efficiency: 90%-95%, Charging mode, intelligent control. Temperature compensation, Various protection functions |
|
Solar Battery (Quantity: 180 pieces) Capacity: 2V/600AH Full sealed Solar power gel battery, Service life: 8-10 years , Size: 302*176*336mm |
|
|
|
Solar Inverter (Quantity: 1 piece) Pure sine wave inverter 60KW/360VDC input Use copper transformer; Bypass function with AC charger; Product size: 1000*600*1460mm Weight:550KG Output: 220V 380V 415V 50/60HZ |
|
Solar Panel Rack (Quantity: 1 set) Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel |
|
 |
Cables (Quantity: 1 set) 180pcs 16mm2*35CM battery cable 16pcs 16mm2*1M battery cable 4mm2 PV cable 400M 25mm2 battery cable 100M Terminals and MC |
| Solar Power System Projects |
Tanfon Airport Projects 60kw Solar System in Indonesia (click to know more details about this project)
Why Choose Tanfon?
Quality:
Each set solar power system has tested by power-off test of 100 times per hour.
Service:
Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.
Efficiency:
Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
| Solar power system feedback |
| Tanfon Factory Picture |
|
Q: What can be included for this system from TANFON? A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc. |
|
Q: Is the system solution always the same? Can I customize one? A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration. |
|
Q: Who arranges the shipping? A: We could help you arrange the shipment, we have good service forwarder in Guangzhou. |
|
Q: What is the lifetime of the solar power system? A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years. |
|
Q: What can Tanfon supply? A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one-stop service. Q:Will TANFON go to Global Exhibition? A:we hope tanfon team also can meet with you in your country!
|
| Solar Products Certificate |
