Tanfon factory supply: off grid solar system, on grid solar system, on and off grid hybrid solar system, off grid solar system without battery.

Solar Panel System Without Battery Technical advantages:

• Solar off grid system without battery, 35% cost off compared to traditional solar system
• Connect generator And PV complementary
• Wide input voltage range, can adapt to many areas and complex power grid
• GPRS &WIFI network

Solar Panel System Without Battery design bebnefits

• It can be running without batteries, energy share from utility and solar to loads alternatively.
• Without batteries, it can help to reduce the whole solar system cost and more importantly it can save electricity fee.
• It combines a high PV input MPPT controller, it can convert solar energy form PV to loads directly and the same time the remaining solar energy converted to batteries.
• When PV output is reduces by clouds or at night, resulting in no surplus PV power available, loads powered by utility and batteries is charged, when utility outage, batteries discharged.
• Off grid solar system running without battery can help to reduce the cost and save electricity fee, energy share from utility and solar to loads alternatively.

TANFON off grid solar panel kits SPII-2kw(running without battery) Solar panel rated output power: 2000W Suitable for daily power consumption : >20KWH
	FS320W mono solar panel(poly optional) Vmp: 37.04V        Voc: 45.57V         Imp 8.63A     Size : 1956*992*40mm 25 years life time  (CE RoHS) Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80%. 20 year 85%, 10 years 90% Connect: 4pcs connect to PV combiner

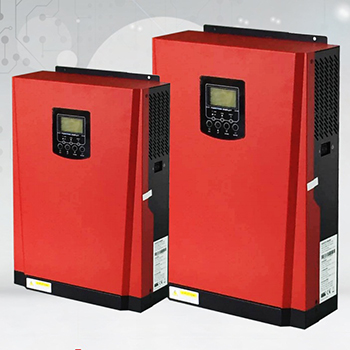

Power capacity: TF-smart-3200-24 MPPT voltage: 120V-500V Rate voltage: 120V-450V Allowed Voltage Range Of Grid: 220V Communication interface: WIFI Warranty: 2 years Inverter size: 100 x 300 x 440mm Weight: 11.5kg Working without battery.
	Slope Rooftop or Flat rooftop including complete fittings wind load: 55m/s, snow load: 1.5kn/m2 structure: Anodized Aluminum + stainless steel, Angle adjustable (other type of rack can be customized as per client's requirement )
4mm2 cable, (one red and one black) International standard, with specification suitable for solar system

• Off grid solar panel kits working without battery

• 3.2kw/5kw full capacity output 220V, 230V, 240V(optional)

• PV input 120VDC-500VDC

• Solar and grid work together at the same time, for example: your power consumption is 5KW/H, you get 4000W/H from PV, inverter will get grid 1000W/H to take load (save electricity bill)

Off grid solar power system inverter working without battery design

We provide complete set solar power system that include all parts for customers, installation tool can be choose. Customers can easy install the system according to our detailed connect diagram and user’s manual.

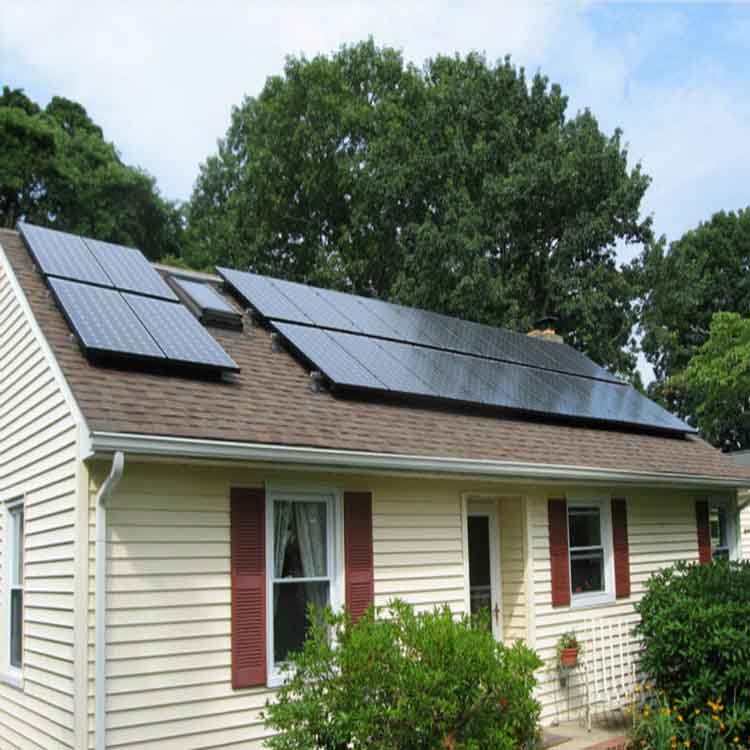

Off Grid Solar Power System project update

Why Choose Tanfon?

Quality:

• Each set solar power system has tested by power-off test of 100 times per hour.

Service:

• Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
• Selling: Three days per time of follow-up services, video inspection.
• After sales: Engineer can be on-site installation service.

Efficiency:

• Project design solution will send to you quickly within 1 hour
• The fastest will be shipped in 7 days
• The engineer will arrive at the installation site within 10 days after the goods arrived at port.

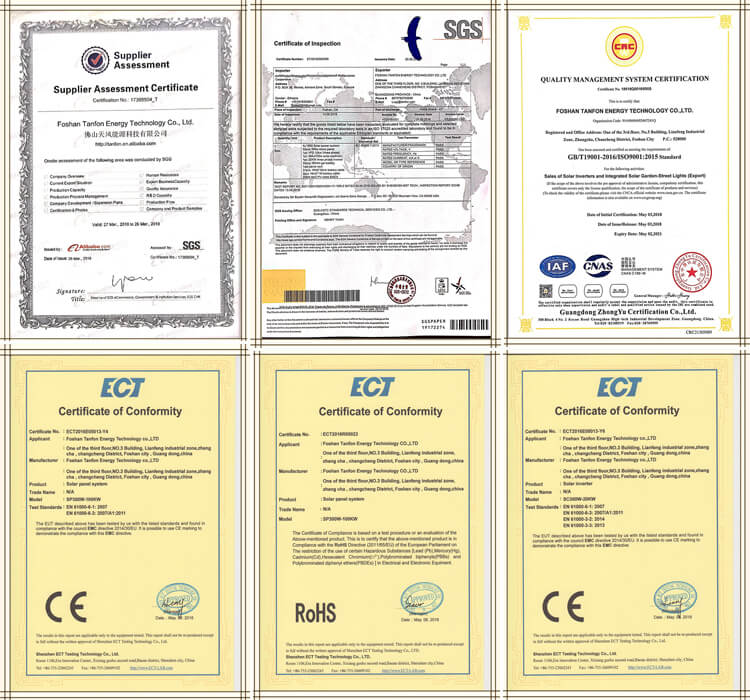

 Tanfon off grid solar panel kits certificates

off grid solar panel kits Shipping

Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
