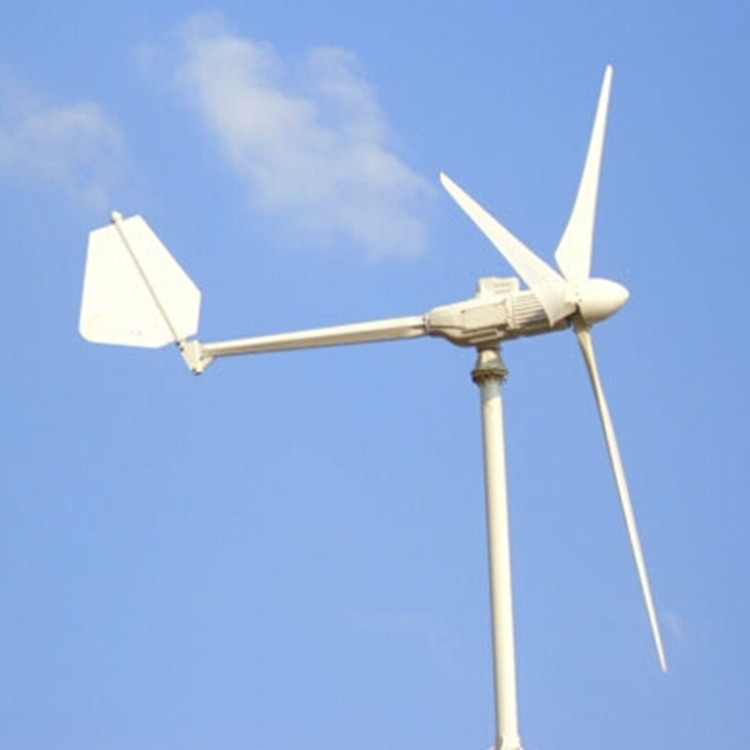

Residential wind power generator 3kw wind turbine kit

Factory introduce:

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar &wind hybrid system(on grid and off grid systems).
For wind system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.

Why choose TANFON wind products?

1. Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
2. Good quality, best price and better technical support and service, make Tanfon energy technology Co.,Ltd as your most valuable cooperator in China.

    (1)Generator use magnetic saturation technology, 20years designed life;

    (2)Low start wind speed;

    (3)Easy to install, it has small volume;

    (4)Anti-twist device, generator can whirl in each direction;

    (5)Anti strong wind, blade use reinforce engineering plastic material;

3. We insist on using good quality raw material whenever and wherever.

4. With customer’s’ praise as an assurance,Tanfon is a guaranteed brand.

TANFON off-grid wind power supply system-FD3000
Wind generator power: 3000W        Annual average energy: 7500kWh Total volume: 1.92CBM                      Total weight: 452KG
Wind Generator (QTY: 1 piece)	Model FD-3000 Rated power 3000W Starting wind speed 3m/s Working wind spped 3-25m/s Rated wind speed 10m/s Security wind speed 40m/s Rated DC voltage 48V Rated speed 300r/m Rotor diameter 3800mm Protection Electromagnetic torque control and electricity brake Type 3phases permanent magnetism synchronization generator Blade material Extra-strong fiber glass Packing material Plywood box and foam material Generator weight(kg) 85KG
Free stand tower Height: 6m tower      Weight: 117KG It helps fasten wind generator in safe altitude. Use steel material with rust prevention. Easy to install
	Wind controller (QTY: 1 piece) Ws3kw/48v wind charger controller Rated Battery Voltage: 48V Wind Turbine Maximum Input: 125A Unload Voltage(factory default): 56V Unload Current(factory default): 60A
Gel Battery (QTY: 4 pieces) Capacity: 12V/200AH, full sealed wind power gel battery Service life: 6-8 years  Size: 522*240*219mm Connect way: 4pcs connect in series connect to solar hybrid inverter
	Off-Grid inverter (QTY: 1 piece) TF3KW/48V pure sine wave three phase wind inverter (import MOS from USA ,IR brand) AC ouput: 110/120/220/230V, with grid charger build-in Protection against overload, short circuit, anti-reverse, discharge, etc.
Cable (QTY: 1 set) 8pcs 16mm2*35CM battery cable connect 4pcs 16mm2*1M battery cable connect 10mm2 cable 100M Battery terminals

Wind Generator Parts

Wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

Tanfon engineer went to guide Wind turbine system installation in Senegal (5kw wind turbine system for home use)

20KW wind Power System installed in Kenya

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar &wind hybrid system(off grid systems).
For wind system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.

Certification supports us

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

Quality is our culture, with us, your business in safe, your money in safe.
