Vertical Wind Power Generator System

    NE5000W wind turbine system  Annual average energy: 12500kwh Wind generator power:5000W Qty Wind tubrine

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar Manufacturer

MOQ: 1 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service





NE5000W wind turbine system

Annual average energy: 12500kwh

Wind generator power:5000W

Qty

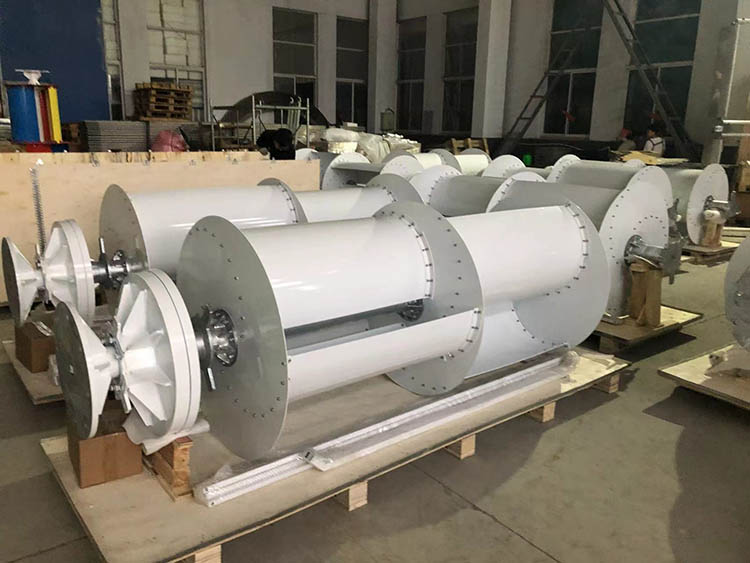

Wind tubrine

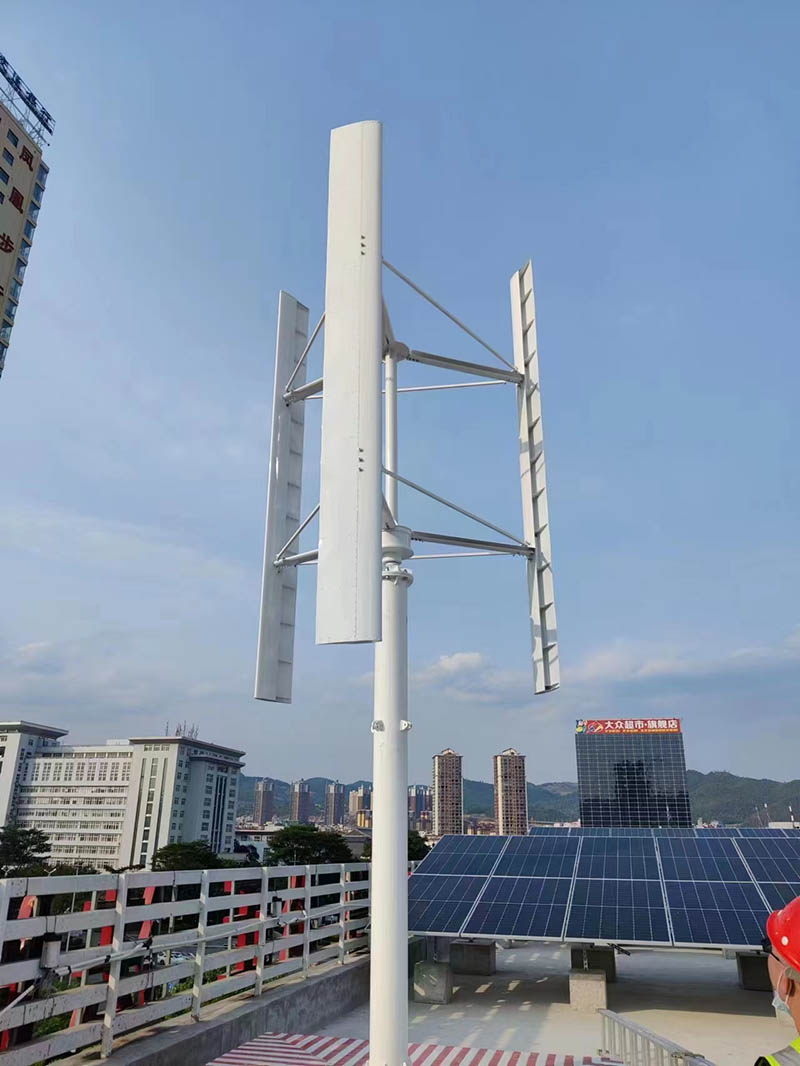

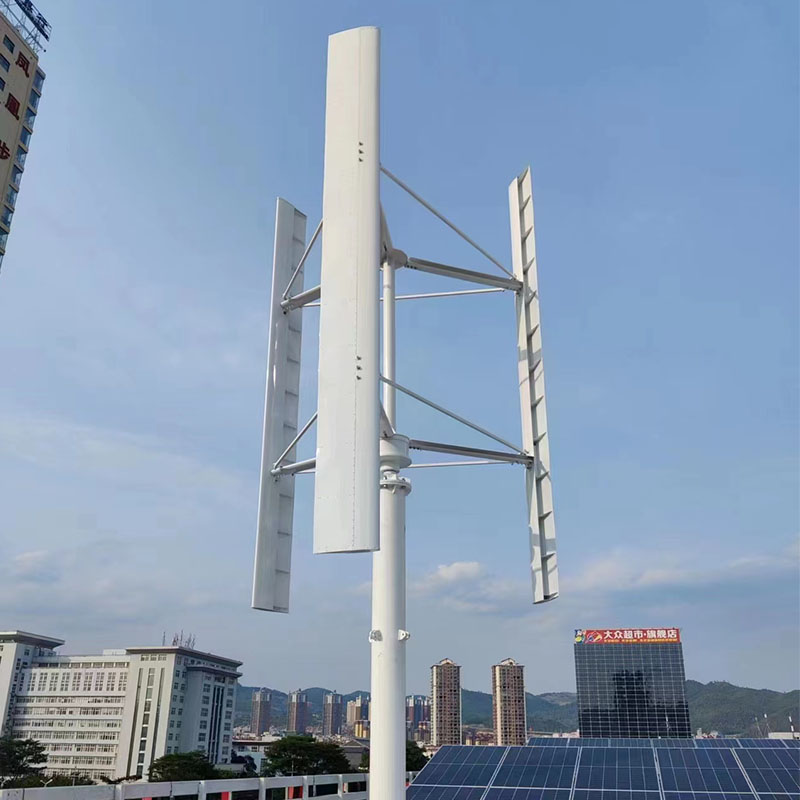

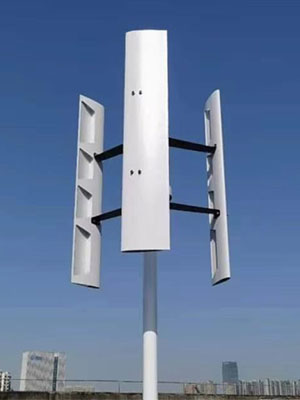

Vertical Wind Power Generator System

Model

NE-5000H

Rated power

5000w

Rate Voltage

96v

Start wind speed

2m/s

Rate wind speed

12m/s

Safe wind speed

45m/s

Rotor height

4.5m

Rotor diameter

3m

Net weight(kg)

1025kg

Blade No,

5

Blade material

Aluminum alloy

Type

3phase permanent magnetism

synchronization generator

Magnetic steel material

NdFeB

Control material

electromagnetic



1pc

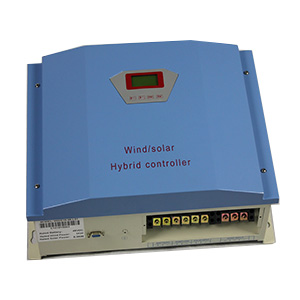

Wind Charge Controller

Vertical Wind Power Generator System

Ws5kw/96v wind charger controller

Wind Turbine Maximum Input: 100A

Unload Voltage(factory default): 112V

Unload Current(factory default): 50A

1pc

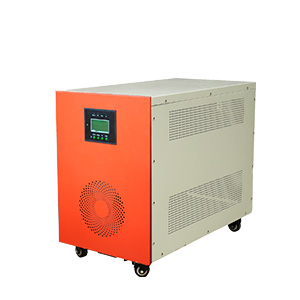

Off-Grid inverter

Vertical Wind Power Generator System

Inverter:5KW96VDC

110V/120V/220V/230V/240VAC output,

City power and generator charger build in Overload, overcharge, over-discharge protection

Fuji brand IGBT material

1pc

Gel Battery

Vertical Wind Power Generator System

Capacity:12V/200AH full sealed

Solar power Gel battery,

Service life:6-8 years ,

Size: 522*240*219mm

8pcs

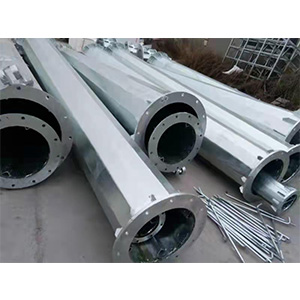

Free stand tower

Vertical Wind Power Generator System

8m tower;

It help fasten wind generator in safe altitude.

Use steel material with rust prevention.

Easy to install

1set

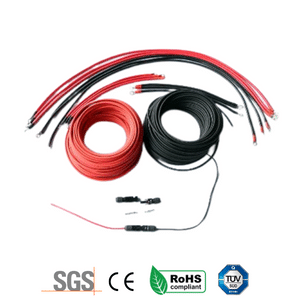

Cables

Vertical Wind Power Generator System

1)16pcs 16mm2*35CM battery cable connect

4pcs 16mm2*1M battery cable connect

2)16mm2 cable 100M

3) Battery terminals +2P 63A Battery switch

1set



Volume:3.5CBM /weight:1300KG





Vertical Wind Power Generator System



Vertical Wind Power Generator System
