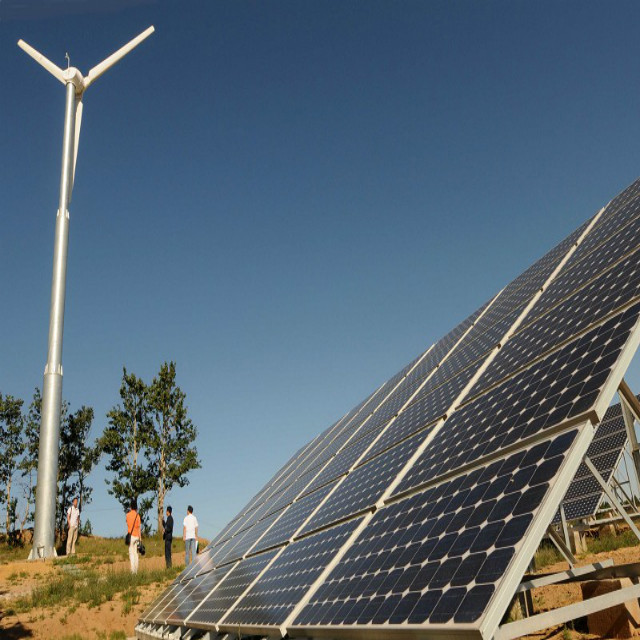

Residential 3kw Wind Solar Hybrid System For Home Use

solar wind generator 3kw wind turbine domestic power   Factory introduce: Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar wind hybrid

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Service Center

MOQ: 1 set,Accpet OEM &ODM

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

solar wind generator 3kw wind turbine domestic power



Factory introduce:

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system product, solar power system product, solar wind hybrid system, solar and wind energy.
For wind system mostly use for household power supply, have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.

Why Choose Tanfon?

Quality:

Service:

Efficiency:

TANFON WSH3KW hybrid power system: 1000w solar + 2000w wind

Solar panel power: 1000W + Wind turbine generator: 2000W

Suitable for daily power consumption: 12.8-15KWH    Allowable Max Loads power: 3KW

Wind turbine generator (Qty: 1pc)

residential wind turbine kits

Model FD-2000
Rated power 2KW
Starting wind speed 3m/s
Working wind spped 3-20m/s
Rated wind speed 9m/s
Security wind speed 40m/s
Rated DC voltage 48V
Rated speed 380r/m
Rotor diameter 3200mm
Protection Electromagnetic torque control and electricity brake
Type 3phases permanent magnetism synchronization generator
Blade material Extra-strong fiber glass
Packing material Plywood box and foam material
Generator weight(kg) 68KG

Free stand tower

Height: 6m tower   Weight: 77KG

Wind turbine generator pole, it helps fasten wind generator in safe altitude. Use steel material with rust prevention.

Easy to install

Wind turbine generator system with pole

solar panel 300W

Solar Panel power(Qty: 4pcs)

FS250W mono solar panel(poly optional)

Vmp: 30V    Voc: 36V      Imp: 8.67A

Size: 1640*992*40mm    25 years life time  (CE RoHS ISO)

Coated steel Glass: 3.2mm Tem pered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90%

A Grade SUNTECH cells of high efficiency 20%

Solar panel power PV combiner (Qty: 1pc)

Model: H4T-48v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

4 inputs PV combiner

wind controller

Solar wind generator controller (QTY: 1pc)

Input 1000W solar power + 2000W wind power

DC 48V input; MPPT intelligent control

Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection.

Solar wind generator Battery (QTY: 8pcs)

Capacity: 12V/150AH, full sealed wind power gel battery

Service life: 6-8 years  Size: 483*170*219mm

Connect way: 4pcs connect in series, then 2 strings in parallel connect to inverter

200Ah gel battery for wind power system

solar wind inverter

Solar wind generator inverter (QTY: 1pc)

Rate output Power: 3KW pure sine wave

DC: 48v; AC: 110v or 220v

With AC charger build-in Protection against overload, short circuit, discharger, etc.

Double protection, import MOS tube and optocoupler

Solar wind generator Cables (QTY: 1 set)

1) 7pcs 16mm2*35CM battery cable connect

    4pcs 16mm2*1M battery cable connect

2) 4mm2 PV cable 500M,10mm2 wind cable 50M

3) terminals and MC4

cables for wind power system
solar panel mounting rack

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

Solar Wind Generator Parts

 wind turbine kits

Solar wind generator Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

Solar Panel Power

solar panel

What's more?

Coated tempered glass replace previous tempered glass, power can improve 5 to 10 watts.

Coated glass can effectively reflect the infrared, Reduce the working temperature of the component, thus reducing the power loss of the component and reducing the influence of the high temperature on the service life of the component raw material. At the same time a large number of UV absorption, Reduce UV damage in EVA and backplane raw materials. reduce UV on the EVA, the backplane of the raw material damage.

Solar PV panel characteristics
  Module Type   FS250-24v
  Maximum power at STC(Pmax)    250W
  Optimum operating voltage(Vmp)   30V
  Optimum operating current(Imp)   8.33A
  Open-circuit voltage(Voc)   36V
  Short-circuit current(Isc)   9.68A
  Short-circuit current temperature coefficient   (0.065±0.015)%/℃
  Open-circuit voltage temperature coefficient     -(80±10)mV/℃
  Peak power temperature coefficient   -(0.5±0.05)%/℃
  NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)      47±2℃
  Operating temperature      -40℃ to 85℃
  Maximum system voltage   600V DC
  Power tolerance   ±3%
  STC   Irradiance 1000W/m2, Module temperature 25℃, AM=1.5



TANFON Solar Wind Hybrid System Project

Tanfon  5kw Solar Wind generator system installation in Philipplines (3kw wind turbine generator and 2kw solar panel power system for home use)

solar wind generator
solar wind generator 3kw

wind turbine generator

TANFON Company

Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling wind power system
product, solar power system product, solar wind hybrid system, solar and wind energy.
For solar wind hybrid system mostly use for household power supply,
have main charger when non-wind. very useful system.Pure sine wave output, can take all inductive loads.
Product sales to (France, USA, Canada,Pakistan, UAE, Bangladesh ect) popular product and new energy leads low carbon life.
Good quality, best price and better technical support and service, make Tanfon
energy technology Co.,Ltd as your most valuable cooperator in China.

solar wind generator company

FAQ

Q1: If I want to buy a solar wind generator, what details I need pay attention to?

A: See if the wind speed can reach the starting speed of the residential wind turbine; the total power loads you want to carry.

Q2: For home use, which one is better?

A: Normally we sell 3kw & 5kw solar wind generator for home use.

Q3: What kind of tower can i choose?

A: Wind turbine generator Guy cable tower & Stand Alone Tower optional

Q4: How many days for delivery?

A: The 10kw solar wind generator normally for 10days. quantity order need about 25days.

Q5: What kind of package?

A: Solar wind generator products, Export Standard Packing: suitable for tough handing and transport

Q6: About the payment?

A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)

    30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C

Certification supports us

wind generator certificate

We accept OEM and small trial orders of solar wind hybrid system, residential wind turbine, contacting with us now for more information. All inquiries will be replied with in 24 hours.

Quality is our culture, with us, your business in safe, your money in safe.
