18000BTU solar powered air conditioner flat plate and Vacuum tube

Who we are? Tanfon is TOP 10 solar project solution factory in china Why Choose Tanfon Solar Air Conditioner/solar AC? To save electricity consumption, save bill cost, what's more, to make a more clean environment. Air Conditioners

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON SOLAR

MOQ: 1pc

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

18000BTU solar AC

flat solar AC

Who we are?

Tanfon is TOP 10 solar project solution factory in china

Why Choose Tanfon Solar Air Conditioner/solar AC?

To save electricity consumption, save bill cost, what's more, to make a more clean environment.

Air Conditioners Consumption Comparison Testing

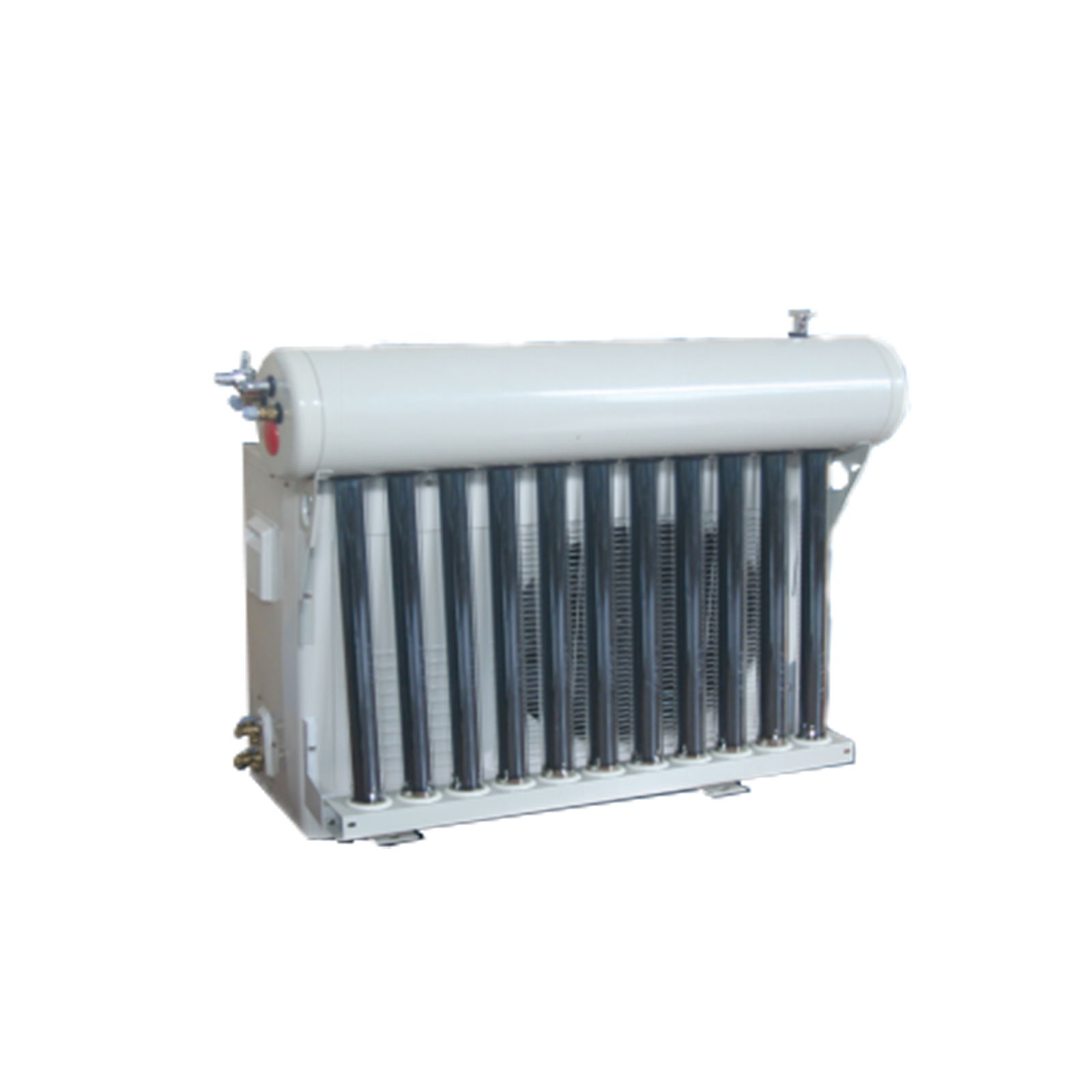

Tanfon Hybrid vacuum tube solar air conditioner 9000BTU-36000BTU
Most affordable
Which can not work off grid
No need solar panels, battery
Energy saving up to 50%
Bule Coating Heat Exchanger
100% Copper Connection Pipes With Insulation
Enviornmently Friendly Gas R410A
Use in tropical areas

Product Description

Our solar air conditioner have the nanometre material filters, can kill the coronavirus in the room, can use for hostpital, classroom,office etc.

Capacity Cooling Btu/h 18000
W 5200
Heating Btu/h 20000
W 6000
Noise indoor dB(A) ≤44
outdoor dB(A) ≤54
Air Circulation m³/h 800
Suitable Area 26~36
EER W/W 3.89
Btu/h/w 13.07
Power Consumption
Power Input Cooling W 1100~1300
Heating W 1100~1350
Rated Current Cooling A 6.30~7.30
Heating A 6.30~7.50
Vacuum Tube Diameter*Length*Pcs 47mm*620mm*11
Dimensions
Indoor Unit Net mm 985*300*220
Shipping mm 1080*380*300
Outdoor Unit Net mm 850*290*580
Shipping mm 995*390*680
Vacuum Tube Shipping mm 980*400*370
Weight
Indoor Unit Net/Gross kg 16/17.5
Outdoor Unit Net/Gross kg 50/52
Solar Collector Net/Gross kg 16/19
Loading Qty in 20feet sets 65
in 40HQ sets 135

solar AC

Working principle



solar air conditioner

Hybrid solar air conditioner

* When the power on, the compressor start working, it compress the refrigerant from low pressure to high pressure, low temperature to high temperature, then discharge to heat exchanger of the solar collector


* In sunshine time ,the vaccum tube can absorb the sunshine to heat the water of the water tank, then the hot water will translate the heating to refrigerant by the exchanger, then help the compressor heat the tempeature and increase the pressure of the refigerant again,

so it just need use the small compressor driver the system running, just use the less power to cool or heat the room,to save more energy.

Workshop

solar air conditionersolar AC

Shipment

solar AC

Global Solar Exhibition

solar air conditioner

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

For more information, please send an inquiry or contact us directly.
