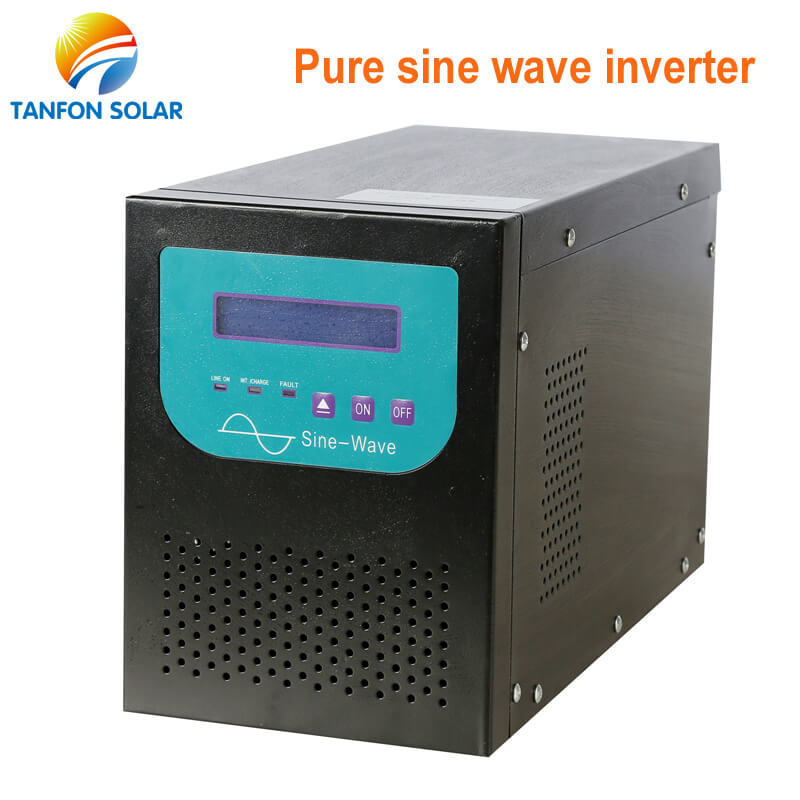

1kw off grid inverter full capacity with AC charger Pure sine wave power inverter; Solar inverter, Wind inverter, Home inverter, Household inverter Foshan Tanfon Energy Technology Co.,LTD which a man
Place Of Origin: foshan
BrandName: TANFON SOLAR
MOQ: 5pcs
industry leading technology
uninterruptible power supply
online service
Pure sine wave power inverter; Solar inverter, Wind inverter, Home inverter, Household inverter
Foshan Tanfon Energy Technology Co.,LTD which a manufacturer for solar system products, wind turbine system products.
inverter with CE certification; 18 months warranty for normal voltage products
(our factory sincerely hope can have good cooperation with you in the feature)
Competitive advantage:
1kw off grid inverter v Used copper transfromer v LCD display v 100% full power v Totally new material, imported MOS tube and optocoupler v Double protections, double temperature controllering design v Bypass function and with AC charger; v 18 months warranty; v CE, RoHS, ISO9001 certification |
Pure Wave Inverter Feature:
Working way below optional:
1.the city power priority: when it have city power, inverter will work bypass output, city power take the load directly; when have both city power and sun power, inverter will charge 2 kinds power to battery.
when city power failed, just charge solar power to battery .
2.battery power priority: when it have sun power, just charge sun power to battery, and take the load, when it has not sun power, inverter will use battery power take the load.
when battery power is lower, inverter will automatically use bypass function to take the load, and charge to battery at the same time.
300W to 20kw pure sine wave inverter data sheet:
Model |
TF300W |
TF500W |
TF700W |
Capacity(W) |
300W |
500W |
700 |
DC voltage(V) |
12/24 |
12/24 |
12/24 |
Input voltage(V) |
160-265VAC |
||
Input frequency |
45-65HZ |
||
Output voltage |
Four steps AVR, 110V/120V/220V/230V for optional |
||
Output wave form |
Pure sine wave |
||
THD |
≤ 3% |
||
Low-voltage protection(V) |
9.8/19 |
9.8/19 |
9.8/19 |
Over voltage protection(V) |
15/30 |
15/30 |
15/30 |
Recharge current |
5-10A |
5-10A |
5-10A |
Unit size(mm) |
348*122*200 |
348*122*200 |
370*122*200 |
Transfer efficiency |
87%--90% |
||
Protections |
Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection |
||
Over load |
120% of the rate capacity |
||
Short circuit |
300% of the rate capacity |
Model |
TF1K |
TF1.5K |
TF2K |
Capacity(W) |
1000 |
1500 |
2000 |
DC voltage(V) |
24/48 |
24/48 |
24/48 |
Input voltage(V) |
160-265VAC |
||
Input frequency |
45-65HZ |
||
Output voltage |
Four steps AVR, 110V/120V/220V/230V for optional |
||
Output wave form |
Pure sine wave |
||
THD |
≤ 3% |
||
Low-voltage protection(V) |
19/39 |
19/39 |
19/39 |
Over voltage protection(V) |
30/60 |
30/60 |
30/60 |
Recharge current |
10-15A |
10-15A |
10-15A |
Unit size(mm) |
388*145*210 |
446*175*300 |
446*175*300 |
Transfer efficiency |
87%--90% |
||
Protections |
Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection |
||
Over load |
120% of the rate capacity |
||
Short circuit |
300% of the rate capacity |
Model |
TF3K |
TF4K |
TF5K |
TF6K |
Capacity(W) |
3000 |
4000 |
5000 |
6000 |
DC voltage(V) |
48 |
48/96 |
48/96 |
48/96 |
Input voltage(V) |
160-265VAC |
|||
Input frequency |
45-65HZ |
|||
Output voltage |
Four steps AVR, 110V/120V/220V/230V for optional |
|||
Output wave form |
Pure sine wave |
|||
THD |
≤ 3% |
|||
Low-voltage protection(V) |
39/78 |
39/78 |
39/78 |
39/78 |
Over voltage protection(V) |
60/120 |
60/120 |
60/120 |
60/120 |
Recharge current |
15-25A |
15-25A |
15-25A |
20-30A |
Unit size(mm) |
473*220*386 |
473*230*490 |
||
Transfer efficiency |
87%--90% |
|||
Protections |
Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection |
|||
Over load |
120% of the rate capacity |
|||
Short circuit |
300% of the rate capacity |
Model |
TF10K |
TF15K |
TF20K |
TF30K |
Capacity(W) |
10000 |
15000 |
20000 |
30000 |
DC voltage(V) |
96 |
96/240 |
240/384 |
384 |
Input voltage(V) |
160-265VAC |
|||
Input frequency |
45-65HZ |
|||
Output voltage |
Four steps AVR, 110V/120V/220V/230V for optional |
|||
Output wave form |
Pure sine wave |
|||
THD |
≤ 3% |
|||
Low-voltage protection(V) |
78 |
78/216 |
216/322 |
322 |
Over voltage protection(V) |
120 |
120/272 |
272/480 |
480 |
Recharge current |
20-30A |
30-40A |
without |
without |
Unit size(mm) |
560*280*680 |
560*320*700 |
900*600*1380 |
900*600*1380 |
Transfer efficiency |
87%--90% |
|||
Protections |
Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection |
|||
Over load |
120% of the rate capacity |
|||
Short circuit |
300% of the rate capacity |
We promise our best quality and after sales service, make TANFON as your most valuable cooperator in China.
Customer's Comment
Why Choose TANFON Products?
1.Sample service
Applicable to quality test,function test etc
2.Repair service
Two year warranty
Contact us ,we will help you quickly find the problem,then give you fast service .
Powerful R&D department can provide professional technical support \
More than 100 pieces ,you can decide the trademark and package
Each inverter has tested by power-off test of 100 times per hour.
Get more Our Thailand factory Test report feedback
FAQ
1.what difference between NW and this TF series inverter?
A:NW is wall type ;TF is wheeled type.
NW model is from 300w-6kw ;TF model can be 300w-30kw;
2.what other advantage for this TF series off grid inverter ?
A:have city power priority and battery priority switch ,
can be produce 2 phase (110V&220V) output voltage for south america market .
3.so how to suggest to the customer between NW and TF series inverter?
A:NW is little higher efficiency ,and Lighter weight,so if customer choose less than 6kw ,can choose NW model,if customer must be need 2 phase output ,choose TF this model .
