Solar energy 30kw 3 phase inverter duty motor 220v or 380v Foshan Tanfon Energy Technology Co., LTD is a professional manufacturer of solar/wind systems inverter (on grid and off grid), solar hybrid control inverter, home UPS inverter ,60kw 3 phase
Place Of Origin: foshan
BrandName: TANFON SOLAR
MOQ: 1pc
Certificate: ISO, ETL, TUV, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
Foshan Tanfon Energy Technology Co., LTD is a professional manufacturer of solar/wind systems inverter (on grid and off grid), solar hybrid control inverter, home UPS inverter ,60kw 3 phase inverter south africa, ontroller, battery ect.
south africa is our one of main market,Tanfon already sales more than 1500sets.

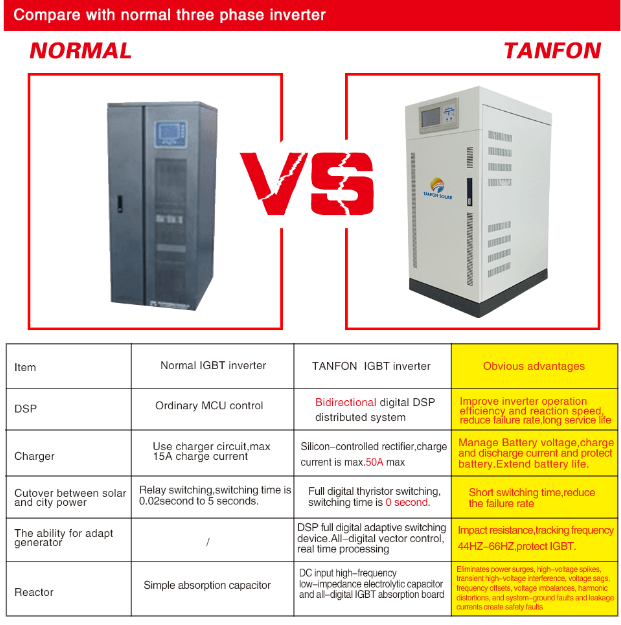

3 phase inverter duty motor compare:
| 30KW 3 phase inverter duty motor inverter |
dc to 3 phase ac inverter with IGBT material functions:
1. With AC reactor (Protect against city power current shock)
2. Double protection. (Two fuses, including the city power security and battery power security)
3. Thyristorcharging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)
4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)
5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)
6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)
7. The Chinese/English language operation interface for choice.
8. Touching display
9. IGBT brand: Mitsubishi (import from Japan)
Thyristor charging brand: Simon Kang Brand(import from German)
10. single to 3 phase converter with transformer ,IGBT materials ,Isolation, output reactance,easy take hostipal's Surgical equipment

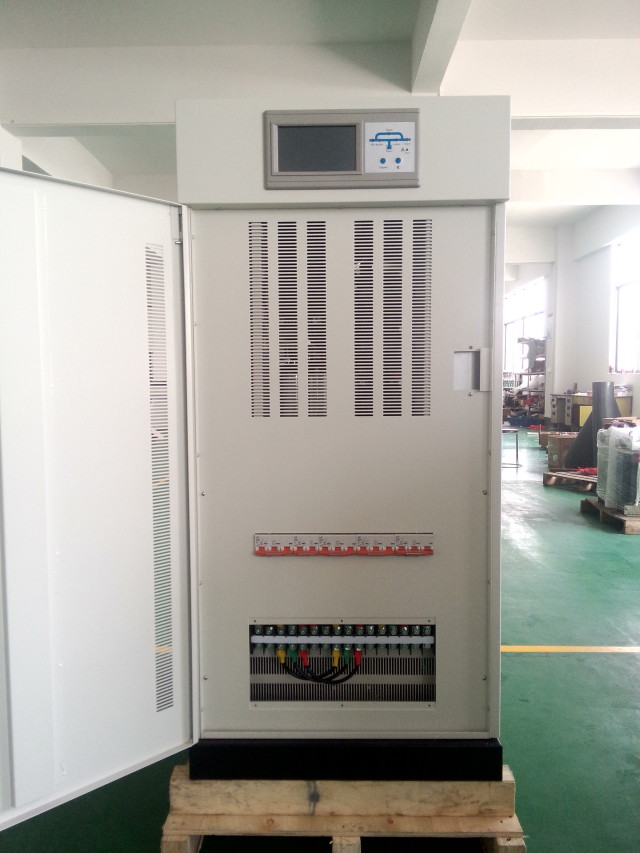

| 3 phase inverter duty motor picture |
Capacity: 30kw 3 phase inverter duty motor inverter
1) Super wide input voltage: 285V-475V
2) Completely controlled by CPU, LCD automatic page turning display
3) Protection against output short-circuits; against overload, and when you throw off its load, it will turn on the unit automatically.
4) Working for single phase and three phases.
5) Also can be designed the hybrid typw, with charger built-in, its charging current is 10A----156A.
6) Make it with 3 pcs PCB box, it is more stable design.
7) Because 3 phase inverter duty motor has anti-inductive spare parts, it is easy to carry the precision equipment of the hospital.(3phase inverter more case, please log here)
| 3 phase inverter duty motor using high quality material |
IGBT
AC reactor
AC filter capacitor
Simon Kang Brand(import from German)
Thyristorcharging IGBT converter
AC and DC fuse
Mitsubishi(import from Japan)
| 3 phase inverter duty motor inverter specification |
|
TANFON 3 phase inverter duty motor |
||
| Model | 30K(3 phase inverter duty motor) | |
| Power | 30000W | |
| Power Factor | 0.8 | |
| Input | Phase | 3 phase 4 wire and ground |
| Voltage Range | 380V±20%(3 phase), phase voltage 220V | |
| Frequency Range | 45-65Hz | |
| Rectifier | 3 phase 6 pulses, 12 pulses is optional | |
| Output | Phase | 3 phase 4 wire and ground |
| Wave form | Pure sine wave | |
| Crest Factor | 3:01 | |
| Rated Voltage | 380/400/415V optional ±1% for static load, 5% forfluctuant load | |
| Phase Voltage setting | 200-244VAC, pls confirm when order | |
| Transient Response | ±5%,10ms | |
| Frequency | 50/60 Hz ±0.05% | |
| Total-harmonic distortion | < 3% linear load, <5%(nonlinear load) | |
| short circuit current | Short current for 0.1s(200% current) | |
| Overload Capacity | Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal | |
| Battery | Battery | Maintenance free lead-acid cell |
| DC Voltage | 384V | |
| Max Charge Current | 6-30A adjustable | |
| Bypass | Type | Static state +manual maintenance bypass |
| Input Phase | 3 phase 4wire and ground | |
| Input Voltage Range | 15% - 25% (the front control panel selectable) | |
| Transfer Time | Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms | |
| Efficiency | Whole unit | >85% |
| Inverter | 93 | |
| Remote Signaling | Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts | |
| Communication Interface | RS232 (SNMP, modem optional) | |
| Running Temperature | 0-40 degree Celsius | |
| Relative Humidity | Less than 95% (without condensing) | |
| Noise at 1 M | Less than 60dB | |
| Degree of protection | IP20 | |
| Applicable Standards | EN50091-1-EMC, EN50091-2LIV.A | |
| Product Size(mm)&Weight(Kg) |
785*580*1197 (252KG) |
|
| Package Size(mm)&Weight(Kg) |
890*740*1200 (270KG) |
|
| 3 phase inverter duty motor for air port project |

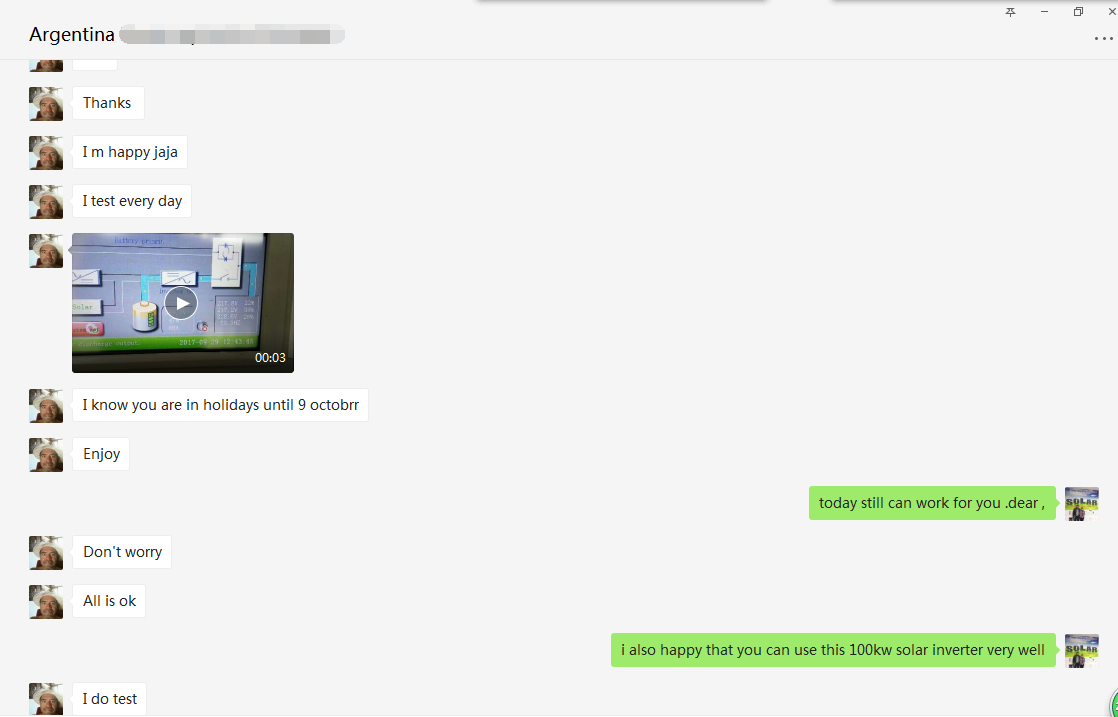

| 3 phase inverter duty motor feedback |

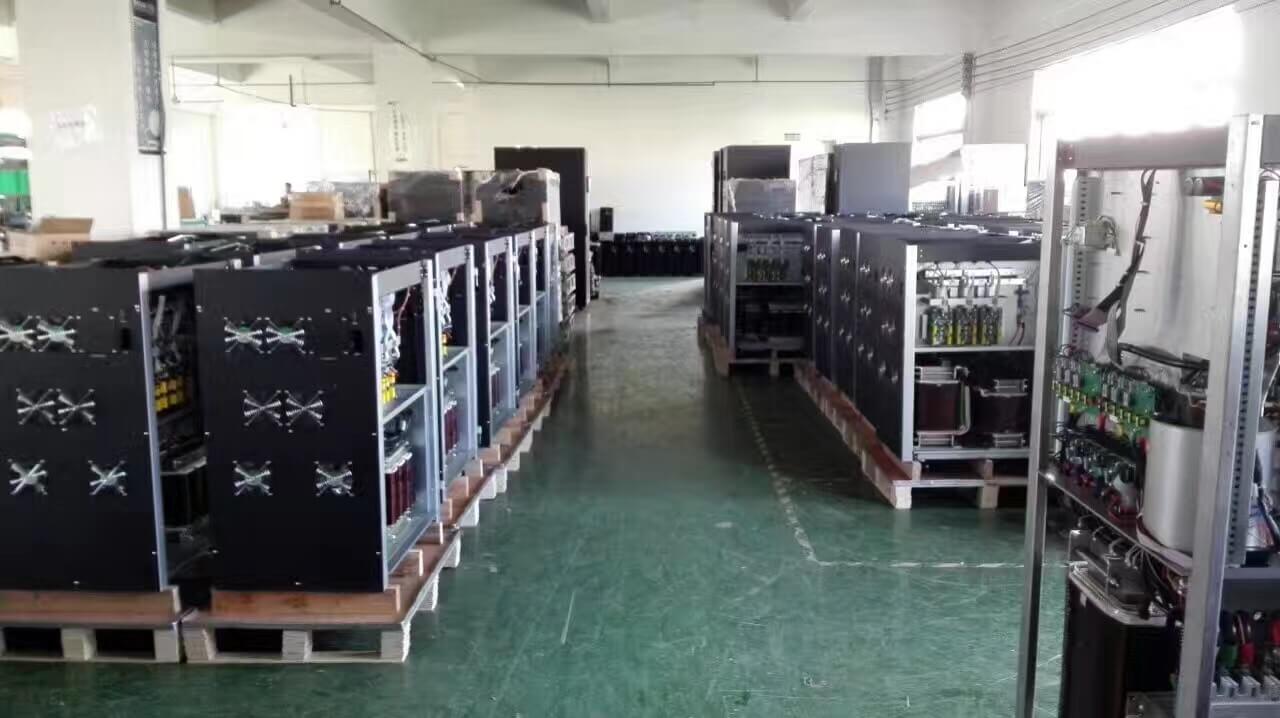

| 3 phase inverter duty motor Factory |
Tanfon dc to 3 phase ac power inverter south africa Factory in Foshan, welcome to visit our factory. (Address: third floor, No.3 Building, Lianfeng industrial zone, Liantang, Zhangcha Chancheng District, Foshan City)
3 phase inverter duty motor produce:

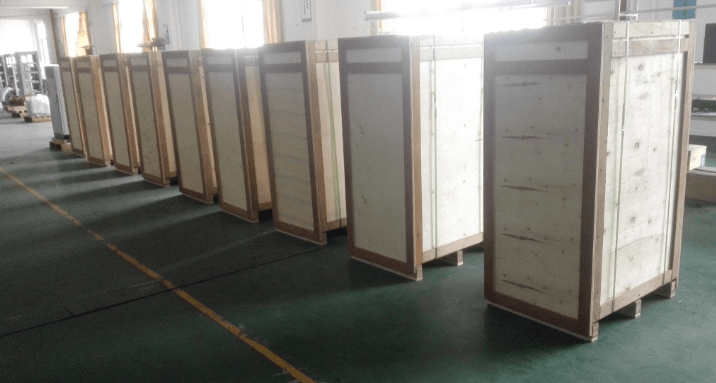

3 phase inverter duty motor packing:
3 phase inverter duty motor certification:
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
