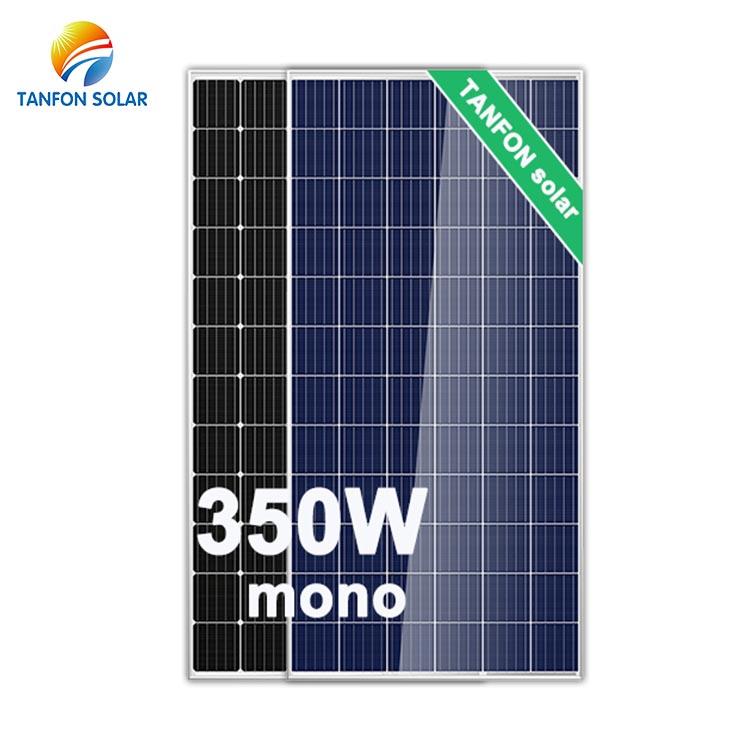

Mono solar panel

Why Choose Tanfon?

Quality:

Each set solar power system has tested by power-off test of 100 times per hour.

Service:

Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.

Efficiency:

Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.

360 watt solar pv panel Features

1) Nominal 24V DC for standard output.

2) High efficiency.

3) Outstanding low-light performance.

4) High transmission tempered glass.

5) Rugged design to withstands high wind pressure and snow load, easy installation.

6) Aesthetic appearance.

7) Design to meet unique demand of customer.

8) 25 year module output warranty.

Solar pv panels 360 watts characteristics
STC: lrradiance 1000W/m²,Module temperature 25℃, AM=1.5
Module Type	FS330-24v
Maximum power at STC(Pmax)	330W
Optimum operating voltage(Vmp)	37.57V
Optimum operating current(Imp)	8.78A
Open-circuit voltage(Voc)	46.34V
Short-circuit current(Isc)	10.72A
Short-circuit current temperature coefficient	(0.065±0.015)%/℃
Open-circuit voltage temperature coefficient	-(80±10)mV/℃
Peak power temperature coefficient	-(0.5±0.05)%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)	47±2℃
Operating temperature	-40℃ to 85℃
Maximum system voltage	600V DC
Power tolerance	±3%
Size	195699240mm
