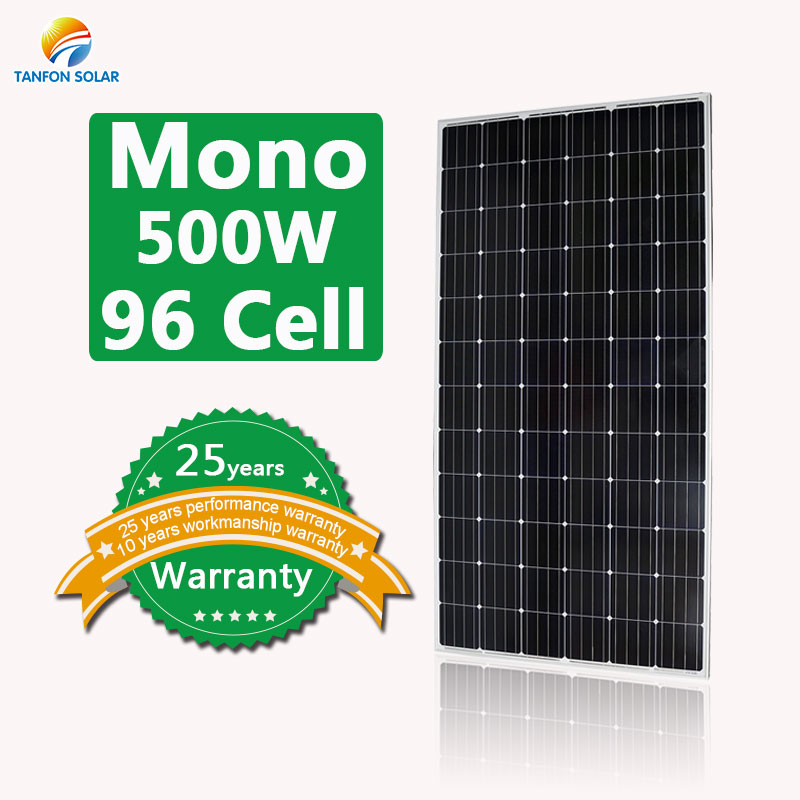

Tanfon high efficiency 36V mono 96 cell 500W solar panel

  FSM 500W solar panel features   1) Nominal 36V DC for standard output. 2) High efficiency. 3) Outstanding low-light performance. 4) High transmission tempered glass. 5) Rugged design to withstands high

Place Of Origin: Guangdong,China

BrandName: TANFON

MOQ: 1000watt

Certificate: ISO, ETL, TUV, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

350 watt 72 cell mono solar panels for house



FSM 500W solar panel features

1) Nominal 36V DC for standard output.

2) High efficiency.

3) Outstanding low-light performance.

4) High transmission tempered glass.

5) Rugged design to withstands high wind pressure and snow load, easy installation.

6) Aesthetic appearance.

7) Design to meet unique demand of customer.

8) 25 year module output warranty.



FSM 500W solar panel electrical characteristics

Maximum power at STC(Pmax)

500W

Optimum operating voltage(Vmp)

48.63V

Optimum operating current(Imp)

10.28A

Open-circuit voltage(Voc)

58.95V

Short-circuit current(Isc)

10.87A

Short-circuit current temperature coefficient

(0.065±0.015)%/℃

Open-circuit voltage temperature coefficient

-(80±10)mV/℃

Peak power temperature coefficient

 -(0.5±0.05)%/℃

NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)

47±2℃

Operating temperature

-40℃ to 85℃

Maximum system voltage

 1000V DC

Power tolerance

±3%

STC: lrradiance 1000W/m2,Module temperature 25℃,AM=1.5



FSM 500W solar panel with highest wattage

500w solar panel

Mono 96 cell 500w solar panel specification

Cell

 Mono solar cell

No. of cell and connection

96

Dimension of module

1956mm×1300mm×50mm

Weight

33kg

Specifications are subject to change without notice at any time.

Project case

1.2MW mono solar panels roof grid tie project

case-solar panels for house

case-solar panels for house

Factory Pictures

factory-500w solar panel

solar panels for house

package-solar panels for house

company-solar panels for house





We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
