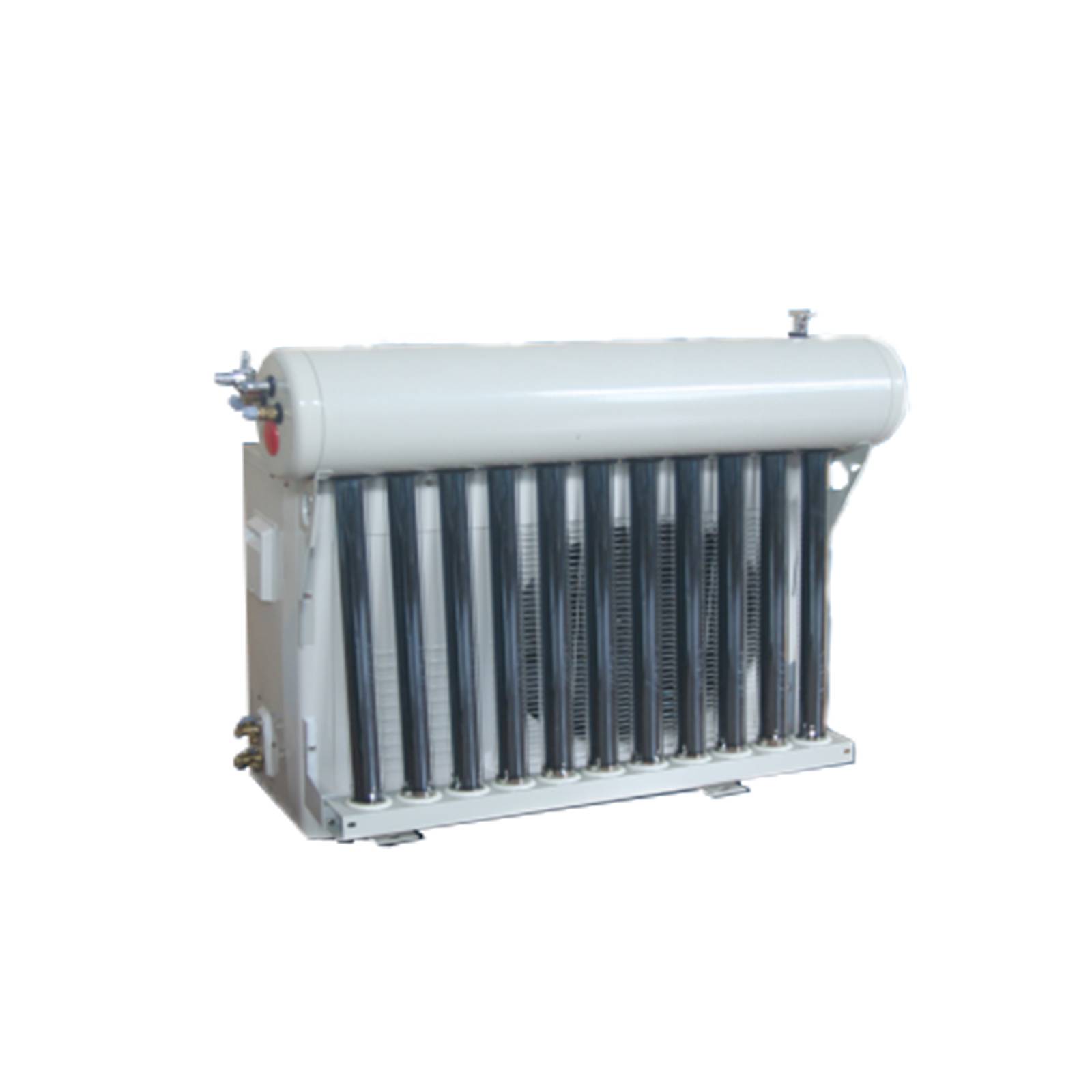

Hybrid vacuum tube solar air conditioner 9000BTU

Who we are? Tanfon is TOP 10 solar project solution factory in china Why Choose Tanfon Solar Air Conditioner? To save electricity consumption, save bill cost, what's more, to make a more clean environment. Air Conditioners Consumption

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON SOLAR

MOQ: 1 set

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

solar air conditioner

Who we are?

Tanfon is TOP 10 solar project solution factory in china

Why Choose Tanfon Solar Air Conditioner?

To save electricity consumption, save bill cost, what's more, to make a more clean environment.

Air Conditioners Consumption Comparison Testing

Product Description

Our solar air conditioner have the nanometre material filters, can kill the coronavirus in the room, can use for hostpital, classroom,office etc.

Capacity Cooling Btu/h 9000
W 2600
Heating Btu/h 10000
W 2900
Noise indoor dB(A) ≤40
outdoor dB(A) ≤50
Air Circulation m³/h 500
Suitable Area 11~17
EER W/W 3.84
Btu/h/w 12.42
Power Consumption
Power Input Cooling W 650~770
Heating W 650~780
Rated Current Cooling A 3.00~3.60
Heating A 3.00~3.65
Vacuum Tube Diameter*Length*Pcs 47mm*520mm*10
Dimensions
Indoor Unit Net mm 775*265*210
Shipping mm 840*325*265
Outdoor Unit Net mm 790*260*540
Shipping mm 910*370*610
Vacuum Tube Shipping mm 910*400*330
Weight
Indoor Unit Net/Gross kg 9/10.5
Outdoor Unit Net/Gross kg 31/34
Solar Collector Net/Gross kg 12/15
Loading Qty in 20feet sets 75
in 40HQ sets 175

Working principle



solar air conditioner

Hybrid solar air conditioner

* When the power on, the compressor start working, it compress the refrigerant from low pressure to high pressure, low temperature to high temperature, then discharge to heat exchanger of the solar collector


* In sunshine time ,the vaccum tube can absorb the sunshine to heat the water of the water tank, then the hot water will translate the heating to refrigerant by the exchanger, then help the compressor heat the tempeature and increase the pressure of the refigerant again,

so it just need use the small compressor driver the system running, just use the less power to cool or heat the room,to save more energy.

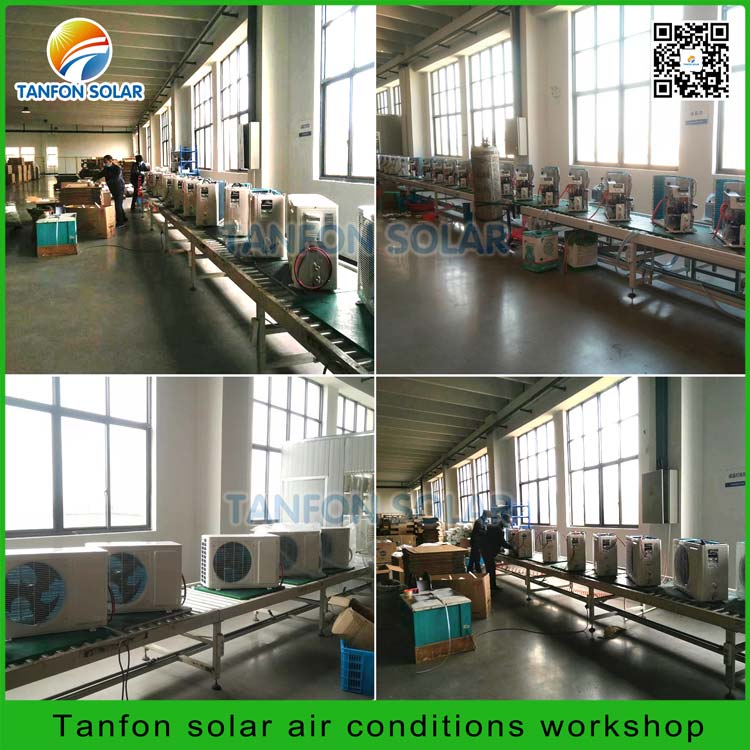

Workshop

solar air conditionersolar AC

Global Solar Exhibition

solar air conditioner

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

For more information, please send an inquiry or contact us directly.

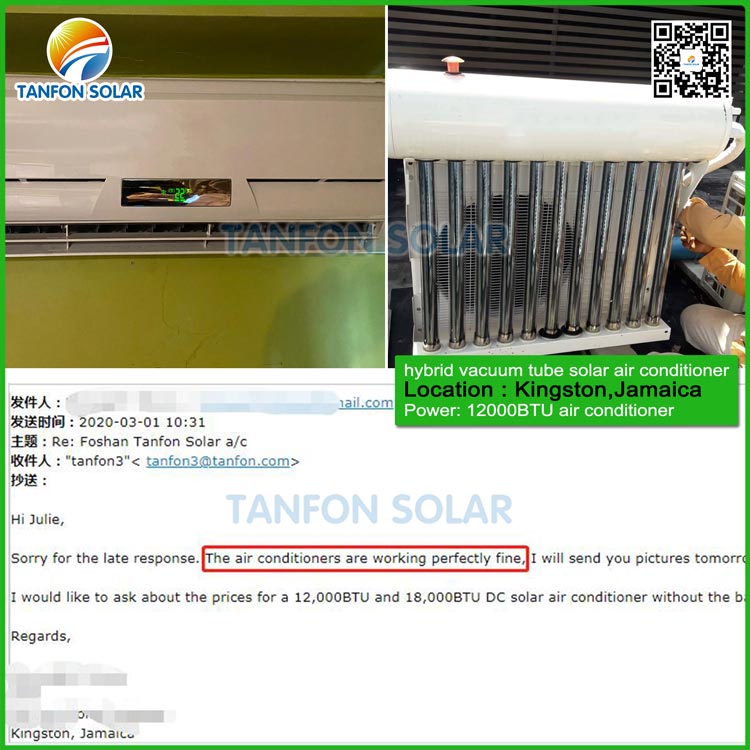

How do customers evaluate Tanfon products&service
