Tanfon MPPT solar charge controller Feature: (1) 12V / 24V / 36V /48V / 72V / 96V adjustable；and 220V or 360V(optional) (2) Advanced maximum power point track
Place Of Origin: Foshan, Guangdong Province, China
BrandName: TANFON
MOQ: 1 set,Accpet OEM &ODM
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service

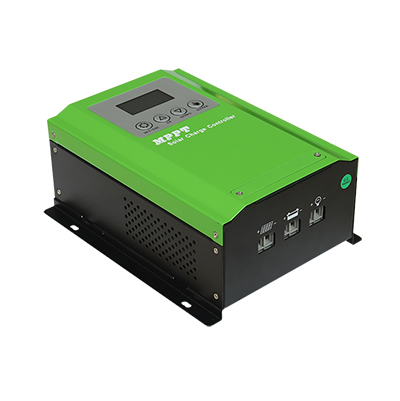

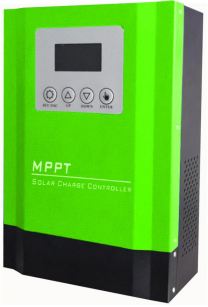

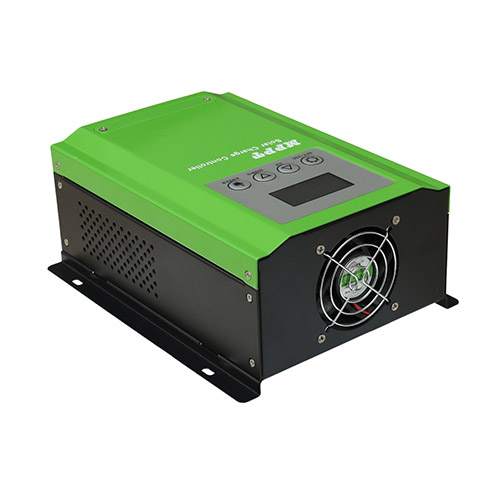

Tanfon MPPT solar charge controller
|
|
|
Feature:
(1) 12V / 24V / 36V /48V / 72V / 96V adjustable；and 220V or 360V(optional)
(2) Advanced maximum power point tracking technology to optimize using the solar system.
(3) Peak conversion efficiency of 97 %, high Tracking efficiency of 99%.
(4) Very fast sweeping of the entire I-V curve, several seconds tracking speed.
(5) Widely used, automatic recognize day/night.
(6) Timer function with 1-15 hours option for street light.
(7) Unique dual timer function, enhance the flexibility of street light system.
(8) Sealed, Gel and Flooded battery option.
(9) Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
(10) Electronic protection: over charging, over discharging, overload, short circuit.
(11) Reverse protection: any combination of solar module and battery, without causing damage to any component.
(12) Excellent thermal design and nature air cooling.
Specification:
|
|
|
|
| 12V/24V | 12v/24v/48v | 48v/96v |
|
Model |
20A |
30A |
40A |
50A |
60A |
|
|
charge mode |
Three phases: (MPPT) with constant current, constant voltage, floating |
|||||
|
overall efficiency |
12V/24V/36V/48V optional |
|||||
|
Input characteristics |
||||||
|
MPPT working voltage range |
12V 24V system DC34V-DC150V 36V 48V system DC65V-DC150 48V 60V system DC65V-DC170V 72V96V system DC85V-DC180V |
|||||
|
PV maximum open-circuit voltage input |
82V/82V/164V |
|||||
|
The largest solar panels power input |
12V system（W) |
240W |
360W |
480W |
600W |
720W |
|
24V system（W） |
480W |
720W |
960W |
1200W |
1440W |
|
|
48V system（W） |
960W |
1200W |
1700W |
2200W |
2800W |
|
|
charge characteristic |
||||||
|
Battery types |
12V/24V/48V system |
Sealed lead acid battery, discharge type pool, gel battery, nickel cadmium batteries ternary lithium battery lithium iron phosphate batteries (can also be customized for other kinds of battery) |
||||
|
Rate current |
12V/24V/48V system |
20A |
30A |
40A |
50A |
60A |
|
Product size length * width * height |
276*241*100mm |
|||||
|
N.W（kg) |
3 |
3 |
3 |
3 |
3 |
|
| Undervoltage shutdown | 10.2V(12VDC) | |||
| 10.2V(12VDC) | ||||
| 40.8V(48VDC) | ||||
| 81.6V(96VDC) | ||||
| Undervoltage recovery | 11.5V(12VDC) | |||
| 23V(24VDC) | ||||
| 46V(48VDC) | ||||
| 92V(96VDC) | ||||
| Float voltage | 13.5V(12VDC) | |||
| 27V(24VDC) | ||||
| 54V(48VDC) | ||||
| 108V(96VDC) | ||||
| Battery overcharge protection | 14.6V(12VDC) | |||
| 29.2V(24VDC) | ||||
| 58.4V(48VDC) | ||||
| 116.8V(96VDC) | ||||
|
Charging current |
50A-80A |
100A-120A |
50A-80A |
100A-120A |
|
Over temperature alarm |
75℃ |
|||
|
Over temperature recovery |
65℃ |
|||
|
size (MM) |
390*260*140 |
|||
|
Packing size(MM) |
470*355*205 |
|||
|
Weight（KG) |
10 |
11 |
10 |
11 |
