5kw off grid MPPT inverter, wall type solar hybrid inverter Tanfon wall type solar power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 6kw, other kinds inv
Place Of Origin: foshan
BrandName: TANFON SOLAR
MOQ: 5pcs
industry leading technology
uninterruptible power supply
online service

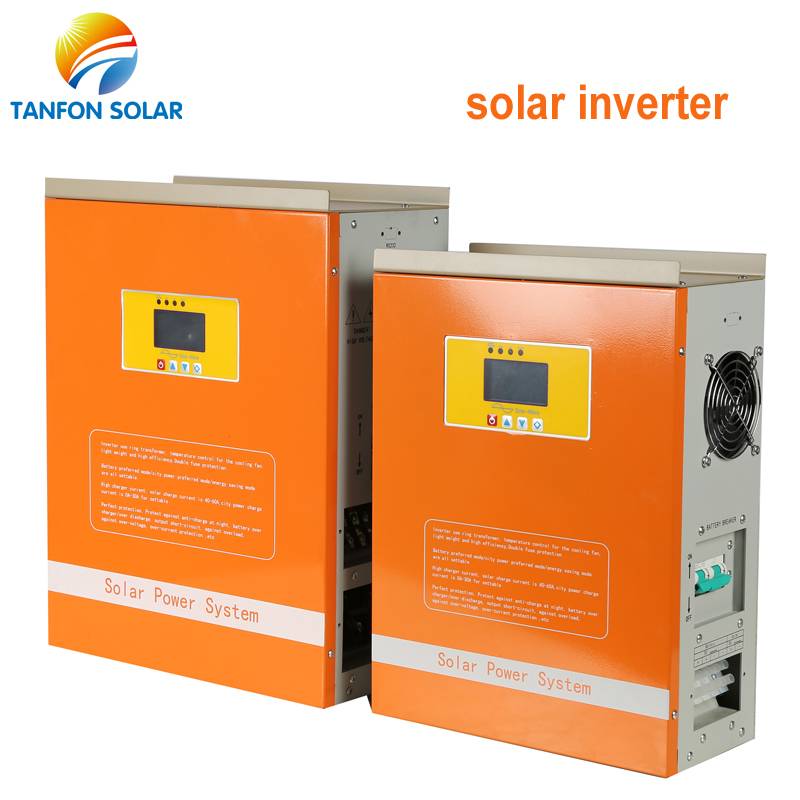

Tanfon wall type solar power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 6kw, other kinds inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.
what is wall-mounted pure sine wave inverter Feature?
| item | function |
| capacity |
TANFON inverter promise full KW capacity output, Have service evidence to choose us to be safer |
| DSP |
the whole series controlled by program of DSP intelligent chip |
| LCD |
The whole series with automatic AC charger and automatic AC mains switch function.Switch time within 5ms. |
|
Continuous Stable output voltage |
No matter how low or how high the AC input voltage is ,with voltage stabilizer our inverter provides standard 110v or 220v stable output ,which keeps the loading works stably.wide stabilizing range of AC input optional. |
|
Original imported MOS tube |
Brand new and imported U.S brand infineon IR MOSFETs are used for the whole series IR4768,IR3205,IR4310 |
| transformer |
Super load capacity:three times peak power of rate power |
| PCB |
Two layers PCB board:real isolated input and output,they will not influence each other during operating.such design is in order to improve the stability of the inverter,and it is easy to detect faults and maintain |
NW1KW to NW6KW pure sine wave inverter wall-installed type data sheet:
|
Model |
WSC1000W | WSC2000W | WSC3000W | WSC5000W | WSC6000W | |
|
Rated power(W) |
1000W | 2000W | 3000W | 5000W | 6000W | |
|
Rated DC voltage(V) |
24V | 48V | 48V | 48V | 48V | |
|
Line input |
Input voltage(V) |
145-280V, 90-127V |
||||
|
Charge current(A) |
10-30A |
|||||
|
Inverter output
|
Output voltage(V) |
110V or 220VAC±5% &5V,12V DC |
||||
|
Output frequency |
50Hz/60Hz±1% |
|||||
|
Wave form |
Pure Sine Wave, THD<4%(Full Load) |
|||||
|
Solar input |
Maximum voltage(V) |
42V or 88V or 176V |
||||
|
Rated power(Wp) |
1000W | 2000W | 3000W | 5000W | 6000W | |
| Solar Controller |
Charge current(A) | 60A | ||||
| MPPT range(V) | 24v(20-34)48v(40-68) | |||||
| Charging efficiency |
90%-95%, Peak on 97% |
|||||
| Other | Over charge protective voltage of battery(V) | 24V(27.4),48V(54.8) | ||||
| Over charge recover-voltage of battery(V) |
24V(27.4),48V(54.8) |
|||||
| Voltage drop between solar
module and battery(V) |
≤0.5V |
|||||
| Voltage drop between loads
and battery(V) |
≤0.25V |
|||||
| Start speed of cooling fan |
Have |
|||||
| Environment Humidity |
0-90% Maximum,non-condensable |
|||||
| Protective Functions | Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules | |||||
| Control method |
MPPT |
|||||
| Size &package size:D*W*H(mm) | 290*125*430mm | 355*185*470mm | ||||
| N.W&G.W(kg) | 20KG/23KG | 25KG/28K | 30KG/33KG | 32KG/35KG | ||
Application: solar hybrid inverter with solar controller built-in, use for home solar system,school ,farm etc.
Need more other power and type design inverter, please send inquiry to us, we will reply as soon as possible within 12 hours.
Why Choose TANFON Products?
1.Sample service:Applicable to quality test,function test etc
2.Repair service:Two year warranty
3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .
4.ODM service:Powerful R&D department can provide professional technical support
5.OEM services:More than 100 pieces ,you can decide the trademark and package
6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.
welcome to Get more Our Thailand factory Test report feedback
Customer Feedback
Our Factory Pictures
Customer Visiting
FAQ
Q1.Are you factory?
A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.
Q2.All products have a warranty?
A2.YES, All products are at least 2 years warranty.
Q3.What is the shipping way?
A3.DHL, UPS, TNT, EMS, FedEx, Ship by sea.
Q4. What is the payment method?
A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/MoneyGram/Alibaba can also be used.
Q5.Can we design packaing?
A5.YES. We can customer's own packing
Q6.Can we add our logo on products?
A6.YES.you can add your logo on products.
Q7.Can we customize product?
A7.YES.OEM&ODM.
Q8.Are there some optional function for your inverter?
A8.Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.
Q9.what is TANFON inverter after sales service
A9.during the warranty ,ship free PCB by DHL or FEDEX.
check more service case,you will know more about TANFON.
Q10.what is your trade Asusurance
A10:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
