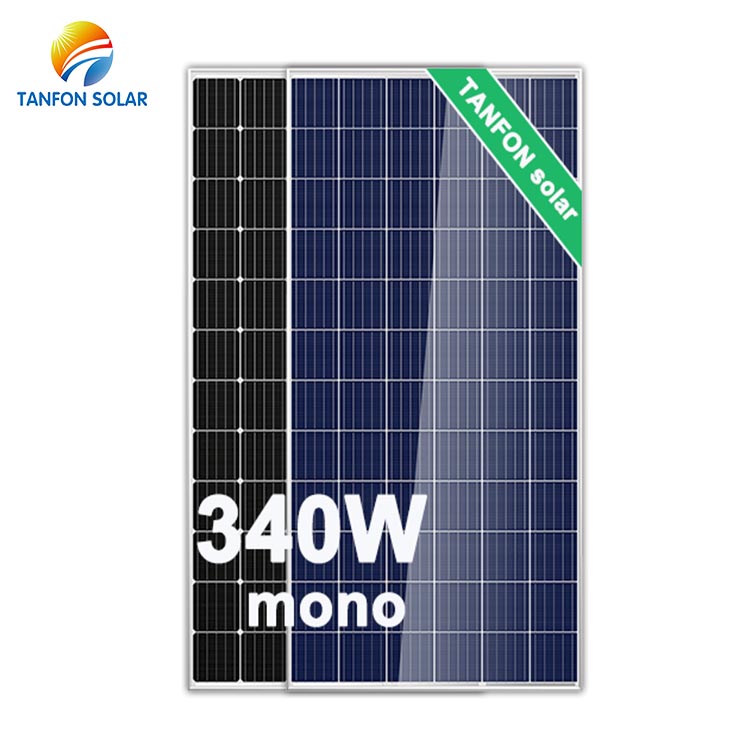

Top 1 A Grade Polycrystalline 300W-340W Solar Panel

Why Choose Tanfon?   Quality: Each set solar power system has tested by power-off test of 100 times per hour. Service: Pre-sale: Have been served for 120 countries professional teams will free to hle

Place Of Origin: Foshan, Guangdong Province, China

BrandName: TANFON

MOQ: 1 set,Accpet OEM &ODM

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service

Mono solar panel

Why Choose Tanfon?



Quality:

Service:

Efficiency:







360 watt solar pv panel Features

1) Nominal 24V DC for standard output.

2) High efficiency.

3) Outstanding low-light performance.

4) High transmission tempered glass.

5) Rugged design to withstands high wind pressure and snow load, easy installation.

6) Aesthetic appearance.

7) Design to meet unique demand of customer.

8) 25 year module output warranty.

Solar pv panels 360 watts characteristics
STC: lrradiance 1000W/m2, Module temperature 25℃, AM=1.5
Module Type FS330-24v
Maximum power at STC(Pmax)  330W
Optimum operating voltage(Vmp) 37.57V
Optimum operating current(Imp) 8.78A
Open-circuit voltage(Voc) 46.34V
Short-circuit current(Isc) 10.72A
Short-circuit current temperature coefficient (0.065±0.015)%/℃
Open-circuit voltage temperature coefficient   -(80±10)mV/℃
Peak power temperature coefficient -(0.5±0.05)%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)    47±2℃
Operating temperature     -40℃ to 85℃
Maximum system voltage 600V DC
Power tolerance  ±3%
Size 1956*992*40mm



360 watt solar panel with highest wattage

 solar pv



solar panel produce

360 watt solar pv panels rack supply:

Slope Roof,  Flat roof or Ground (optional), various material roof panel rack can be suppiled.

Structure: Anodized Aluminum and Stainless Steel.

Including complete fittings.

wind load: 55m/s, snow load: 1.5kn/m²

solar pv panels roof rack

1.2MW mono solar pv panel roof grid tie project

solar pv panels 1.2M system

solar pv

Solar pv panel Factory Pictures

solar pv

solar pv

solar pv package

solar pv company





We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
