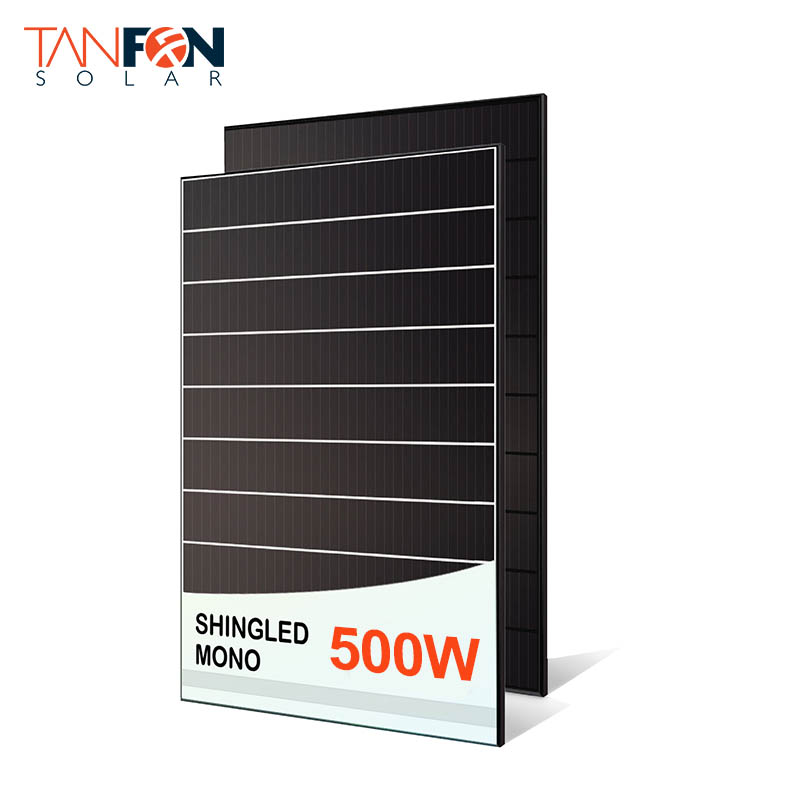

TFL-210X30_10_36 Maximum Power-Pm [W] 500W Open Circuit Voltage-Voc [V] 49.42 Short Circuit Current-Isc [A]
Place Of Origin: Foshan, Guangdong Province, China
BrandName: Tanfon Solar
MOQ: 100 set,Accpet OEM &ODM
Certificate: TUV, ETL, ISO, CE, RoHS
Payment: T/T, L/C, Paypal, Western Union
industry leading technology
uninterruptible power supply
online service
TFL-210X30_10_36 |
|
---|---|
Maximum Power-Pm [W] |
500W |
Open Circuit Voltage-Voc [V] |
49.42 |
Short Circuit Current-Isc [A] |
12.82 |
Maximum Power Voltage-Vm [V] |
41.18 |
Maximum Power Current-Im [A] |
12.14 |
Module Efficiency-η [%] |
21.45 |
NOTE:
1. Standard Test Conditions [STC]: irradiance 1000 W/m²; AM 1.5;ambient temperature 25℃ according to EN 60904-3;
2. Nominal Module Operating Temperature (NMOT): Irradiance 800W/ m²; wind speed 1m/s ; ambient temperature 20℃
3. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.
Mechanical Characteristics |
||
---|---|---|
Dimensions |
2090×1106×35mm (L×W×H) |
|
Weight |
25.6kg |
|
Front Glass |
White toughened safety glass, 3.2mm |
|
Cells |
210*210 PERC solar cells |
|
Back Sheet |
high weatherability backsheet |
|
Frame |
Anodized aluminum profile |
|
Junction Box |
IP68,TUV,two diodes |
|
Cable |
Length 1200mm, 1×4mm² |
|
Connector |
Compatible with MC4 |
|
Package |
||
Container |
40’GP |
|
Number of pallets per container |
22 |
|
Number of modules per ontainer |
600 |
Temperature Characteristics |
||
---|---|---|
NMOT |
42.3℃(±2) |
|
Temperature Coefficient of Voc |
-0.27%/℃ |
|
Temperature Coefficient of Isc |
0.04%/℃ |
|
Temperature Coefficient of Pm |
-0.34%/℃ |
|
Maximum Ratings |
||
Maximum System Voltage [V] |
DC 1500IEC) |
|
Series Fuse Rating [A] |
20 |
|
Maximum Surface Load Capacity [Pa] |
5,400 |
|
Temperature Range [°C] |
– 40~+ 85 |
|
Withstanding Hail |
Maximum diameter of 25 mm with impact speed of 23 m/s |
