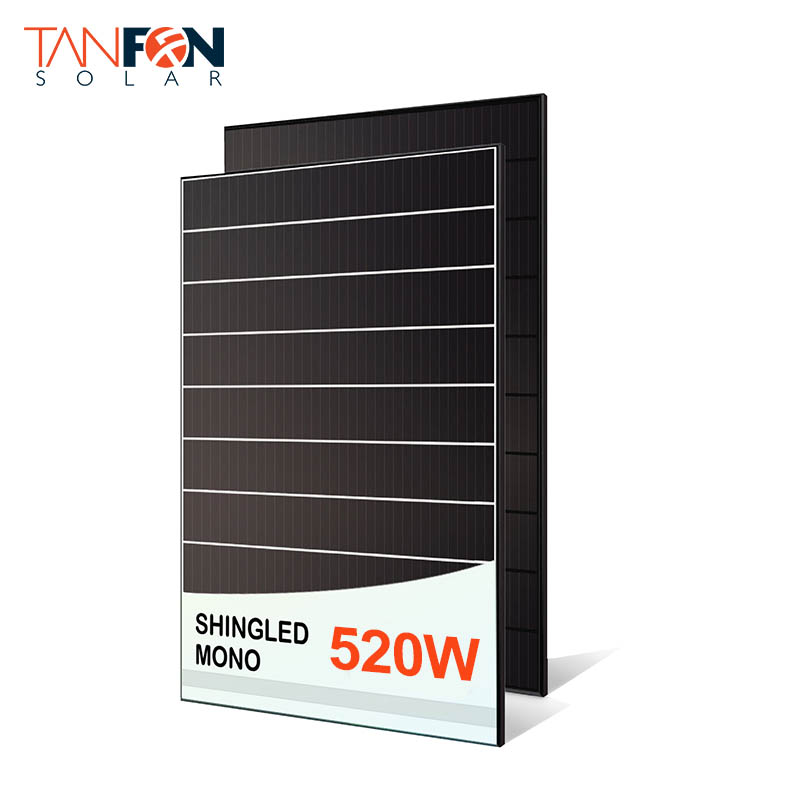

520W Solar Panel TFL Series_Solar Panel_TANFON solar power system, solar panel inverter, solar home system factory

NOTE:

1. Standard Test Conditions [STC]: irradiance 1000 W/m²; AM 1.5；ambient temperature 25℃ according to EN 60904-3;

2. Nominal Module Operating Temperature (NMOT): Irradiance 800W/ m²; wind speed 1m/s ; ambient temperature 20℃

3. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.

Mechanical Characteristics
Dimensions	2239×1042×35mm (L×W×H)
Weight	27.4kg
Front Glass	White toughened safety glass, 3.2mm
Cells	210*210 PERC solar cells
Back Sheet	high weatherability backsheet
Frame	Anodized aluminum profile
Junction Box	IP68,TUV,two diodes
Cable	Length 1200mm, 1×4mm²
Connector	Compatible with MC4
Package
Container		40’GP
Number of pallets per container		22
Number of modules per ontainer		600

Temperature Characteristics
NMOT		42.3℃(±2)
Temperature Coefficient of Voc		-0.27%/℃
Temperature Coefficient of Isc		0.04%/℃
Temperature Coefficient of Pm		-0.34%/℃
Maximum Ratings
Maximum System Voltage [V]		DC 1500IEC)
Series Fuse Rating [A]		20
Maximum Surface Load Capacity [Pa]		5,400
Temperature Range [°C]		– 40~+ 85
Withstanding Hail		Maximum diameter of 25 mm with impact speed of 23 m/s

Why Choose Tanfon?

Quality:

Each set solar power system has tested by power-off test of 100 times per hour.

Service:

Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
Selling: Three days per time of follow-up services, video inspection.
After sales: Engineer can be on-site installation service.

Efficiency:

Project design solution will send to you quickly within 1 hour
The fastest will be shipped in 7 days
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
