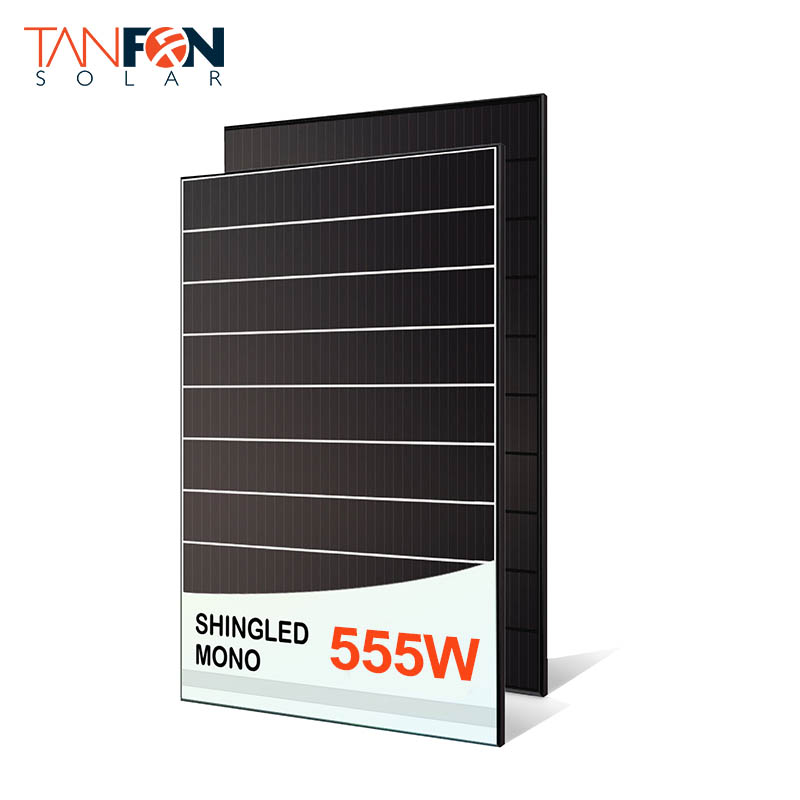

555W Solar Panel TFL Series

    TFL-210X30_10_36 Maximum Power-Pm [W] 555W Open Circuit Voltage-Voc [V] 48.081 Short Circuit Current-Isc [A]

Place Of Origin: Foshan, Guangdong Province, China

BrandName: Tanfon Solar

MOQ: 100 set,Accpet OEM &ODM

Certificate: TUV, ETL, ISO, CE, RoHS

Payment: T/T, L/C, Paypal, Western Union

TANFON Solar Manufacturer since 2007, PERC, Half, MONO, POLY, EU, US quality standard certification, Serving 160 countries. Get Quote Now.

15 years

industry leading technology

24 hours

uninterruptible power supply

0 distance

online service





TFL-210X30_10_36

Maximum Power-Pm [W]

555W

Open Circuit Voltage-Voc [V]

48.081

Short Circuit Current-Isc [A]

14.690

Maximum Power Voltage-Vm [V]

39.50

Maximum Power Current-Im [A]

14.05

Module Efficiency-η [%]

21.88



NOTE:

1. Standard Test Conditions [STC]: irradiance 1000 W/m²; AM 1.5;ambient temperature 25℃ according to EN 60904-3;

2. Nominal Module Operating Temperature (NMOT): Irradiance 800W/ m²; wind speed 1m/s ; ambient temperature 20℃

3. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.



Mechanical Characteristics

Dimensions

2239×1042×35mm (L×W×H)

Weight

27.4kg

Front Glass

White toughened safety glass, 3.2mm

Cells

210*210 PERC solar cells

Back Sheet

high weatherability backsheet

Frame

Anodized aluminum profile

Junction Box

IP68,TUV,two diodes

Cable

Length 1200mm, 1×4mm²

Connector

Compatible with MC4

Package

Container

40’GP

Number of pallets per container

22

Number of modules per ontainer

600



Temperature Characteristics

NMOT

42.3℃(±2)

Temperature Coefficient of Voc

-0.27%/℃

Temperature Coefficient of Isc

0.04%/℃

Temperature Coefficient of Pm

-0.34%/℃

Maximum Ratings

Maximum System Voltage [V]

DC 1500IEC)

Series Fuse Rating [A]

20

Maximum Surface Load Capacity [Pa]

5,400

Temperature Range [°C]

– 40~+ 85

Withstanding Hail

Maximum diameter of 25 mm with

impact speed of 23 m/s



Why Choose Tanfon?

Quality:

Service:

Efficiency:





 solar pv



solar panel produce



solar pv panels roof rack





solar pv

Solar pv panel Factory Pictures

solar pv



solar pv package



We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
