Top 10 Solar Project Solution Factory In China
Why buy a solar system? Not only because diesel generators are expensive, but more importantly, because there are parents and children at home. The noise of diesel generators makes it difficult for people to rest. Solar power generation is quiet and can really give the family a quiet environment.

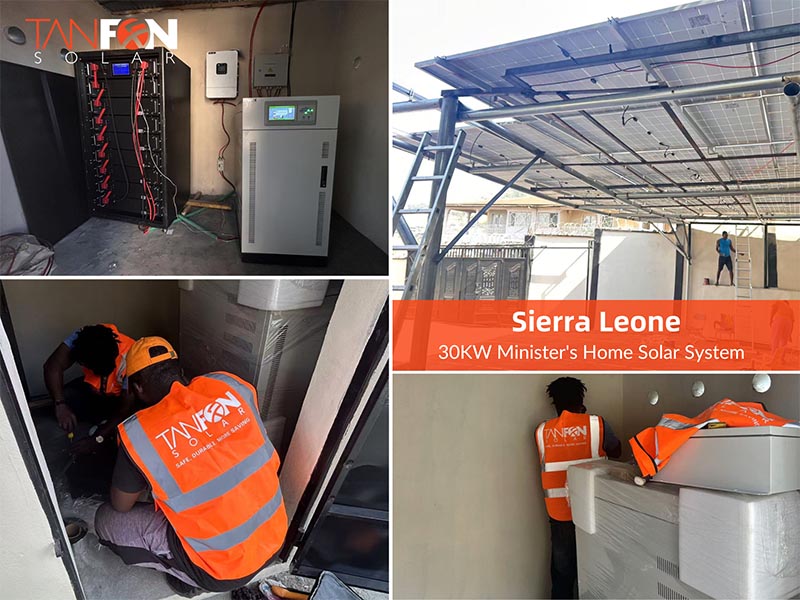

The Minister has 8 air conditioners at home, but only 5 are started at the same time;
There are also refrigerators, water pumps, TVs, 5 water heaters, 2 freezers and other loads;
Because he wants 100% of the power to come from solar energy, he chose a 30KW off grid solar system.
When there is a power outage, are you often troubled by the lack of electricity? Our TANFON off grid solar system allows you to have electricity available at any time and enjoy uninterrupted power!
| TANFON TSP-30KW solar system | Daily power generation: <187.2KWH Battery Bank Storage:76.8KWH Allowable max loads power : 30KW |
Qty |
| Solar panel | TFD600W half cell PERC solar panel(LonGi N type TopCon Solar Cell) Vmp: 43.44V Voc: 51.54V Imp: 13.81A Isc:14.50A Efficiency: 23.22% Size: 2279*1134*30MM Strong anti-cracking advantage 25 years product warranty Connect way :each 13pcs in series. |
52pcs |
| PV combiner | Model:H4T-384V Multiple PV strings inputs and controller Prevent hot spot effect Reliable thunderstorm& surge protection Product Size:400*425*145mm max circuit voltage: 1000V warranty:3 years |
1pcs |
| Mppt Controller | Real MPPT PV controller model:384V/100A MPPT efficiency; >99.9%, Max input voltage :800V various protection functions; Size:500*384*228mm ,weight:27KG warranty:3 years |
1pcs |
| Three phase inverter | Safety IGBT inverter :T30KW384VDC DC voltage :360V-438V Ouput voltage:220v/380v/415v 50hz or 60HZ German 5S technology IGBT Stronger for motor loads 360° guarantee Two-way flame retardant protection Same as government project quality . Size:785*580*1197mm weight:400KG With IOT extend warranty:5 years |
1pc |
| Lithium battery | Model number: TFES-S384200 Voltage: 384V Capacity: 200AH Nominal capacity: 76.8KWh safety discharge current:200A Cycle life: 6000 Material: BYD battery cells Size:825*612*1120mm weight:684KG Latest technical advantages:Input and output are completely isolated, no leakage, constant current and constant voltage output function,Lightning protection, safe and reliable. With IOT extend warranty:10 years |
1set |
| Panel rack | Slope Rooftop /Flat rooftop/ground wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable (other type of rack can be customized as per client’s requirement ) |
1set |
| Cables | 1)Battery to inverter cable 16mm2*3M*2pcs 2)PV combiner to MPPT cable 16mm2*5M*4pcs 3)4mm2 PV cable 400M, (black+ red) 4)1set MC4 Tools 5)3sets cable terminals and MC4 |
1set |
| Wooden box | Solar panel Wooden box packing | 2pc |
| Full set solar system | Total Volume:8.5cbm/weight:2840kg | |
The King of the Democratic Republic of the Congo has provided a solar energy storage power station system for the village of Bunkeya to meet the electricity needs of 2500 small households in the village. As the village currently lacks access to the grid, the King requested the design of a 1MW solar panel system paired with a 1.8MWh lithium battery storage system to power the entire village.
